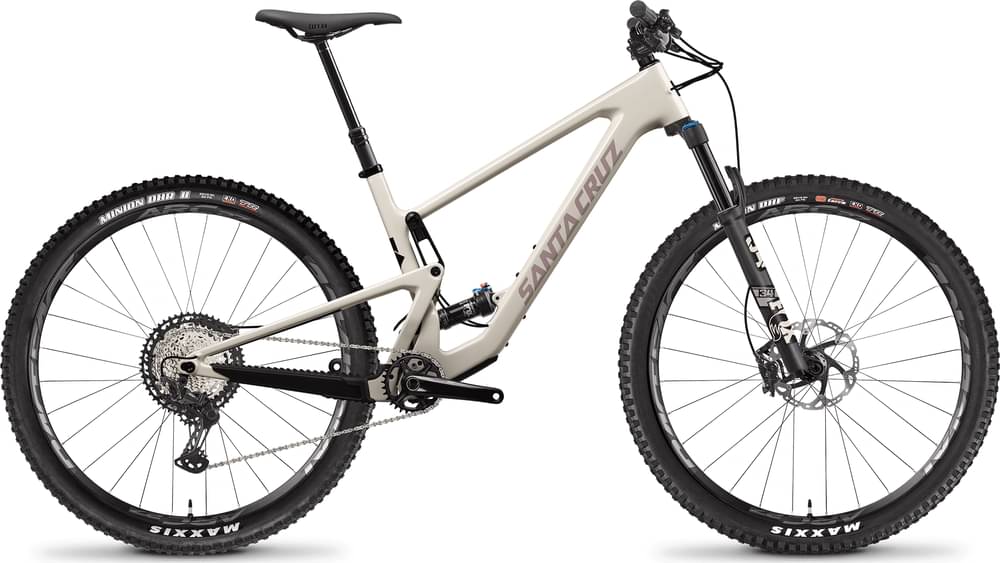

Santa Cruz Tallboy XT / Carbon C / 29 2021
2021 Mountain
Estimate price |
6,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Performance Elite Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS High
142cm - 156cm
XS Low
142cm - 156cm
SM High
153cm - 167cm
SM Low
153cm - 167cm
MD High
164cm - 177cm
MD Low
164cm - 177cm
LG High
174cm - 187cm
LG Low
174cm - 187cm
XL High
184cm - 194cm
XL Low
184cm - 194cm
XXL High
192cm - 200cm
XXL Low
192cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Tallboy XT / Carbon C / 29
Suspension Fork
FOX 34 Performance Elite, Grip2, 130mm, 29"
Rear Shock
FOX Float Performance Elite DPS
Drivetrain
Rear Derailleur
Shimano XT M8100, 12spd
Shift Levers
Shimano XT M8100, 12spd
Cassette
Shimano XT M8100, 12spd, 10-51t
Crank
Shimano XT M8100, 32t
Bottom Bracket
Shimano XT 68/73mm
Chain
Shimano XT, 12spd
Wheels
Front Hub
DT Swiss 350, 15x110, 28h
Rear Hub
DT 350, 12x148, MicroSpline, 28h
Rims
RaceFace AR Offset 27 29"
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHF, 29"x2.3", 3C EXO TR, Rear: Maxxis Minion DHR II 29"x2.3" EXO TR
Brakes
Brakes
Shimano XT 8120
Disk Rotors
Shimano XT RT-86, Ice Tech, 180mm
Cockpit
Stem
Burgtec Enduro MK3
Handlebar
Santa Cruz Bicycles Carbon Riser
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 40 IS Integrated
Seat
Saddle
WTB Silverado Team
Seatpost
RockShox Reverb Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.41 mm | 1.42 mm | 1.35 mm | 1.36 mm | 1.31 mm | 1.32 mm | 1.3 mm | 1.31 mm | 1.27 mm | 1.28 mm |
| Bottom Bracket Height | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm | 335 mm | 332 mm |
| Front Center | 699 mm | 698 mm | 728 mm | 727 mm | 757 mm | 757 mm | 781 mm | 781 mm | 809 mm | 809 mm | 842 mm | 842 mm |
| Rake | 46 mm | 46 mm | 46 mm | 45 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 119 mm | 120 mm | 119 mm | 121 mm | 119 mm | 120 mm | 119 mm | 120 mm | 119 mm | 120 mm | 120 mm | 120 mm |
| Stack | 596 mm | 597 mm | 605 mm | 607 mm | 614 mm | 616 mm | 623 mm | 625 mm | 641 mm | 643 mm | 660 mm | 661 mm |
| Reach | 404 mm | 402 mm | 429 mm | 427 mm | 454 mm | 452 mm | 474 mm | 472 mm | 494 mm | 492 mm | 519 mm | 517 mm |
| Top Tube Length | 543 mm | 544 mm | 571 mm | 572 mm | 600 mm | 601 mm | 623 mm | 626 mm | 650 | 651 mm | 682 mm | 683 mm |
| Seat Tube Angle | 76.8 ° | 76.5 ° | 76.7 ° | 76.4 ° | 76.6 ° | 76.3 ° | 76.4 ° | 76.2 ° | 76.2 ° | 76 ° | 76 ° | 75.8 ° |
| Seat Tube Length | 370 mm | 370 mm | 380 mm | 380 mm | 405 mm | 405 mm | 430 mm | 430 mm | 460 mm | 460 mm | 500 mm | 500 mm |
| Head Tube Angle | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° | 65.7 ° | 65.5 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm | 140 mm | 140 mm | 160 mm | 160 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1133 mm | 1132 mm | 1162 mm | 1161 mm | 1191 mm | 1191 mm | 1215 mm | 1215 mm | 1243 mm | 1243 mm | 1276 mm | 1276 mm |
| Bottom Bracket Drop | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm | 38 mm | 41 mm |
| Standover Height | 685 mm | 682 mm | 700 | 696 mm | 712 mm | 708 mm | 710 mm | 707 mm | 706 mm | 702 mm | 706 mm | 702 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 142 cm | 142 cm | 153 cm | 153 cm | 164 cm | 164 cm | 174 cm | 174 cm | 184 cm | 184 cm | 192 cm | 192 cm |
| Rider Max Height | 156 cm | 156 cm | 167 cm | 167 cm | 177 cm | 177 cm | 187 cm | 187 cm | 194 cm | 194 cm | 200 cm | 200 cm |
About this model
Tallboy XT / Carbon C / 29 is a Santacruz Tallboy model. Santa Cruz released 64 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Santa Cruz Tallboy D / Aluminum / 29 2021 is the cheapest bike model and costs 3099$. Santa Cruz Tallboy XX1 RSV / Carbon CC / 29 2021 is the most expensive one and costs 11549$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Santa Cruz Tallboy XT / Carbon C / 29 price was 6599$. Comparing the average cost of a Trail bike to this one, you will see that Tallboy XT / Carbon C / 29 price is 138.92% higher.
Tallboy XT / Carbon C / 29 components
Fork
Santa Cruz Tallboy XT / Carbon C / 29 2021 bike is equipped with the Fox Performance Elite Float 34 fork, and has 130mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the FOX Float Performance Elite DPS rear shock model, which has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When it comes to wheels, the Tallboy XT / Carbon C / 29 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Tallboy XT / Carbon C / 29 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 12 sizes available for this model. Rider height can be anywhere between 142 cm – 200 cm (4.66 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Santa Cruz Tallboy XT / Carbon C / 29 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
