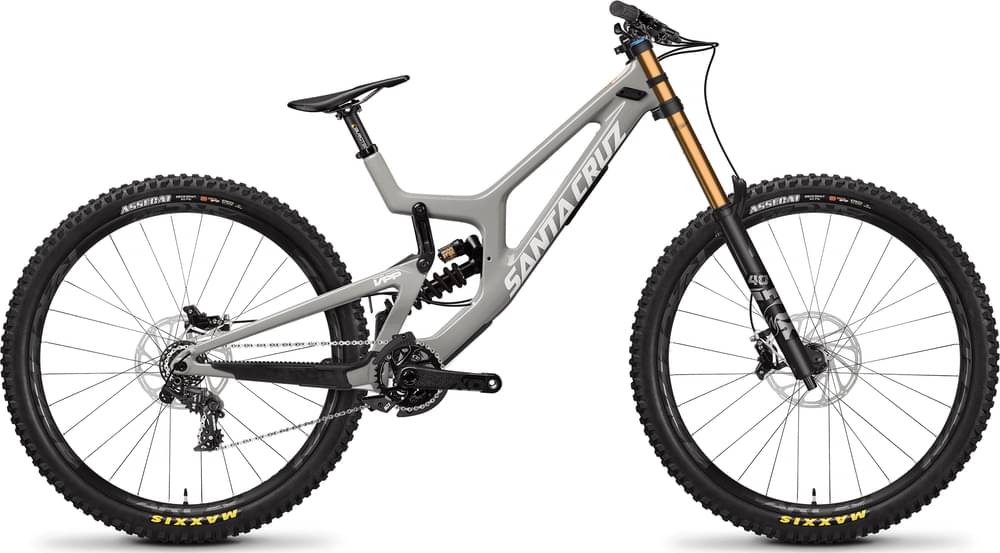

Santa Cruz V10 DH X01 / Carbon CC / 29 2021
2021 Mountain
Estimate price |
8,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 203mm -
Travel Rear 215mm -
Fork Fox Factory Float 40
-
Groupset X01 -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD Low
170cm - 177cm
MD High
170cm - 177cm
LG Low
175cm - 187cm
LG High
175cm - 187cm
XL Low
184cm - 195cm
XL High
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
V10 DH X01 / Carbon CC / 29
Suspension Fork
Fox 40 Factory, 203mm, 29"
Rear Shock
Fox DHX2 Factory Coil
Drivetrain
Rear Derailleur
SRAM X01 DH, 7spd
Shift Levers
SRAM X01 DH
Cassette
SRAM X01 DH, 7spd
Crank
SRAM X01 DH, DUB 83, 165mm, 34t
Bottom Bracket
SRAM DUB 83mm
Chain
SRAM XX1, 11spd
Chain Guide
E13 LG1+
Wheels
Front Hub
DT Swiss 350, 20x110, Boost, 32h
Rear Hub
DT Swiss 350 ISO, 12x157, HG, 32h
Rims
RaceFace ARC HD 30 29"
Spokes
Sapim Race
Tires
Front: Maxxis Assegai 29"x2.5", 3C, MaxxGRIP, Rear: Maxxis Assegai 29"x2.5", 3C, MaxxGRIP
Brakes
Brakes
SRAM Code RSC
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Santa Cruz Direct Mount
Handlebar
Santa Cruz Bicycles Carbon Riser
Grips
Burgtec Bartender Pro Grip Minnar
Headset
Cane Creek 40 Hellbender, ZS49 upper/ EC49 lower
Seat
Saddle
Fizik Alpaca Gravita X5
Seatpost
Burgtec Xpress Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD Low | MD High | LG Low | LG High | XL Low | XL High |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.45 mm | 1.39 mm | 1.38 mm | 1.31 mm | 1.31 mm |
| Bottom Bracket Height | 351 mm | 356 mm | 351 mm | 356 mm | 351 mm | 356 mm |
| Front Center | 806 mm | 806 mm | 833 mm | 833 mm | 865 mm | 865 mm |
| Rake | 59 mm | 58 mm | 59 mm | 58 mm | 58 mm | 58 mm |
| Trail | 122 mm | 120 mm | 122 mm | 120 mm | 123 mm | 120 mm |
| Stack | 625 mm | 626 mm | 629 mm | 631 mm | 634 mm | 635 mm |
| Reach | 429 mm | 431 mm | 454 mm | 456 mm | 484 mm | 486 mm |
| Seat Tube Length | 445 mm | 445 mm | 455 mm | 455 mm | 465 mm | 465 mm |
| Head Tube Angle | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° |
| Head Tube Length | 100 mm | 100 mm | 105 mm | 105 mm | 110 mm | 110 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 444 mm | 444 mm |
| Wheelbase | 1246 mm | 1245 mm | 1273 mm | 1272 mm | 1310 mm | 1309 mm |
| Bottom Bracket Drop | 21 mm | 16 mm | 21 mm | 16 mm | 21 mm | 16 mm |
| Standover Height | 707 mm | 712 mm | 708 mm | 713 mm | 708 mm | 713 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 170 cm | 170 cm | 175 cm | 175 cm | 184 cm | 184 cm |
| Rider Max Height | 177 cm | 177 cm | 187 cm | 187 cm | 195 cm | 195 cm |
Model Overview
V10 DH X01 / Carbon CC / 29 completes the Santacruz V10 model. There are 36 bikes that carry this model name. Take a sneak peek at all Santacruz V10 bikes models from 2021, by clicking here.
Model range prices
Santa Cruz V10 DH S / Carbon CC / 29 2021 is the cheapest bike model and costs 6599$. Santa Cruz V10 DH X01 / Carbon CC / MX 2021 is the most expensive one and costs 8799$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Downhill bikes average price
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2021 and its price was 8799$. Comparing the average cost of a Downhill bike to this one, you will see that V10 DH X01 / Carbon CC / 29 price is 159.48% higher.
V10 DH X01 / Carbon CC / 29 components
Fork
Santa Cruz V10 DH X01 / Carbon CC / 29 2021 bike is equipped with the Fox Factory Float 40 fork, and has 203mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Fox DHX2 Factory Coil rear shock model, which has a travel of 215mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The V10 DH X01 / Carbon CC / 29 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz V10 DH X01 / Carbon CC / 29 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
V10 DH X01 / Carbon CC / 29 comes in 6 sizes, that range from 170 cm – 195 cm (5.58 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
