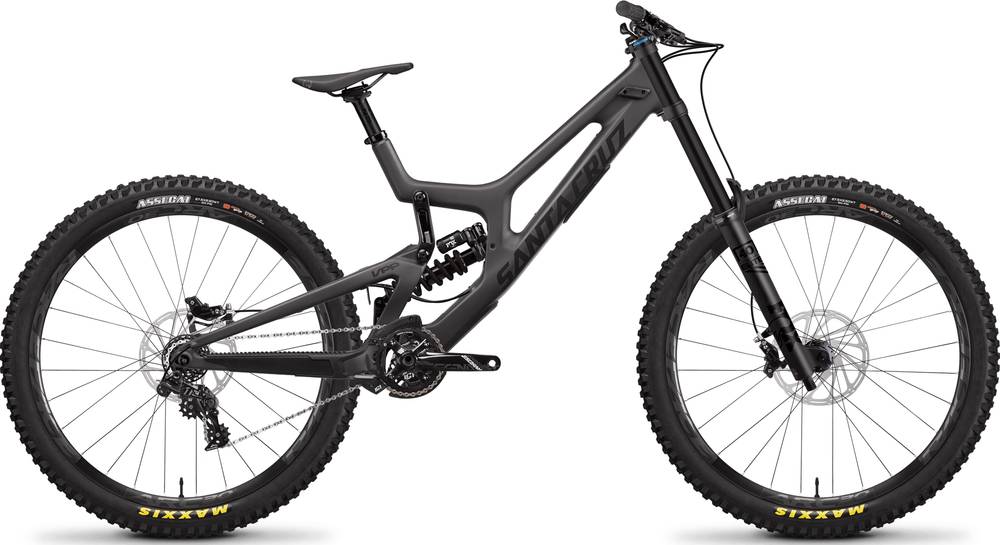

Santa Cruz V10 S / Carbon CC / 27.5 2019
2019 Mountain
Estimate price |
5,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 215mm -
Fork Fox Performance Elite Float 40
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Low
154cm - 167cm
SM High
154cm - 167cm
MD Low
170cm - 177cm
MD High
170cm - 177cm
LG Low
175cm - 185cm
LG High
175cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
V10 S / Carbon CC / 27.5
Suspension Fork
FOX 40 Performance Elite, 203mm, 27.5"
Rear Shock
FOX DHX2 Performance Elite Coil 400 (S) 450 (M) 500 (L)
Drivetrain
Rear Derailleur
SRAM GX DH 7spd
Shift Levers
SRAM GX 7SPD
Cassette
SRAM PG720 DH 11-25T
Crank
SRAM Descendant DH, 165mm, 36t
Bottom Bracket
BB GXP XR MTB83
Chain
SRAM PC1110
Chain Guide
E13 LG1+
Wheels
Front Hub
DT 350 20x110 32H
Rear Hub
DT 350 12x157 HG 32H
Rims
Race Face ARC HD 30 27.5" Rims
Spokes
DT Competition (32)
Tires
Front: Maxxis Assegai 27.5x2.5 MaxxGRIP 3C, Rear: Maxxis Assegai 27.5x2.5 MaxxGRIP 3C
Brakes
Brakes
SRAM Code R
Disk Rotors
Avid Centerline, 203mm Front, 200mm Rear
Cockpit
Stem
Santa Cruz Direct Mount 35x45/50
Handlebar
Burgtec RideWide DH Alloy Bar
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 40 Hellbender, ZS49 upper/ EC49 lower
Seat
Saddle
Ergon SMD20 Comp
Seatpost
Race Face Chester 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | SM High | MD Low | MD High | LG Low | LG High |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.46 mm | 1.4 mm | 1.4 mm | 1.34 mm | 1.33 mm |
| Bottom Bracket Height | 351 mm | 356 mm | 351 mm | 356 mm | 351 mm | 356 mm |
| Front Center | 769 mm | 769 mm | 798 mm | 798 mm | 825 mm | 825 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 121 mm | 118 mm | 121 mm | 118 mm | 121 mm | 118 mm |
| Stack | 603 mm | 604 mm | 611 mm | 613 mm | 616 mm | 617 mm |
| Reach | 411 mm | 413 mm | 436 mm | 438 mm | 461 mm | 463 mm |
| Seat Tube Length | 435 mm | 435 mm | 445 mm | 445 mm | 455 mm | 455 mm |
| Head Tube Angle | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 115 mm | 115 mm |
| Chainstay Length | 431 mm | 431 mm | 436 mm | 436 mm | 441 mm | 441 mm |
| Wheelbase | 1201 mm | 1200 mm | 1235 mm | 1234 mm | 1267 mm | 1266 mm |
| Bottom Bracket Drop | 3 mm | -2 mm | 3 mm | -2 mm | 3 mm | -2 mm |
| Standover Height | 708 mm | 713 mm | 708 mm | 713 mm | 708 mm | 713 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 154 cm | 170 cm | 170 cm | 175 cm | 175 cm |
| Rider Max Height | 167 cm | 167 cm | 177 cm | 177 cm | 185 cm | 185 cm |
About this model
V10 S / Carbon CC / 27.5 belongs to the Santacruz V10 model. Santa Cruz launched 36 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Santa Cruz V10 S / Carbon CC / 29 2019 is the most affordable bike of this model and has a price of 5999$. On the other hand, Santa Cruz V10 X01 / Carbon CC / 27.5 2019, is the most expensive and costs 8299$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Downhill bikes
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Santa Cruz V10 S / Carbon CC / 27.5 price was 5999$. Doing a quick comparison, we notice that V10 S / Carbon CC / 27.5 price is 76.91% higher than the average cost of a Downhill bike.
Overview of components
Fork
The Fox Performance Elite Float 40 is included from the factory. It has a travel distance of 203mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Santa Cruz V10 S / Carbon CC / 27.5 bike has the FOX DHX2 Performance Elite Coil 400 (S) 450 (M) 500 (L) model installed, and has a travel of 215mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on V10 S / Carbon CC / 27.5 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The V10 S / Carbon CC / 27.5 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Santa Cruz V10 S / Carbon CC / 27.5 bike has 6 sizes, in the range of 154 cm – 185 cm (5.05 ft – 6.07 ft). In conclusion, you won’t have a problem finding one that suits you.
