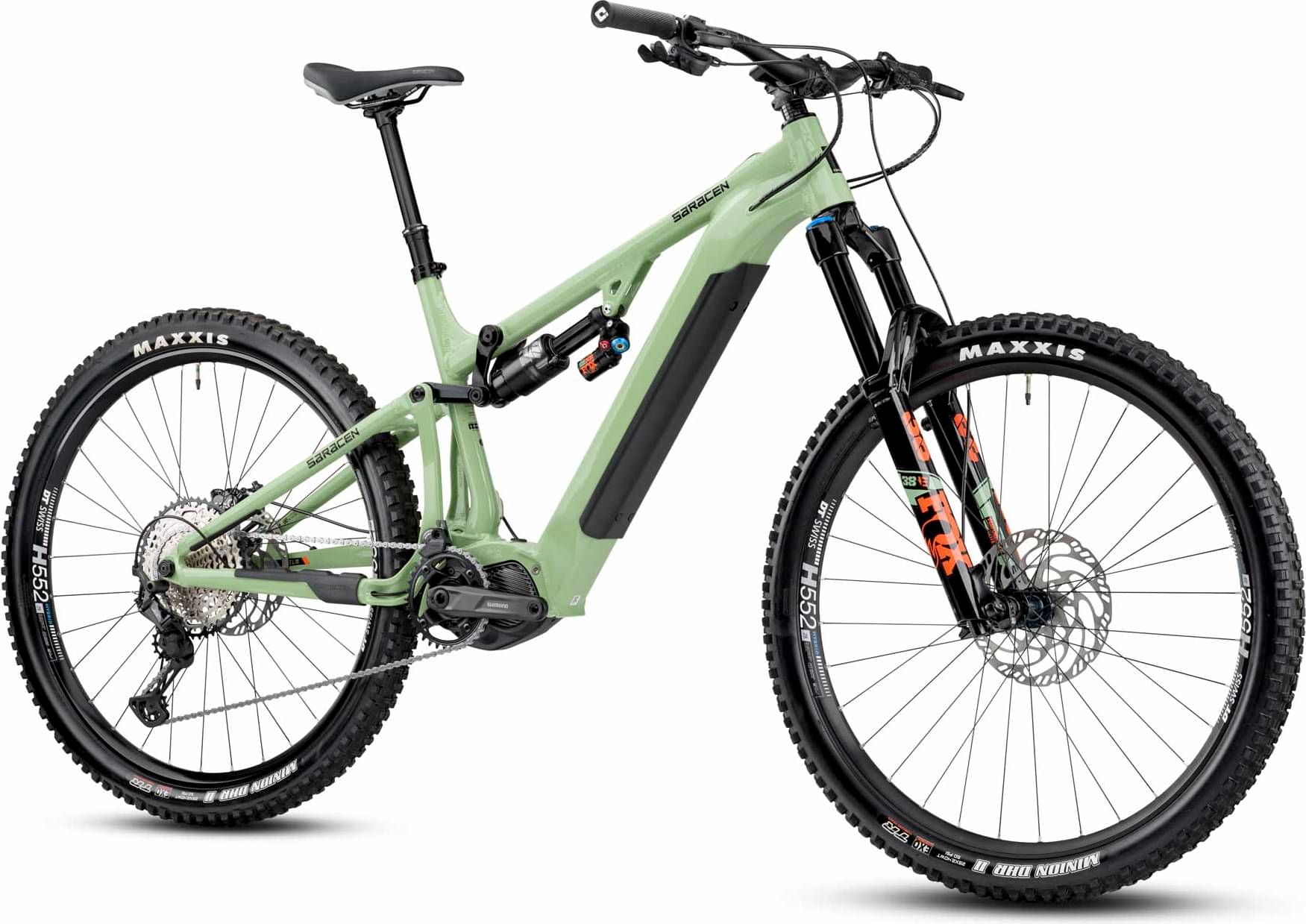

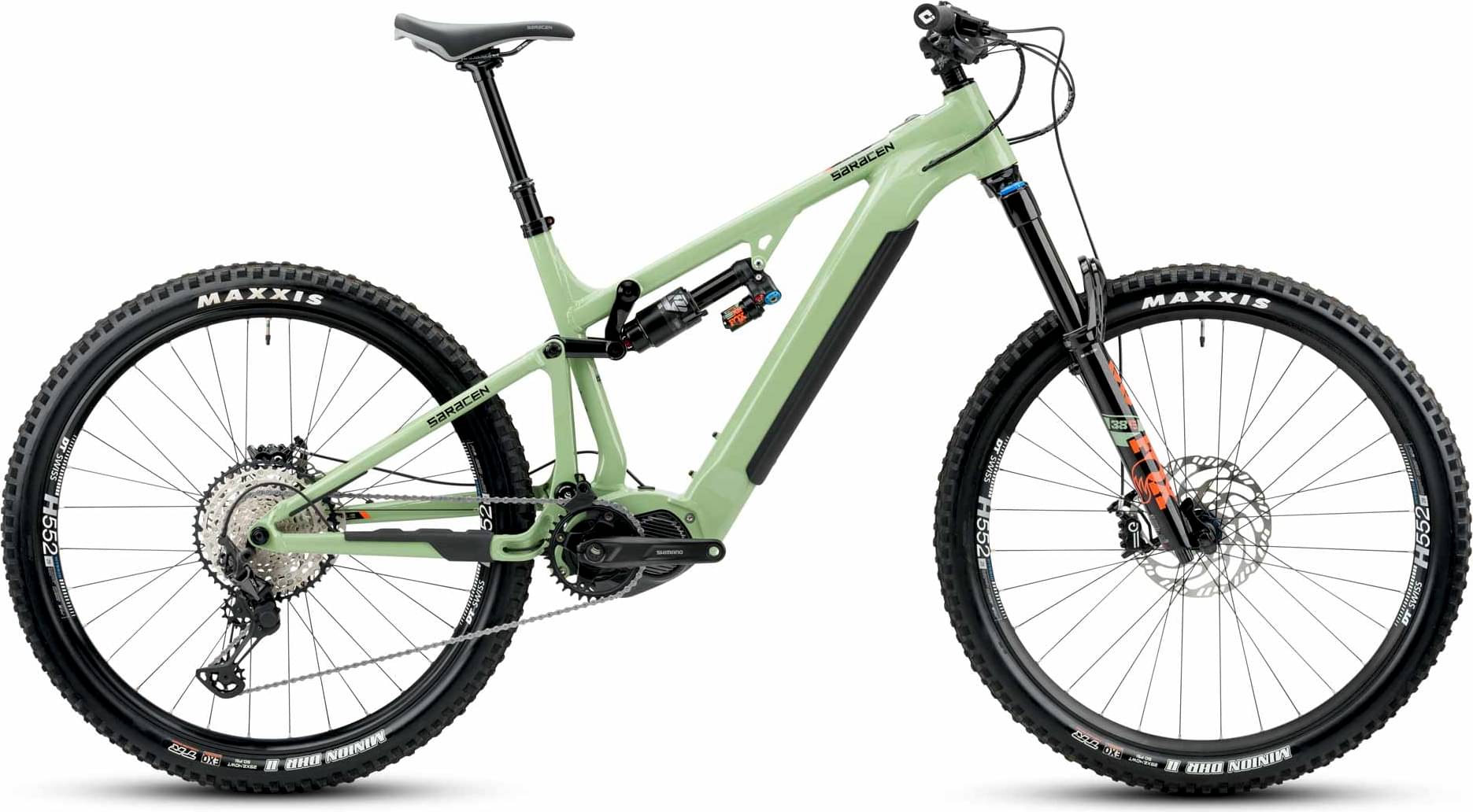

Saracen Ariel 50E Pro 2023
2023 E-bike
Estimate price |
8,128$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 38
-
Groupset XT, SLX -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery DARFON. Model: fully integrated. Power: 720Wh. -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 172cm
MD
170cm - 180cm
LG
178cm - 186cm
XL
184cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SERIES 3 CUSTOM BUTTED AND HYDROFORMED 6013 ALLOY FRONT TRIANGLE AND SWINGARM. Design: Integrated battery and motor mount / Integrated charger port. Headtube: ZS44-ZS56 tapered headtube. Bearings: 37mm main pivot bearings / 28mm linkage bearings. Linkage: Convertible CNC linkage included for both mullet and 29er setups. Suspension: Signature TRL suspension design. Cable Routing: Internal. Axle: 12 x 157mm SuperBoost dropout system. Rear Travel: 150mm.
Suspension Fork
FOX 38-E PERFORMANCE ELITE. Travel: 160mm. Technology: Tapered steerer / HSC LSC HSR LSR adjust / Grip2 damper. Axle: 15x110 Boost. : 44mm.
Rear Shock
FOX FLOAT X2 PERFORMANCE. Model: HSC LSC HSR LSR adjust / 2 position adjust. Adjustment: 230 x 65.
Drivetrain
Rear Derailleur
SHIMANO XT. Model: M8100 SGS Shadow Plus. Speed: 12 speed.
Shift Levers
SHIMANO SLX. Model: M7100 Rapidfire Plus 2-way release. Speed: 1x12 speed.
Cassette
SHIMANO DEORE. Model: M7100. Speed: 12 speed. Ratio: 10-51T.
Crank
SHIMANO. Model: FC-EM600. Chain Ring: 34T. Crank Length: 165mm.
Chain
KMC E12.
Wheels
Front Hub
SHIMANO. Front: SLX HB-M7110 32H. Rear: SLX FH-M7130 32H. Brake Fitting: Centre-lock. Front Axle Type: 15 x 110 Boost. Rear Axle Type: 12 x 157 SuperBoost. Hole: 32H.
Rear Hub
SHIMANO. Front: SLX HB-M7110 32H. Rear: SLX FH-M7130 32H. Brake Fitting: Centre-lock. Front Axle Type: 15 x 110 Boost. Rear Axle Type: 12 x 157 SuperBoost. Hole: 32H.
Rims
DT SWISS H552. Hole: 32H. Size: 29'' Front / 29'' Rear (Sizes Large / XL) 29'' Front / 27.5'' Rear (Sizes Small / Medium). Tubeless Ready: Yes.
Spokes
DOUBLE-BUTTED STAINLESS STEEL.
Tires
MAXXIS MINION DHRII. Model: EXO TR. Size: 29 x 2.4 Front & Rear (Sizes Large / XL) / 29 x 2.4 Front / 27.5 x 2.3 Rear (Sizes Small / Medium).
Brakes
Brakes
MAGURA. Brake Type: MT5 eSTOP. Rotor Size: Hydraulic four piston. : 203/203mm.
Brake Levers
MAGURA.
Cockpit
Stem
RACEFACE CHESTER 35. Length: 40mm. Clamp: 0 degree. Type: 35mm. : Ahead.
Handlebar
RACEFACE ATLAS 35. Width: 820mm. Rise: 35mm. Bend: 35mm.
Grips
ODI ELITE MOTION.
Headset
PRESTINE PT-F13.
Seat
Saddle
SARACEN CUSTOM CRMO E-MTB.
Seatpost
KS RAGE I. Size: Internal. Length: 30.9mm. : 150mm, 125mm on size small. : Westy remote.
Motor & Battery
Motor
SHIMANO STEPS. Model: Shimano EP-800. Assistance: Up to 25Km/h.
Battery
DARFON. Model: fully integrated. Power: 720Wh.
Charger
DARFON. Model: UK Charger.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.31 mm | 1.27 mm | 1.25 mm |
| Front Center | 786 mm | 811 mm | 840 mm | 866 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 127 mm | 127 mm | 127 mm | 127 mm |
| Stack | 636 mm | 636 mm | 645 mm | 659 mm |
| Reach | 459 mm | 484 mm | 509 mm | 529 mm |
| Top Tube Length | 616 mm | 641 mm | 669 mm | 692 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 410 mm | 460 mm | 510 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 115 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 469 mm | 469 mm | 469 mm | 469 mm |
| Wheelbase | 1254 mm | 1279 mm | 1308 mm | 1334 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 798 mm | 798 mm | 797 mm | 797 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 170 cm | 178 cm | 184 cm |
| Rider Max Height | 172 cm | 180 cm | 186 cm | 196 cm |
About this model
Ariel 50E Pro is part of the Saracen E Ariel model. Saracen launched 7 e-bikes of this model so far. You can easily view all of the Saracen E Ariel e-bikes models from 2023, here.
Model range prices
Saracen Ariel 50E 2023 is the most affordable e-bike of this model and has a price of 6088$. On the other hand, Saracen Ariel 50E Elite 2023, is the most expensive and costs 8524$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2023 and its price was 7306$. In conclusion, this e-bike price is 52.69% higher than the price of the average Enduro e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This e-bike has the Fox Performance Elite Float 38 fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Saracen Ariel 50E Pro e-bike has the FOX FLOAT X2 PERFORMANCE. Model: HSC model installed, and has a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Ariel 50E Pro model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Saracen Ariel 50E Pro is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Ariel 50E Pro. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
