Saracen Ariel Junior 2023

2023 Youth
Estimate price | 2,573$
Open compare Use advisor

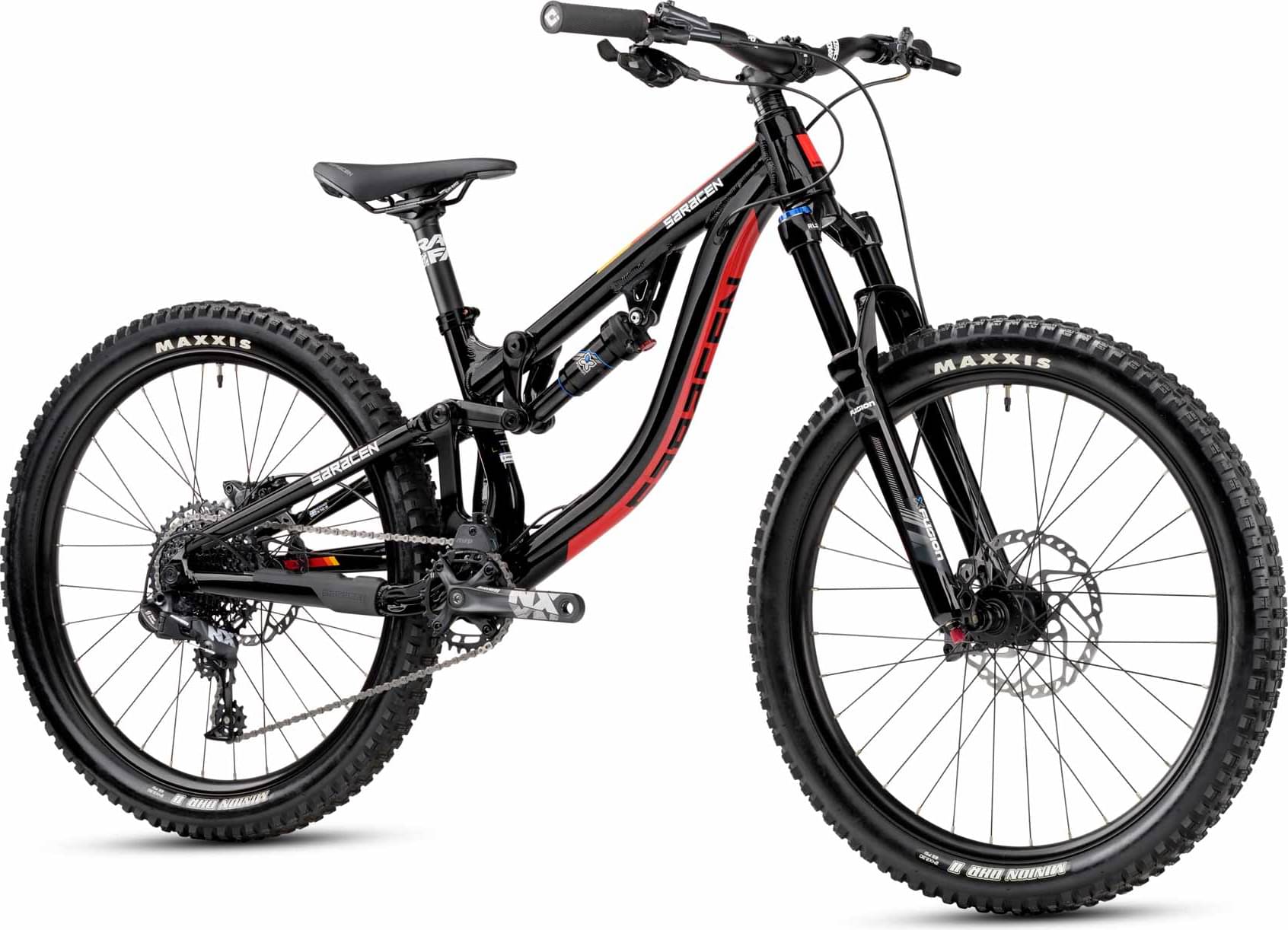

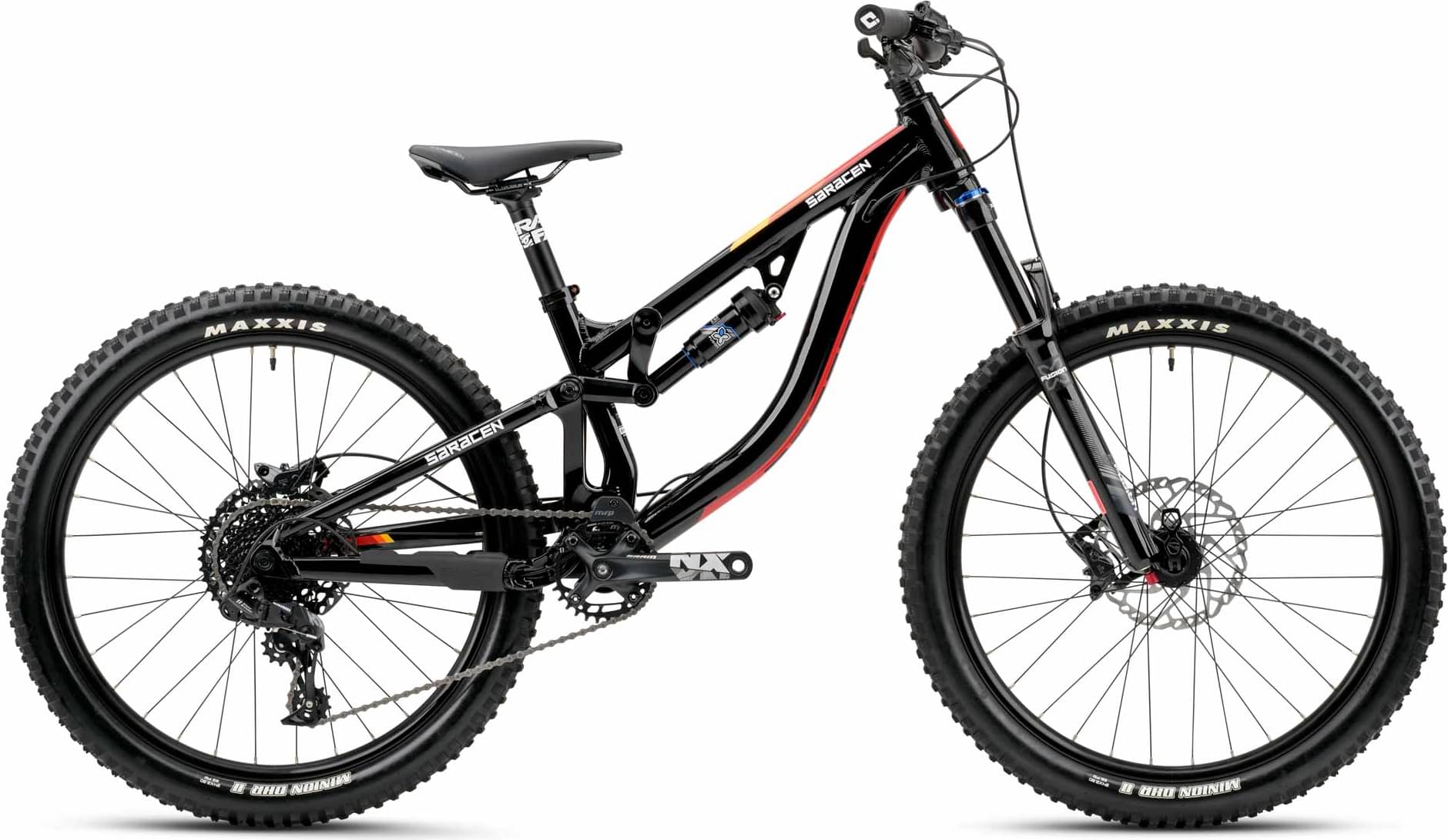

  • Saracen Ariel Junior 2023 - Black.
  • Saracen Ariel Junior 2023 - saracen-ariel-junior-2023-1.jpeg

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 24"
  • Travel Front 120mm
  • Travel Rear 120mm
  • Fork X-Fusion VELVET
  • Groupset NX, GX
  • Suspension Full
  • Drivetrain 1 × 11
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • One Size

    125cm - 145cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

SERIES 3 CUSTOM BUTTED AND HYDROFORMED 6013 ALLOY FRONT TRIANGLE AND SWINGARM. Headtube: ZS44-ZS56 tapered headtube. Bearings: 37mm main pivot bearings / 28mm linkage bearings. Suspension: Signature TRL suspension design. Cable Routing: Internal. Axle: 12 x 142mm dropout system. Rear Travel: 120mm.

Suspension Fork

X-FUSION VELVET RL2. Travel: 120mm. Technology: Tapered steerer / rebound adjust / RL2 damper / Lockout. Axle: 15x100. Rake: 41mm.

Rear Shock

X-FUSION 02 PRO R. Adjustment: rebound adjust. Length / Stroke: 190 x 40.

Drivetrain

Rear Derailleur

SRAM NX. Speed: 11 speed.

Shift Levers

SRAM GX-E. Speed: 1x11 speed.

Cassette

SRAM POWERGLIDE 1130. Speed: 11 speed. Ratio: 11-42T.

Crank

SRAM NX 1X X-SYNC. Chain Ring: 30T. Crank Length: 155mm / 49mm.

Bottom Bracket

SRAM BSA 73MM.

Chain

SRAM PC 1110.

Wheels

Front Hub

PROMAX. Front: DR-921 sealed bearing 32H. Rear: DR-961SRS sealed bearing 32H. Brake Fitting: 6-bolt. Front Axle Type: 15 x 100. Rear Axle Type: 12 x 142. Hole: 32H.

Rear Hub

PROMAX. Front: DR-921 sealed bearing 32H. Rear: DR-961SRS sealed bearing 32H. Brake Fitting: 6-bolt. Front Axle Type: 15 x 100. Rear Axle Type: 12 x 142. Hole: 32H.

Rims

JALCO HD-490. Hole: 32H. Size: 24''. Tubeless Ready: Yes.

Spokes

DOUBLE-BUTTED STAINLESS STEEL.

Tires

MAXXIS MINION DHRII. Size: 24 x 2.3.

Brakes

Brakes

SHIMANO DEORE. Model: BR-M6100. Brake Type: Hydraulic two piston. Rotor Size: 180/180mm.

Brake Levers

SHIMANO DEORE.

Cockpit

Stem

SARACEN. Length: 45mm. Rise: 6 degree. Clamp: 31.8mm. Type: Ahead.

Handlebar

RACEFACE RIDE. Width: 740mm. Rise: 25mm. Bar Bore: 31.8mm.

Grips

ODI ELITE MOTION.

Headset

PRESTINE PT-F13.

Seat

Saddle

SARACEN CUSTOM CRMO MTB.

Seatpost

RACEFACE CHESTER. Size: 30.9mm. Length: 325mm.

Fit data

Geometry

Numbers for sizing and ride feel.

SizeOne Size
Stack Reach Ratio
1.472 mm
Front Center
649 mm
Rake
40 mm
Stack
530 mm
Reach
360 mm
Top Tube Length
502 mm
Seat Tube Angle
75 °
Seat Tube Length
315 mm
Head Tube Angle
65 °
Head Tube Length
95 mm
Chainstay Length
385 mm
Wheelbase
1034 mm
Bottom Bracket Drop
5 mm
Standover Height
687 mm
Wheels24"
Rider Min Height125 cm
Rider Max Height145 cm

Model Overview

Ariel Junior is a Saracen Ariel model. There are 21 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.

Model range prices

The most economical model, the Saracen Ariel Junior 2023 has a starting price of 2313$. Saracen Ariel 60 Elite 2023 on the other hand is the most expensive at 5357$.

Safety

When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.

Mountain bikes average price

Our math shows that the average cost of a dependable Mountain bike is 616$. However, this doesn’t mean that if you spend less money on a Mountain bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.

This bike was released in 2023 and its price was 2313$. Comparing the average cost of a Mountain bike to this one, you will see that Ariel Junior price is 275.49% more expensive.

Internal Cable Routing

This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.

Ariel Junior components

Fork

Saracen Ariel Junior 2023 bike is equipped with the X-Fusion VELVET fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.

Rear Shock

From the factory, it comes with the X-FUSION 02 PRO R. Adjustment: rebound adjust. Length / Stroke: 190 x 40. rear shock model, which has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.

Wheels size

When leaving the production line, the Ariel Junior model has 24″ aluminum wheels. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, you can use them better on-road, and less on technical terrain.

Brakes

We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ariel Junior comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.

Sizes

This bike has one size only, so it might not fit you. In conclusion, make sure it fits you, or look for another model.
