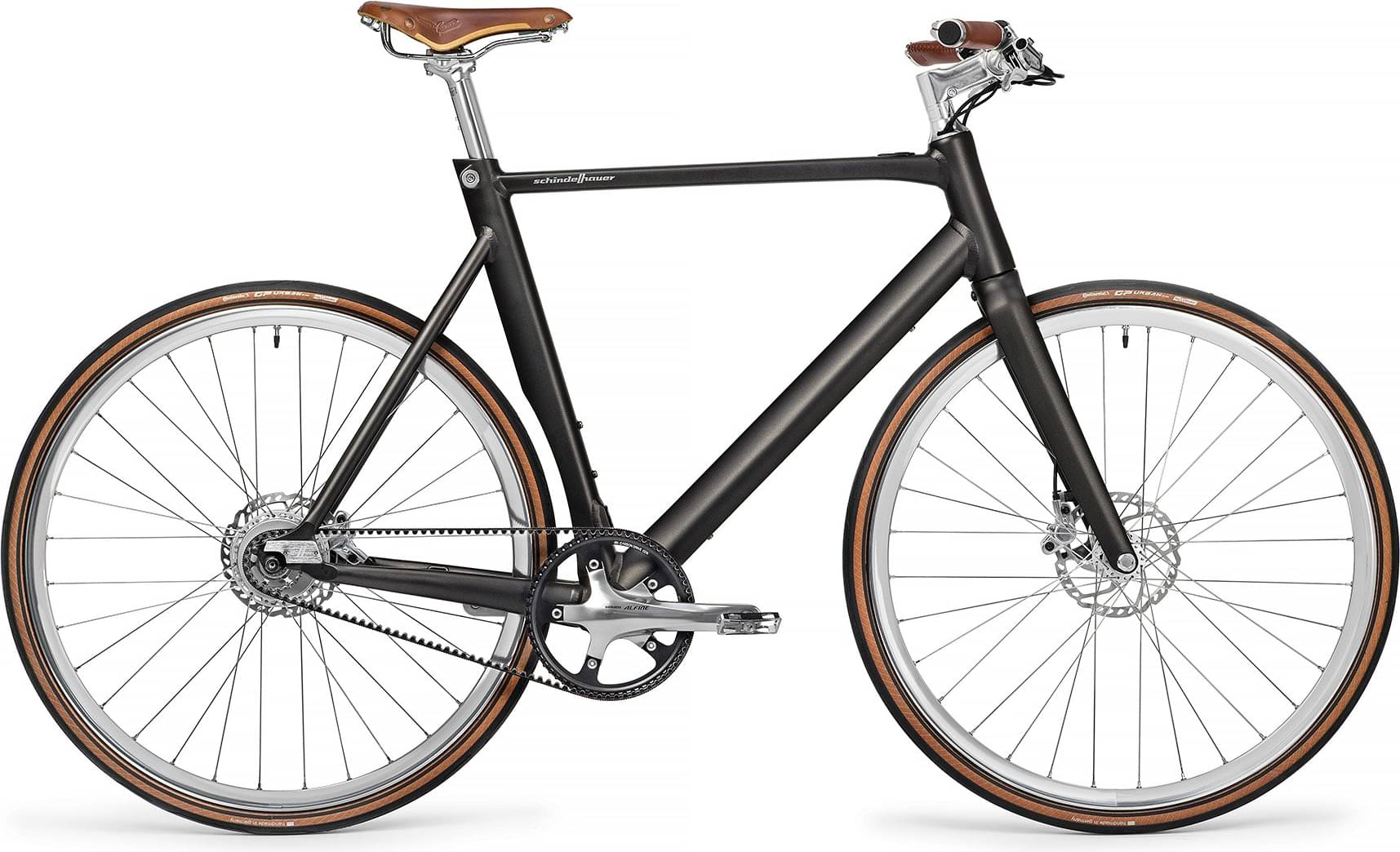

schindelhauer Arthur 2022
2022 E-bike
Estimate price |
4,880$
Weight | 13.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Alfine -
Suspension Rigid -
Motor MAHLE 250W 40Nm hub-drive -
Battery Mahle-ebikemotion - intube battery, energy: 250 Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
167cm - 176cm
MD
174cm - 184cm
LG
182cm - 192cm
XL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted aero tubing, forged bottom bracket shell, forged dropouts with slider belt tensioning system and Schindelhauer - belt port, integrated seat post clamp, smooth welded
Suspension Fork
Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
Drivetrain
Shift Levers
--
Crank
Shimano - Alfine Hollowtech II
Bottom Bracket
Shimano - Press-Fit
Pedals
Schindelhauer - Urban Pedal, aluminium, CNC machined
Wheels
Rims
Schindelhauer - high flange front hub disc, ebikemotion motor HUB Drive M1, Alexrims - CXD26 rims with eyelets, Sapim - Race spokes, 3-cross and 2-cross laced
Tires
Continental - GP Urban Classic 35-622
Brakes
Brakes
Shimano - Alfine, disc brakes (hydraulic), 160 mm
Cockpit
Stem
Satori - Stealth, aluminium
Handlebar
LightSKIN - handlebar integrated LED-front-light
Grips
Schindelhauer - ergo leather grips
Headset
Tange Seiki integrated, tapered 1 1/8-1,5
Seat
Saddle
Brooks - Swift
Seatpost
LightSKIN - seat post integrated LED-rear-light
Motor & Battery
Motor
Mahle-ebikemotion - Motor HUB Drive M1, power: 250 W, torque: ca. 40 Nm, max. support up to 25 km/h
Battery
Mahle-ebikemotion - intube battery, energy: 250 Wh
Remote
Mahle-ebikemotion - iWoc ONE
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.389 mm | 1.376 mm | 1.36 mm | 1.391 mm |
| Stack | 557 mm | 571 mm | 586 mm | 605 mm |
| Reach | 401 mm | 415 mm | 431 mm | 435 mm |
| Top Tube Length | 560 mm | 580 mm | 600 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 150 mm | 165 mm | 180 mm | 200 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1018 mm | 1037 mm | 1058 mm | 1068 mm |
| Standover Height | 803 mm | 825 mm | 846 mm | 870 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 167 cm | 174 cm | 182 cm | 190 cm |
| Rider Max Height | 176 cm | 184 cm | 192 cm | 200 cm |
About this model
Arthur is a Schindelhauer E Arthur model. 4 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Schindelhauer Arthur 2022 is the most economical model, with a starting price of 4454$. Schindelhauer Arthur VI/IX 2022 on the other hand costs 5304$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4454$. Comparing this to the average Commuter e-bike price, we see that the price is 73.37% higher.
Commuter e-bikes average weight
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.4 kg (29.54 lbs), Schindelhauer e-bike is much lighter than average. In short, the average Commuter e-bike weight is 88.06% higher than this one.
Overview of components
Fork material
When it comes to the fork, this e-bike has an aluminum one, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on Arthur are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Arthur comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 167 cm – 200 cm (5.48 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
