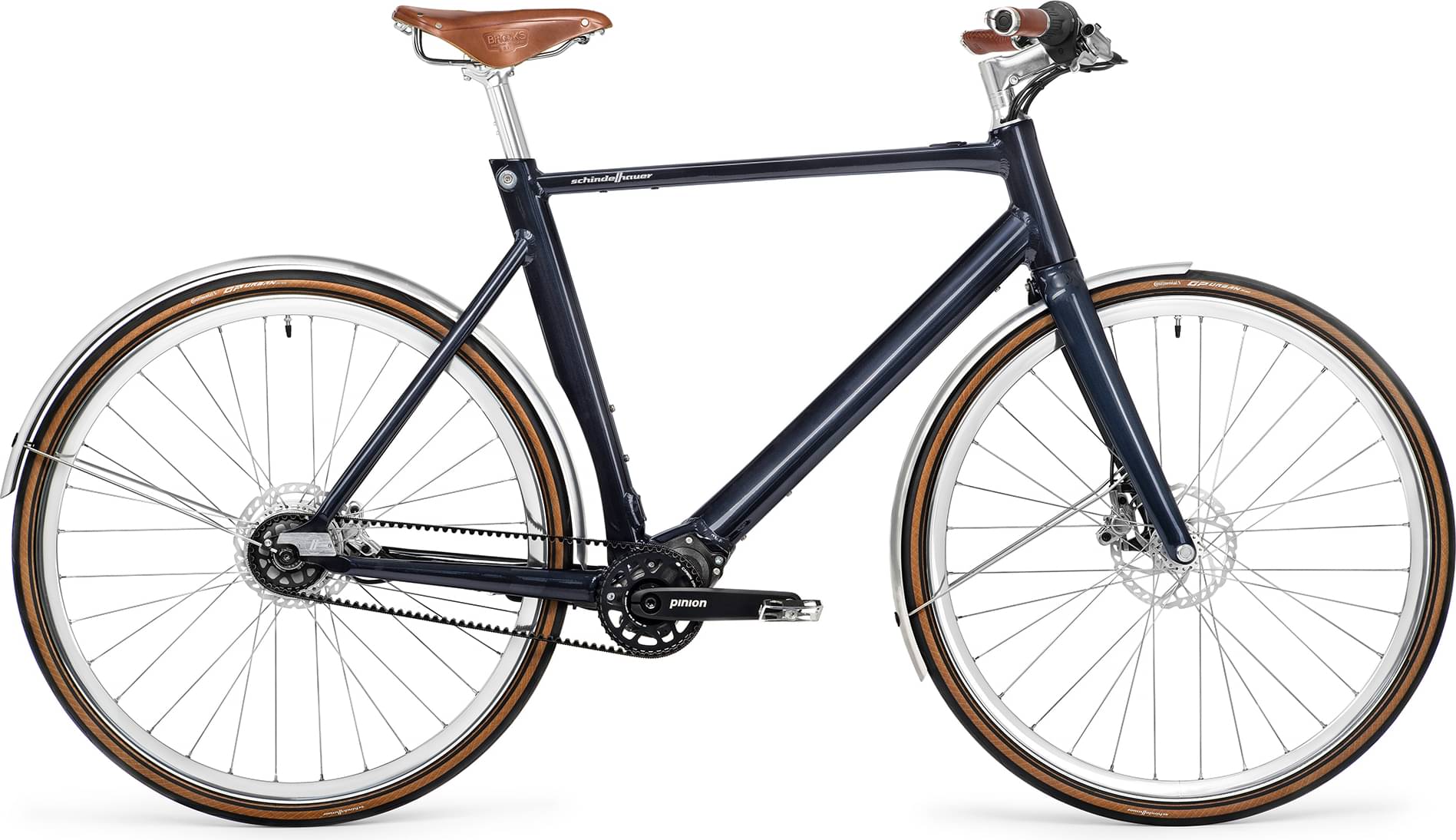

schindelhauer Arthur VI/IX 2022
2022 E-bike
Estimate price |
5,811$
Weight | 15.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Suspension Rigid -
Motor MAHLE 250W 40Nm hub-drive -
Battery Mahle-ebikemotion – intube battery, energy: 250 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
167cm - 178cm
MD
176cm - 188cm
LG
186cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted aero tubing, forged bottom bracket shell, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, integrated seat post clamp, smooth welded, internal cable routing
Suspension Fork
Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
Drivetrain
Shift Levers
Pinion C-Line gear box 6-/9-speed (XR)
Crank
Pinion
Bottom Bracket
Pinion
Pedals
Schindelhauer – Urban Pedal, aluminium, CNC machined
Wheels
Rims
Schindelhauer – high flange front hub disc, ebikemotion motor HUB Drive M1, Alexrims – CXD26 rims with eyelets, Sapim – Race spokes, 3-cross and 1-cross laced
Tires
Continental – GP Urban Classic 35-622
Brakes
Brakes
Shimano - Alfine, disc brakes (hydraulic), 160 mm
Cockpit
Stem
Satori – Stealth, aluminium
Handlebar
LightSKIN WIEN – handlebar integrated LED-front-light
Grips
Schindelhauer – ergo leather grips
Headset
Acros - ICR 1,5''
Seat
Saddle
Brooks – B17 (chrome rails)
Seatpost
LightSKIN – seat post integrated LED-rear-light
Motor & Battery
Motor
Mahle-ebikemotion – Motor HUB Drive M1, power: 250 W, torque: 40 Nm, max. support up to 25 km/h
Battery
Mahle-ebikemotion – intube battery, energy: 250 Wh
Remote
Mahle-ebikemotion – iWoc ONE with Bluetooth and ANT+
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.333 mm | 1.314 mm | 1.315 mm |
| Stack | 576 mm | 590 mm | 609 mm |
| Reach | 432 mm | 449 mm | 463 mm |
| Top Tube Length | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 165 mm | 180 mm | 200 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1081 mm | 1101 mm | 1121 mm |
| Standover Height | 804 mm | 829 mm | 857 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 167 cm | 176 cm | 186 cm |
| Rider Max Height | 178 cm | 188 cm | 200 cm |
About this model
Arthur VI/IX belongs to the Schindelhauer E Arthur model. Schindelhauer released 4 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Schindelhauer Arthur 2022 is the cheapest e-bike model and costs 4454$. Schindelhauer Arthur VI/IX 2022 is the most expensive one and costs 5304$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5304$. Doing a quick comparison, we notice that Arthur VI/IX price is 106.46% higher than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Arthur VI/IX weighs 15.7 kg (34.61 lbs) and is much lighter than the average. To sum up, it’s 60.51% lighter than the average weight of Commuter e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this e-bike has an aluminum one, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
The Arthur VI/IX 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Schindelhauer Arthur VI/IX has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 167 cm – 200 cm (5.48 ft – 6.56 ft). In short, you can easily find one that suits you.
