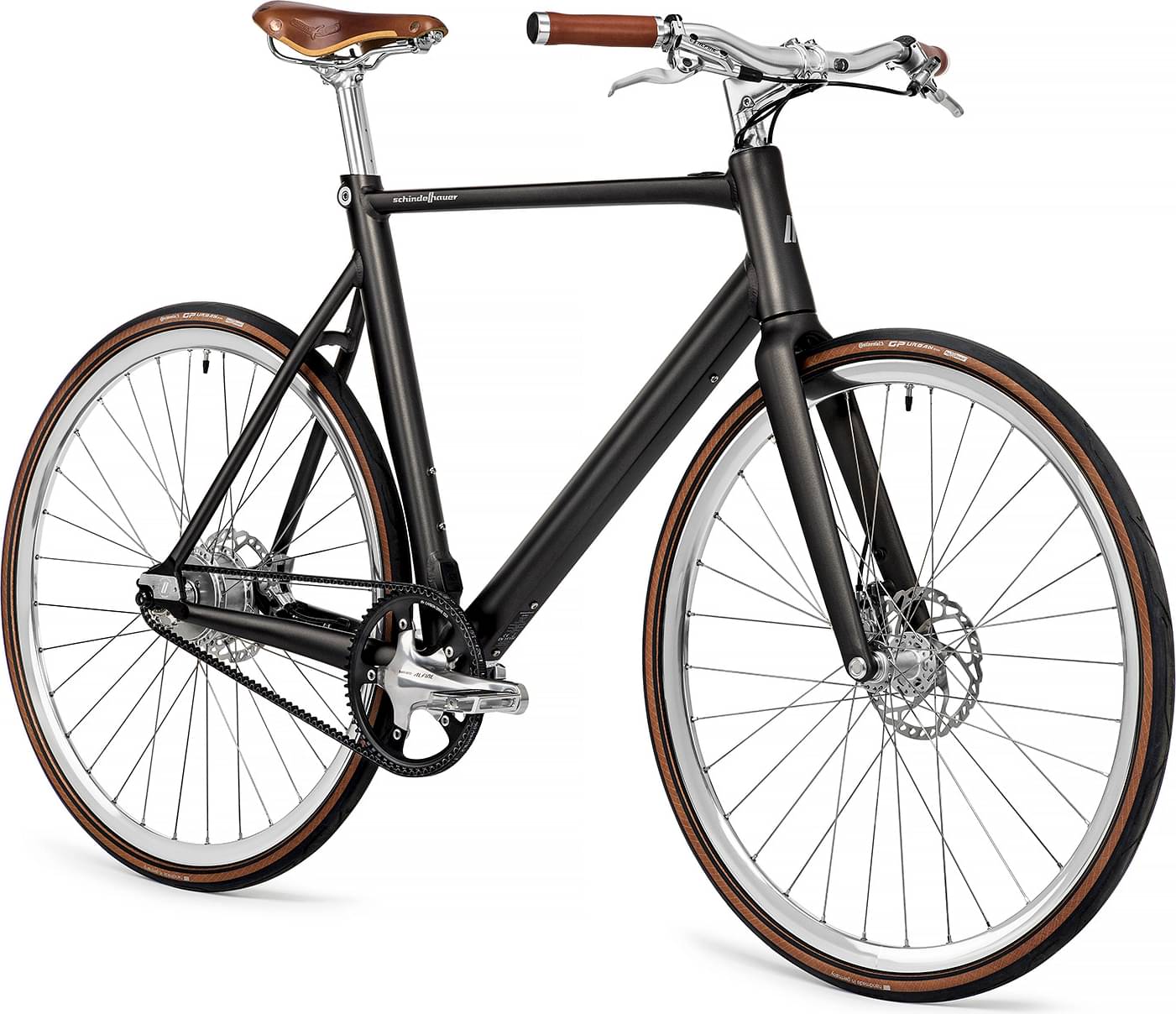

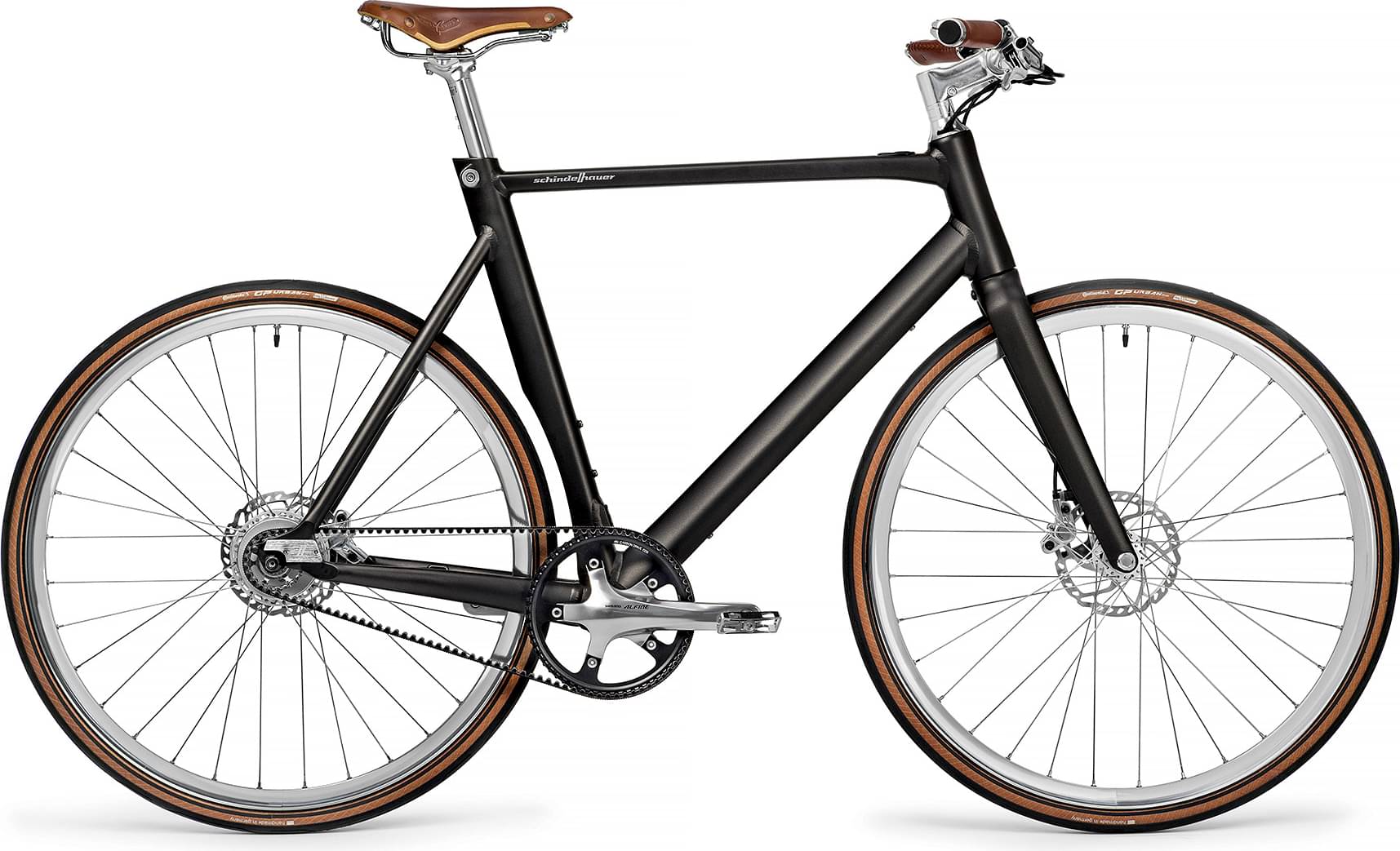

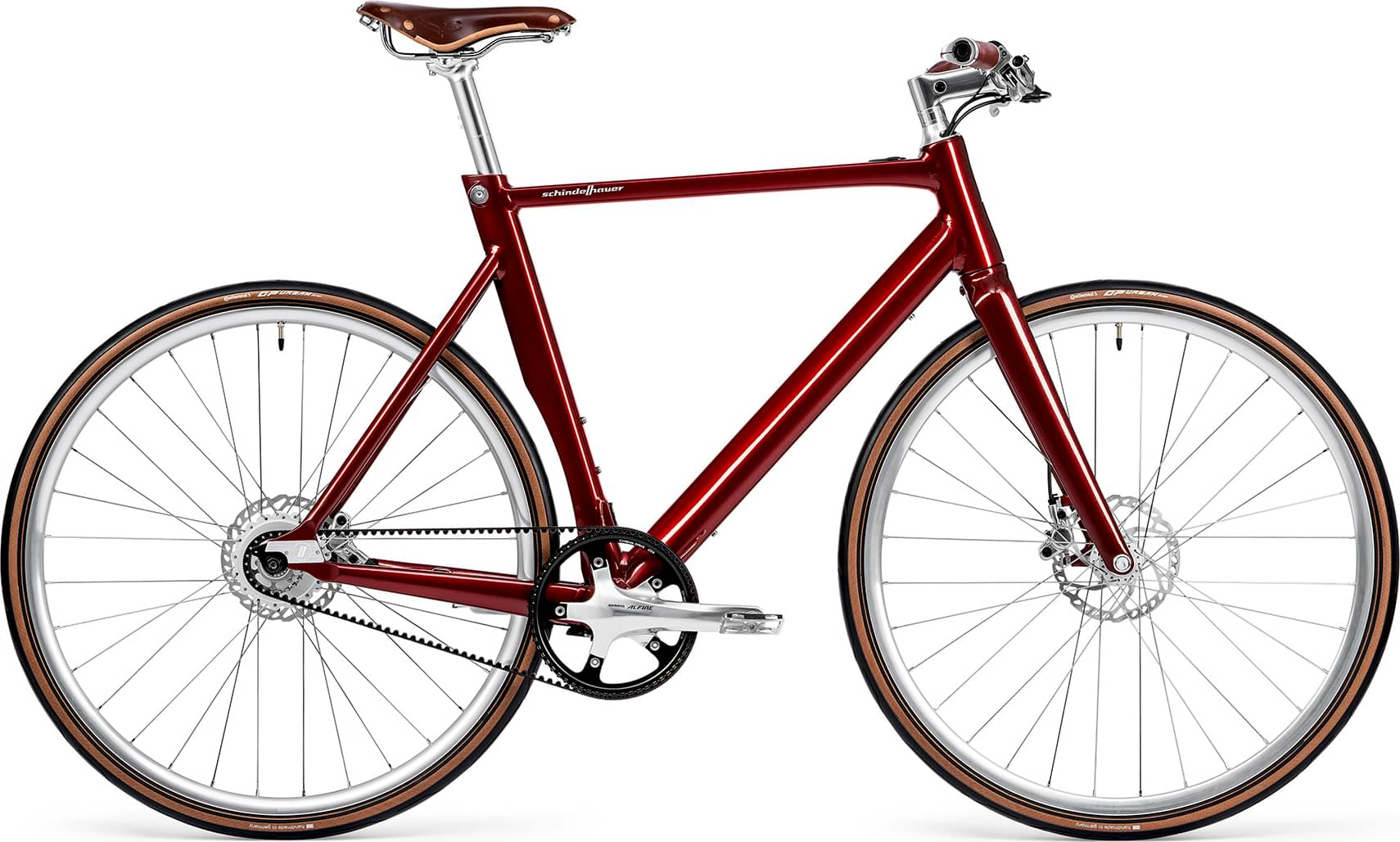

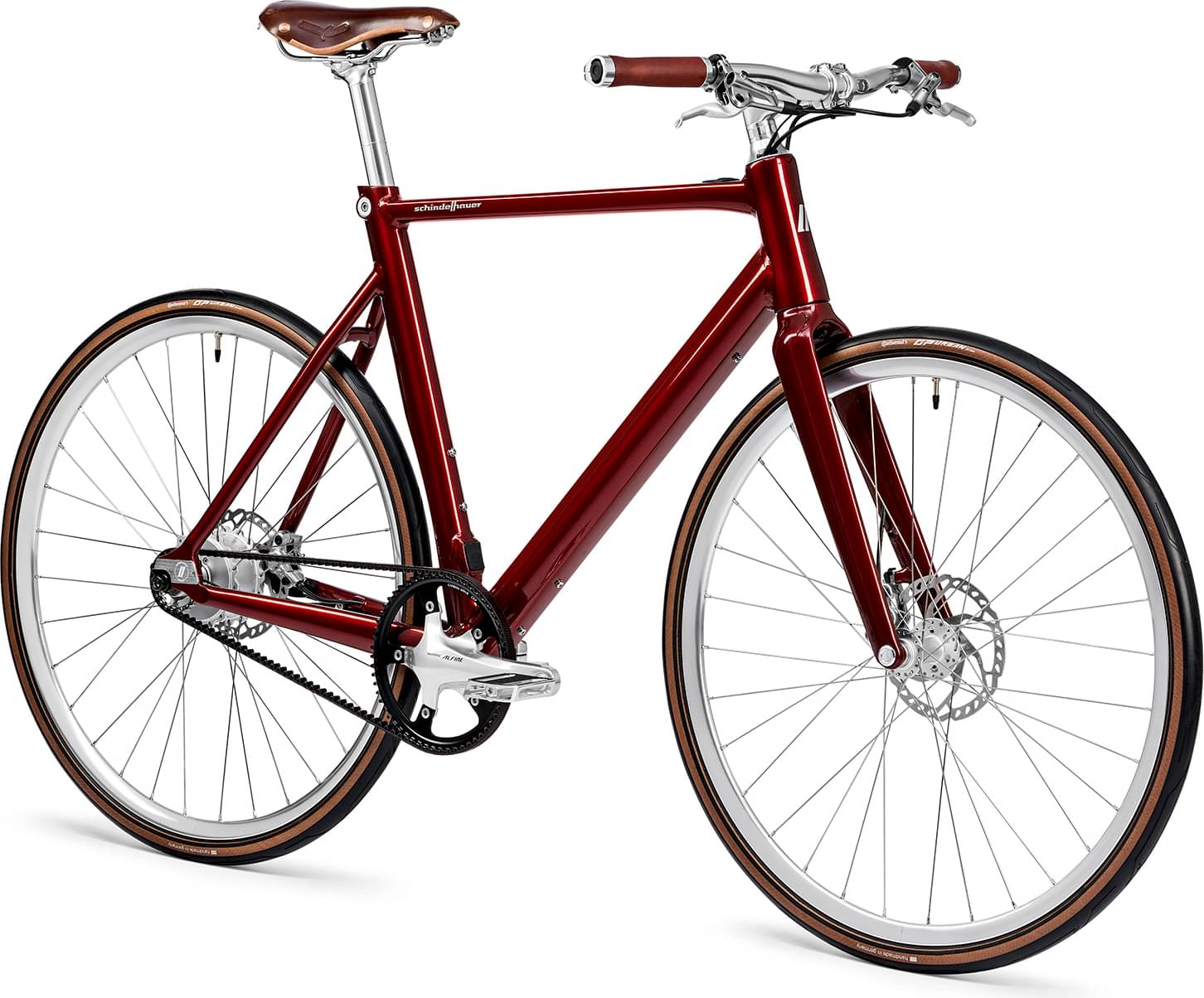

schindelhauer Arthur 2023
2023 E-bike
Estimate price |
4,415$
Weight | 13.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alfine -
Suspension Rigid -
Motor MAHLE 250W 40Nm hub-drive -
Battery Mahle-ebikemotion - intube battery, energy: 250 Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
167cm - 176cm
MD
174cm - 184cm
LG
182cm - 192cm
XL
190cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted aero tubing, forged bottom bracket shell, forged dropouts with slider belt tensioning system and Schindelhauer - belt port, integrated seat post clamp, smooth welded
Suspension Fork
Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
Drivetrain
Shift Levers
--
Crank
Shimano - Alfine Hollowtech II
Bottom Bracket
Shimano - Press-Fit
Pedals
Schindelhauer - Urban Pedal, aluminium, CNC machined
Wheels
Rims
Schindelhauer - high flange front hub disc, ebikemotion motor HUB Drive M1, Alexrims - CXD26 rims with eyelets, Sapim - Race spokes, 3-cross and 2-cross laced
Tires
Continental - GP Urban Classic 35-622
Brakes
Brakes
Shimano - Alfine, disc brakes (hydraulic), 160 mm
Cockpit
Stem
Satori - Stealth, aluminium
Handlebar
LightSKIN - handlebar integrated LED-front-light
Grips
Schindelhauer - ergo leather grips
Headset
Tange Seiki integrated, tapered 1 1/8-1,5
Seat
Saddle
Brooks - Swift
Seatpost
LightSKIN - seat post integrated LED-rear-light
Motor & Battery
Motor
Mahle-ebikemotion - Motor HUB Drive M1, power: 250 W, torque: ca. 40 Nm, max. support up to 25 km/h
Battery
Mahle-ebikemotion - intube battery, energy: 250 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.389 mm | 1.376 mm | 1.36 mm | 1.391 mm |
| Stack | 557 mm | 571 mm | 586 mm | 605 mm |
| Reach | 401 mm | 415 mm | 431 mm | 435 mm |
| Top Tube Length | 560 mm | 580 mm | 600 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 165 mm | 165 mm | 180 mm | 200 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1018 mm | 1037 mm | 1058 mm | 1068 mm |
| Standover Height | 803 mm | 825 mm | 846 mm | 870 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 167 cm | 174 cm | 182 cm | 190 cm |
| Rider Max Height | 176 cm | 184 cm | 192 cm | 200 cm |
About this model
Arthur completes the Schindelhauer E Arthur model. There are 4 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Schindelhauer Arthur 2023 is the most economical model, with a starting price of 4029$. Schindelhauer Arthur VI/IX 2023 on the other hand costs 5304$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4029$. Comparing the average cost of a Commuter e-bike to this one, you will see that Arthur price is 56.83% higher.
Average weight for Commuter e-bikes
If we make a quick analysis of the average weight of a Commuter e-bike, we get 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Schindelhauer Arthur it’s weighing 13.4 kg (29.54 lbs). At this weight, is much lighter than average. To sum up, it’s 88.06% lighter than the average weight of Commuter e-bikes.
Overview of components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the Arthur model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Schindelhauer Arthur has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 167 cm – 200 cm (5.48 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
