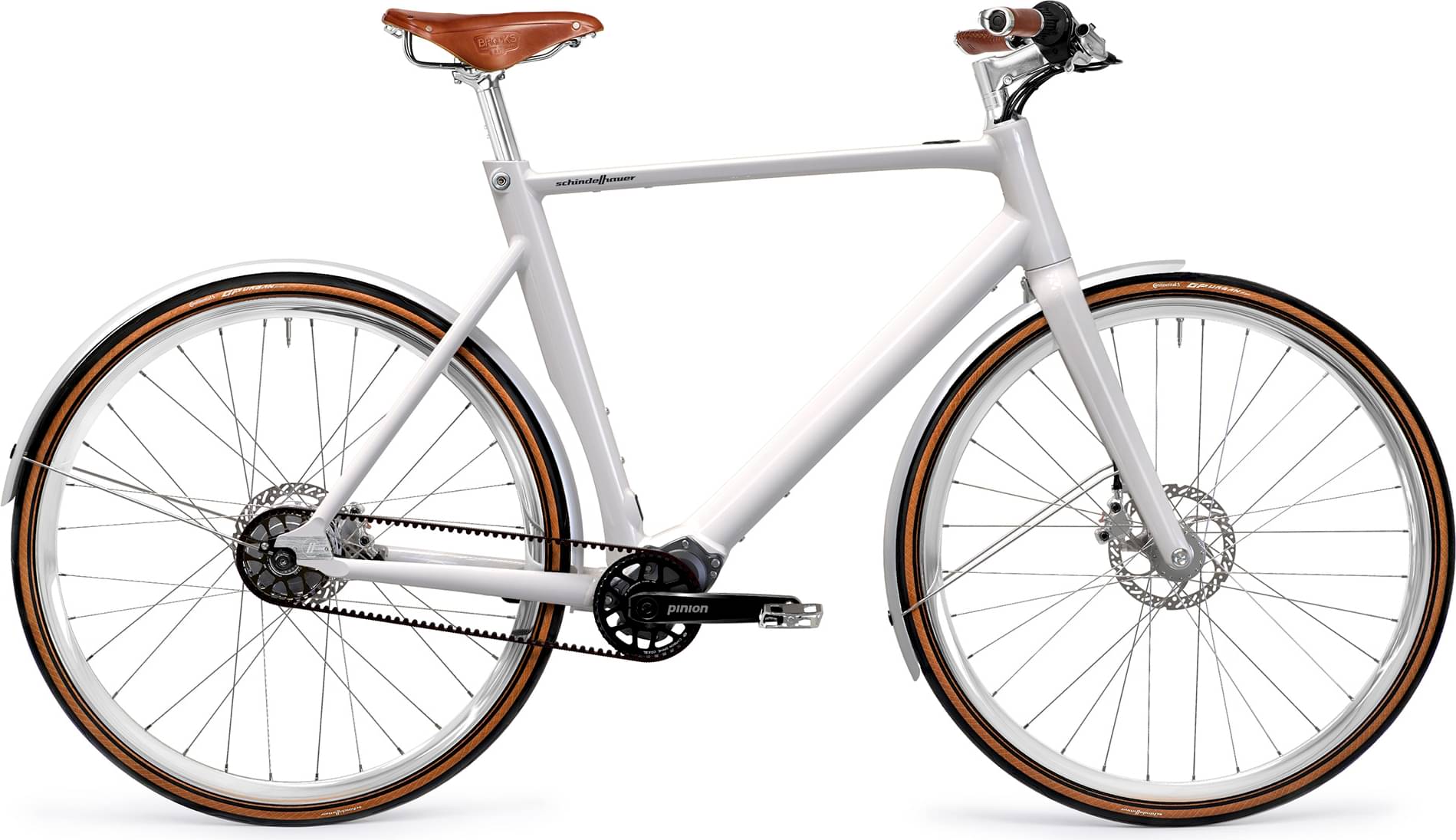

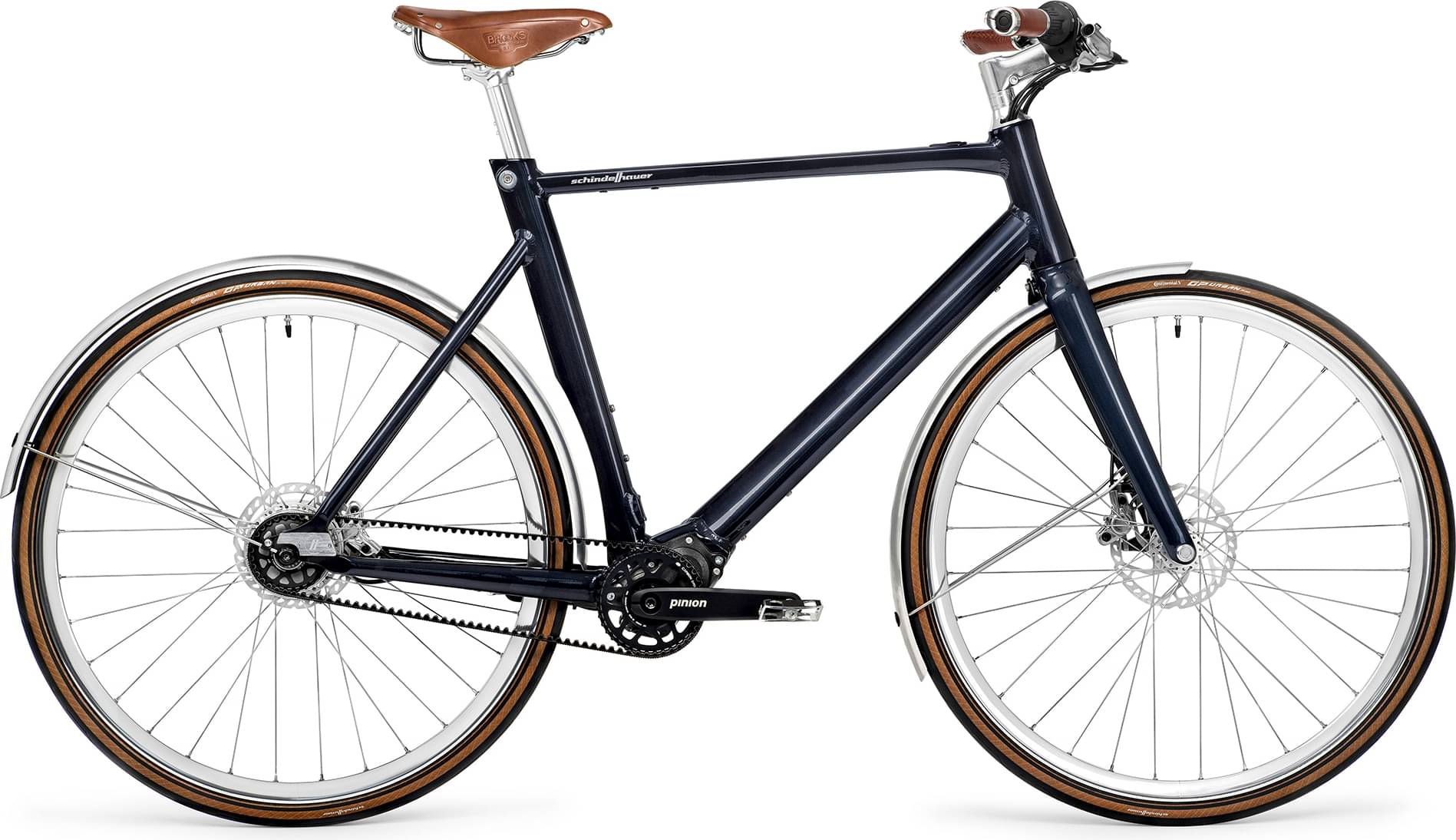

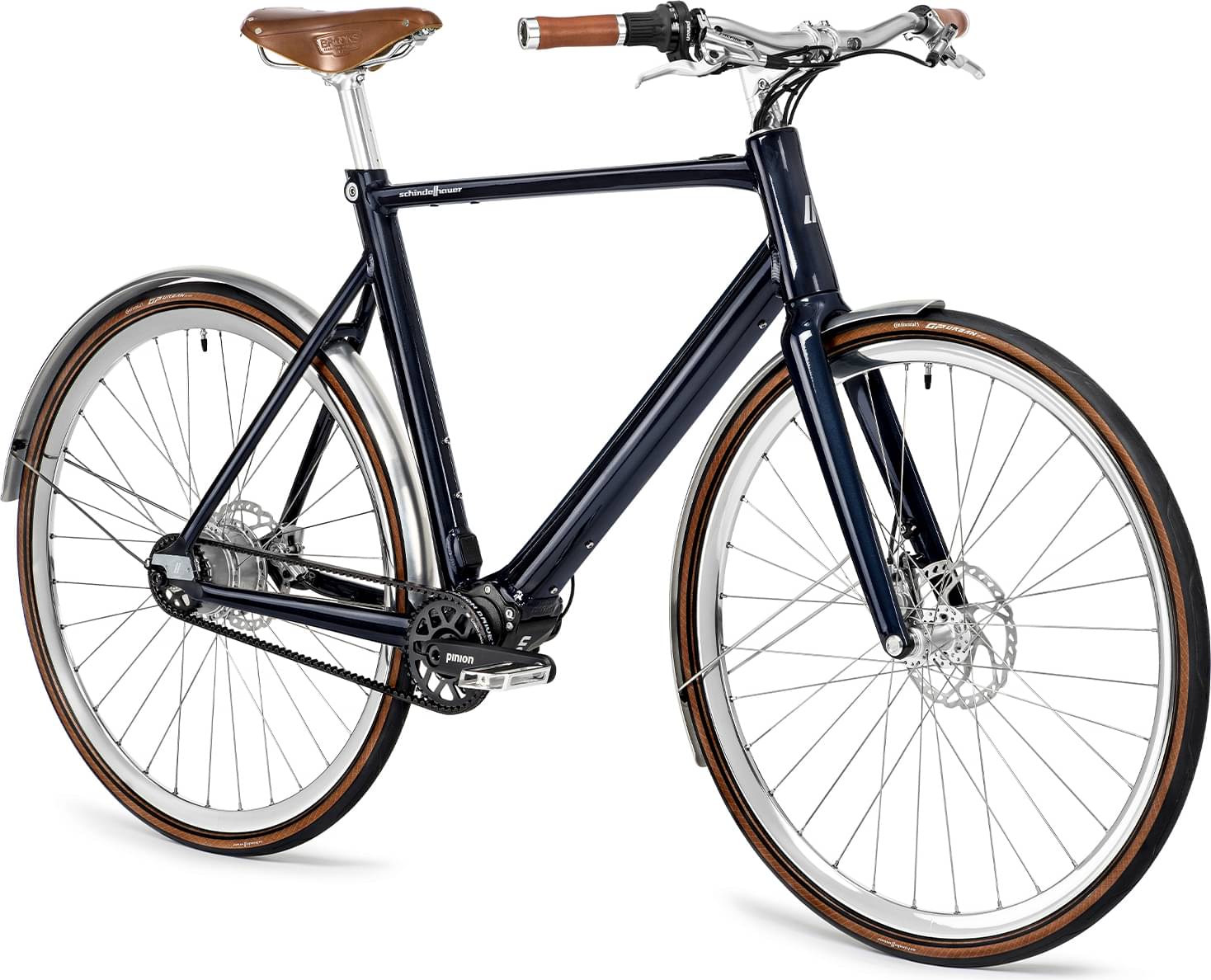

schindelhauer Arthur VI/IX 2023
2023 E-bike
Estimate price |
5,811$
Weight | 15.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Pinion -
Suspension Rigid -
Motor MAHLE 250W 40Nm hub-drive -
Battery Mahle-ebikemotion – intube battery, energy: 250 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
167cm - 178cm
MD
176cm - 188cm
LG
186cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted aero tubing, forged bottom bracket shell, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, integrated seat post clamp, smooth welded, internal cable routing
Suspension Fork
Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
Drivetrain
Shift Levers
Pinion C-Line gear box 6-/9-speed (XR)
Crank
Pinion
Bottom Bracket
Pinion
Pedals
Schindelhauer – Urban Pedal, aluminium, CNC machined
Wheels
Rims
Schindelhauer – high flange front hub disc, ebikemotion motor HUB Drive M1, Alexrims – CXD26 rims with eyelets, Sapim – Race spokes, 3-cross and 1-cross laced
Tires
Continental – GP Urban Classic 35-622
Brakes
Brakes
Shimano - Alfine, disc brakes (hydraulic), 160 mm
Cockpit
Stem
Satori – Stealth, aluminium
Handlebar
LightSKIN WIEN – handlebar integrated LED-front-light
Grips
Schindelhauer – ergo leather grips
Headset
Acros - ICR 1,5''
Seat
Saddle
Brooks – B17 (chrome rails)
Seatpost
LightSKIN – seat post integrated LED-rear-light
Motor & Battery
Motor
Mahle-ebikemotion – Motor HUB Drive M1, power: 250 W, torque: 40 Nm, max. support up to 25 km/h
Battery
Mahle-ebikemotion – intube battery, energy: 250 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.333 mm | 1.314 mm | 1.315 mm |
| Stack | 576 mm | 590 mm | 609 mm |
| Reach | 432 mm | 449 mm | 463 mm |
| Top Tube Length | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 165 mm | 180 mm | 200 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1081 mm | 1101 mm | 1121 mm |
| Standover Height | 804 mm | 829 mm | 857 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 167 cm | 176 cm | 186 cm |
| Rider Max Height | 178 cm | 188 cm | 200 cm |
Model Overview
Arthur VI/IX is a Schindelhauer E Arthur model. There are 4 e-bikes that carry this model name. Take a sneak peek at all Schindelhauer E Arthur e-bikes models from 2023, by clicking here.
Model range prices
Schindelhauer Arthur 2023 is the most economical model, with a starting price of 4029$. Schindelhauer Arthur VI/IX 2023 on the other hand costs 5304$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Schindelhauer Arthur VI/IX price was 5304$. If we compare this with the average Commuter e-bike cost we notice that the price is 106.46% more expensive.
Average weight for Commuter e-bikes
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 15.7 kg (34.61 lbs), the Arthur VI/IX model is much lighter than average. To sum up, it’s 60.51% lighter than the average weight of Commuter e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Arthur VI/IX components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
As for the wheels, Schindelhauer Arthur VI/IX 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Arthur VI/IX comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 167 cm – 200 cm (5.48 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
