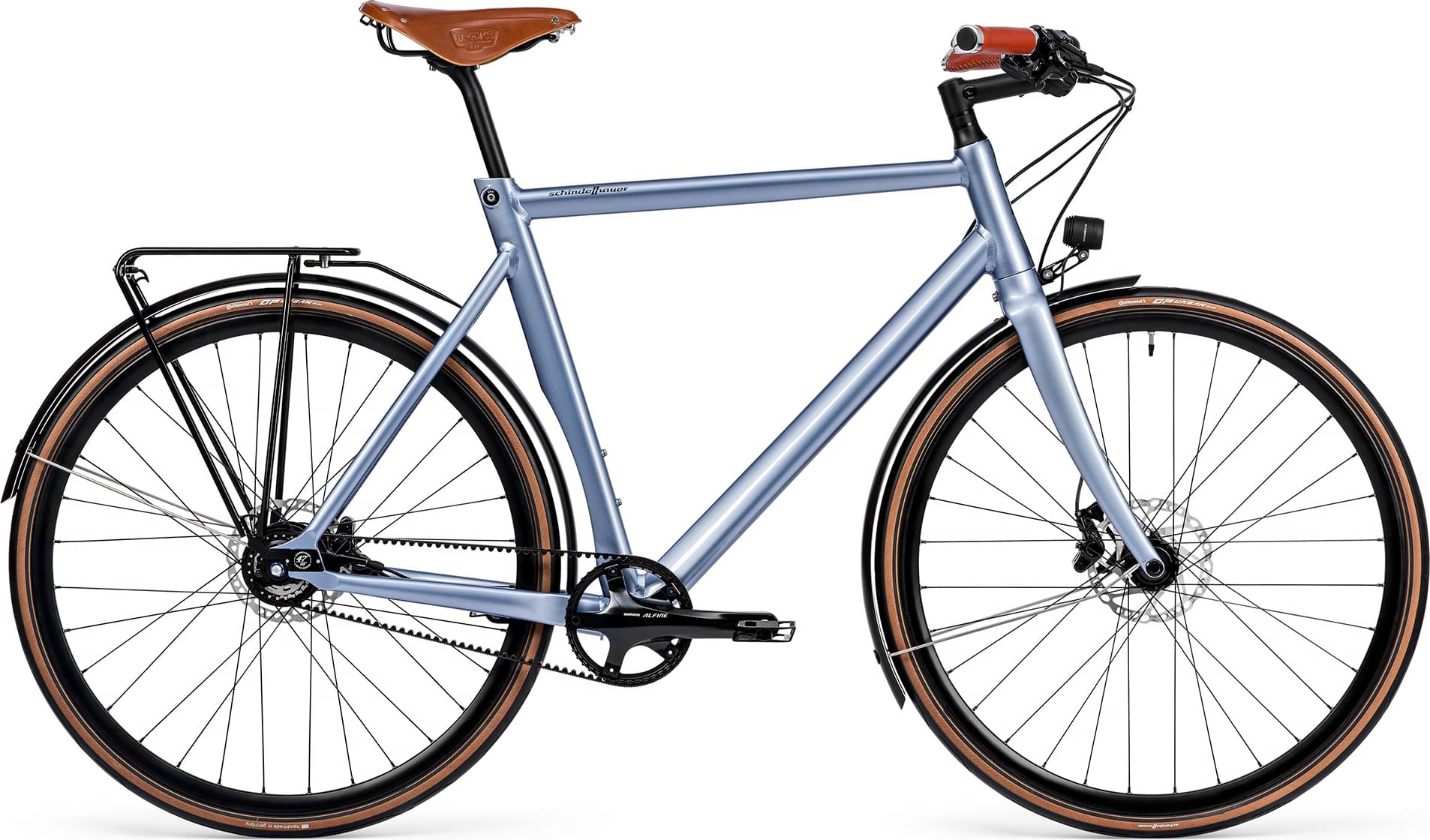

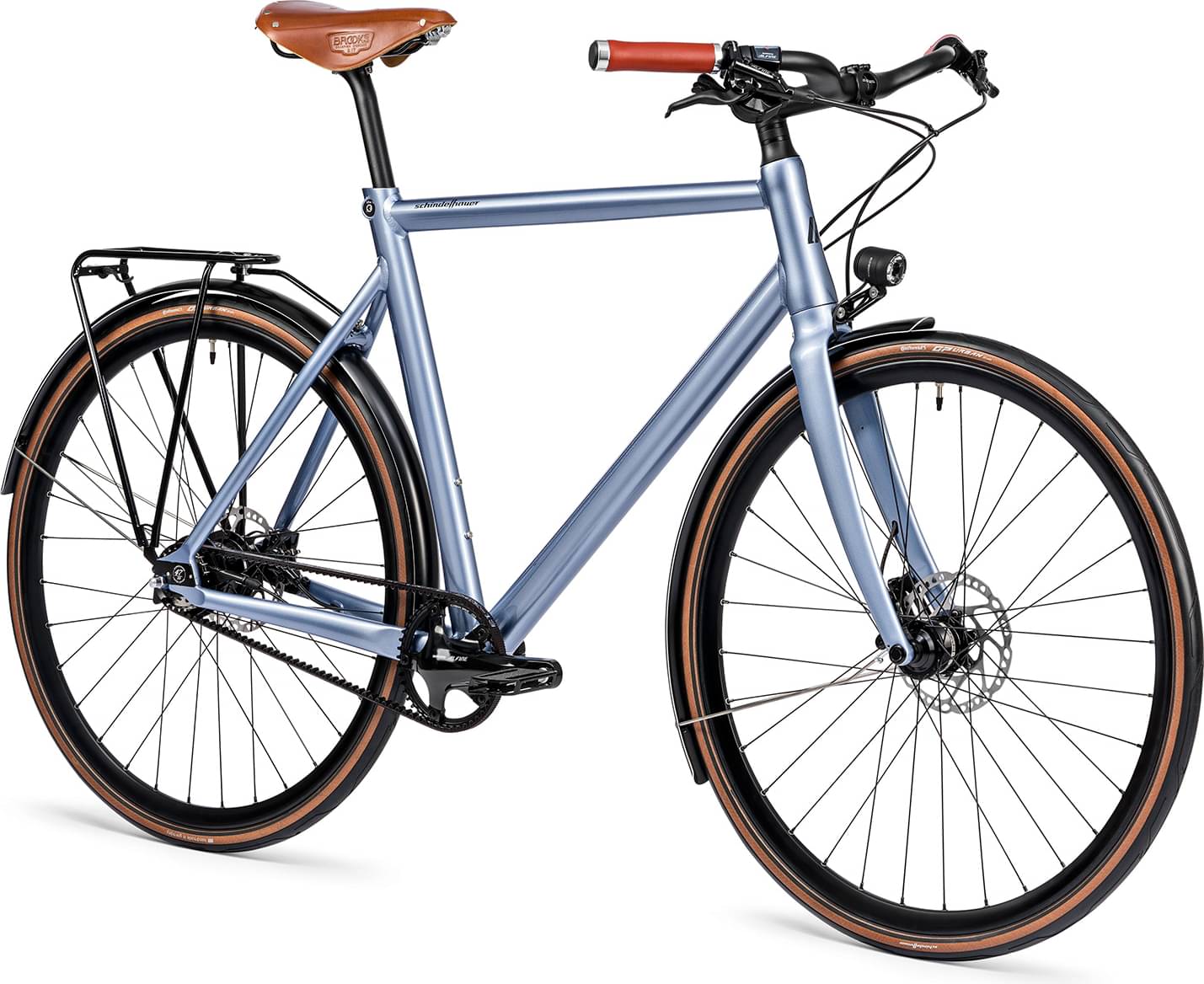

schindelhauer Friedrich XI 2023
2023 Urban
Estimate price |
3,484$
Weight | 13.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alfine -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
163cm - 177cm
LG
174cm - 187cm
XL
184cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded
Suspension Fork
Aluminium fork (tapered), 15mm through-axle, for flat mount disc brakes
Drivetrain
Shift Levers
Shimano - Alfine 11-speed internal gear hub
Crank
Shimano - Alfine Hollowtech II
Bottom Bracket
BSA, Shimano - Alfine Hollowtech II
Pedals
Schindelhauer - Urban Pedal, aluminium, CNC machined
Wheels
Rims
Shutter Precision - PD-8X hub dynamo disc, Shimano - Alfine 8-/11-speed internal gear hub, Alexrims - CXD26 rims with eyelets, Sapim - Race spokes, 3-cross and 2-cross laced
Tires
Continental - GP Urban Classic 35-622
Brakes
Brakes
Shimano - Alfine S7000 disc brake (hydraulic), 160mm
Cockpit
Stem
Schindelhauer
Handlebar
Satori - Noirette Plus, aluminium
Grips
Schindelhauer - ergo leather grips
Headset
Tange Seiki - integrated, tapered 1 1/8“-1,5“
Seat
Saddle
Brooks - B17
Seatpost
Schindelhauer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.371 mm | 1.356 mm | 1.354 mm |
| Stack | 580 mm | 594 mm | 608 mm |
| Reach | 423 mm | 438 mm | 449 mm |
| Top Tube Length | 585 mm | 610 mm | 625 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1072 mm | 1093 mm | 1108 mm |
| Standover Height | 820 mm | 845 mm | 856 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 163 cm | 174 cm | 184 cm |
| Rider Max Height | 177 cm | 187 cm | 198 cm |
Model Overview
Friedrich XI is part of the Schindelhauer Friedrich model. Schindelhauer released 5 bikes variations of this model so far. Take a sneak peek at all Schindelhauer Friedrich bikes models from 2023, by clicking here.
Model range prices
Schindelhauer Friedrich VIII/XI 2023 is the most affordable bike of this model and has a price of 2920$. On the other hand, Schindelhauer Friedrich XI 2023, is the most expensive and costs 3180$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter bikes average price
If you want an acceptable Commuter bike you should know that the average price is 762$. However, this doesn’t mean that if you spend less money on a Commuter bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3180$. Doing a quick comparison, we notice that Friedrich XI price is 317.32% higher than the average cost of a Commuter bike.
Average weight for Commuter bikes
If we make a quick analysis of the average weight of a Commuter bike, we get 13.77 kg (30.36 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Friedrich XI weighs 13.2 kg (29.1 lbs) and is slightly lighter than the average. In other words, this model is 4.32% lighter than the average Commuter bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
When it comes to wheels, the Friedrich XI bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Schindelhauer Friedrich XI is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Friedrich XI comes in 3 sizes, that range from 163 cm – 198 cm (5.35 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
