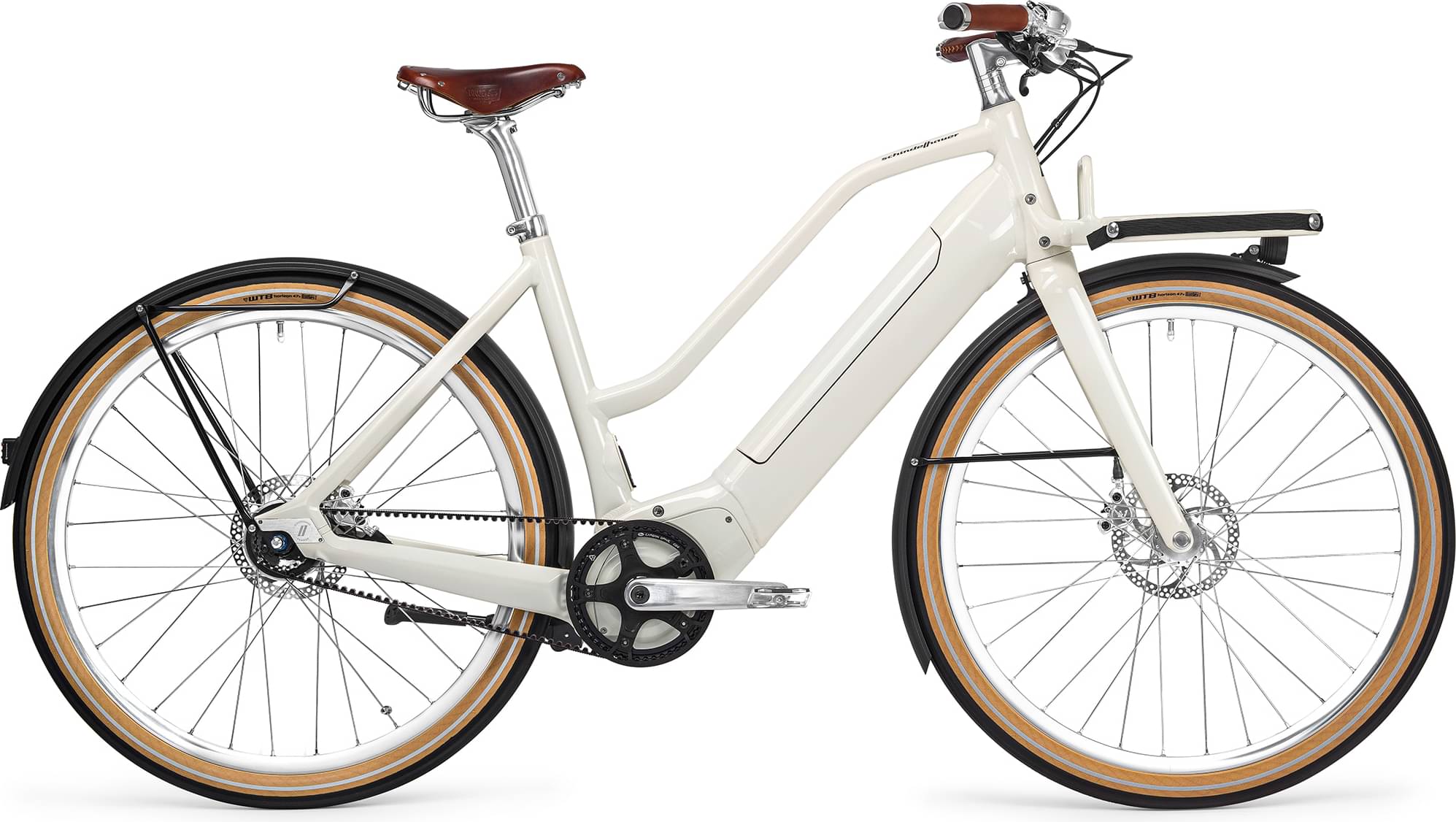

schindelhauer Hannah 2022
2022 E-bike
Estimate price |
5,811$
Weight | 23.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset Alfine -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch - Powertube 500, intube battery, energy: 500 Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 175cm
MD
173cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted tubing , forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded
Suspension Fork
Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
Drivetrain
Shift Levers
Shimano - Alfine 8-speed internal gear hub
Crank
Miranda - Delta
Pedals
Schindelhauer - Urban Pedal, aluminium, CNC machined
Wheels
Rims
Schindelhauer - high flange front hub disc, Shimano - Alfine 8-speed internal gear hub, Alexrims - EXR25 rims with eyelets, Sapim - Strong spokes, 3-cross and 2-cross laced
Tires
WTB - Horizon 47-584, with reflex stripes
Brakes
Brakes
Formula - CURA disc brakes (hydraulic), 160 mm
Cockpit
Stem
Satori - Stealth, aluminium
Handlebar
Satori - Noirette, aluminium
Grips
Schindelhauer - ergo leather grips
Headset
Tange Seiki - integrated, 1 1/8-1.5
Seat
Saddle
Brooks - B17 S lady
Seatpost
Schindelhauer
Motor & Battery
Motor
Bosch - Active Line Plus, power: 250 W, torque: 50 Nm, max. support up to 25 km/h
Battery
Bosch - Powertube 500, intube battery, energy: 500 Wh
Remote
Bosch - Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.502 mm | 1.365 mm |
| Stack | 610 mm | 610 mm |
| Reach | 406 mm | 447 mm |
| Top Tube Length | 590 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Head Tube Angle | 72.5 ° | 72.5 ° |
| Head Tube Length | 200 mm | 200 mm |
| Chainstay Length | 450 mm | 450 mm |
| Wheelbase | 1067 mm | 1107 mm |
| Standover Height | 665 mm | 651 mm |
| Wheels | 650 | 650 |
| Rider Min Height | 158 cm | 173 cm |
| Rider Max Height | 175 cm | 186 cm |
About this model
Hannah is a Schindelhauer E Hannah model. Schindelhauer launched 3 e-bikes of this model so far. Take a sneak peek at all Schindelhauer E Hannah e-bikes models from 2022, by clicking here.
Model range prices
Schindelhauer Hannah 2022 is the cheapest e-bike model and costs 5304$. Schindelhauer Hannah enviolo 2022 is the most expensive one and costs 5941$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Schindelhauer Hannah price was 5304$. Doing a quick comparison, we notice that Hannah price is 106.46% higher than the average cost of a Commuter e-bike.
Commuter e-bikes average weight
Commuter e-bikes weigh an average of 25.2 kg (55.56 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit lighter than average, Hannah has a weight of 23.7 kg (52.25 lbs). In other words, this model is 6.33% lighter than the average Commuter e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Hannah components
Fork material
Hannah has an aluminum fork, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
When leaving the production line, the Hannah model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Hannah has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 2 sizes available for this model. Rider height can be anywhere between 158 cm – 186 cm (5.18 ft – 6.1 ft). In short, it won’t be difficult to find the right one for you.
