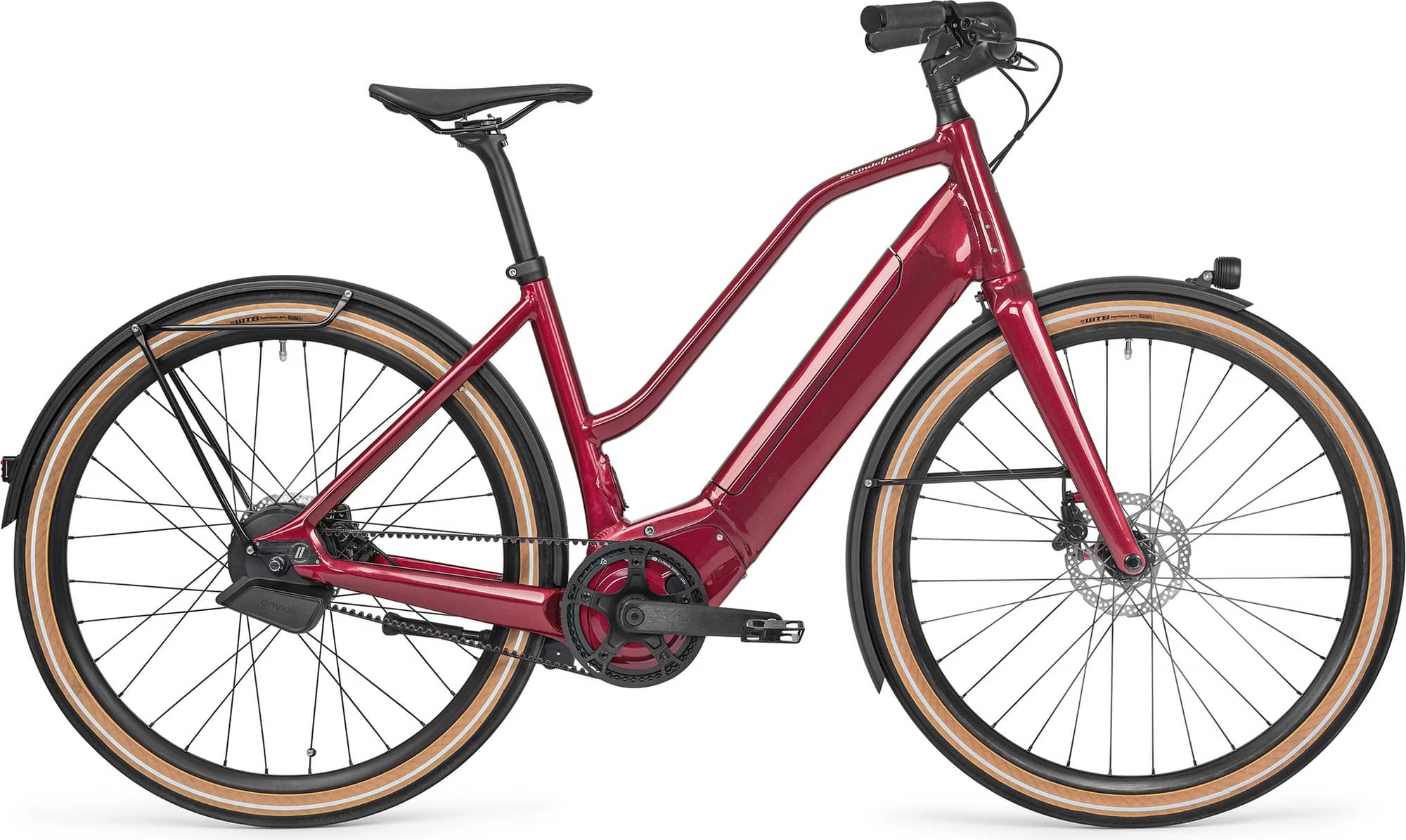

schindelhauer Hannah enviolo 2022
2022 E-bike
Estimate price |
6,509$
Weight | 24.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Suspension Rigid -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch – Powertube 500, intube battery, energy: 500 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 175cm
MD
173cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted tubing , forged motor bracket, multi-cell down tube, forged dropouts with slider-belt-tensioning-system and Schindelhauer belt port, integrated seat post clamp, internal cable routing, smooth welded
Suspension Fork
Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes
Drivetrain
Shift Levers
ENVIOLO TR (steples shifting) - AUTOMATiQ (eShift)
Crank
Miranda – Delta
Pedals
Schindelhauer – Urban Pedal, aluminium, CNC machined
Wheels
Rims
Schindelhauer – high flange front hub disc, ENVIOLO TR, Alexrims – EXR25 rims with eyelets, Sapim – Race spokes, 3-cross and 2-cross laced
Tires
WTB – Horizon 47-584, with reflex stripes
Brakes
Brakes
Shimano - MT401 disc brakes (hydraulic), 160 mm
Cockpit
Stem
Satori – Stealth, aluminium
Handlebar
Satori – Seagull, aluminium
Grips
Schindelhauer (bolt-on)
Headset
Tange Seiki – integrated, 1 1/8-1.5
Seat
Saddle
FABRIC – Scoop Shallow Sport
Seatpost
Schindelhauer
Motor & Battery
Motor
Bosch – Performance Line (Cruise), power: 250 W, torque: 65 Nm, max. support up to 25 km/h
Battery
Bosch – Powertube 500, intube battery, energy: 500 Wh
Remote
Bosch – KIOX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.502 mm | 1.365 mm |
| Stack | 610 mm | 610 mm |
| Reach | 406 mm | 447 mm |
| Top Tube Length | 590 mm | 630 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Head Tube Angle | 72.5 ° | 72.5 ° |
| Head Tube Length | 200 mm | 200 mm |
| Chainstay Length | 450 mm | 450 mm |
| Wheelbase | 1067 mm | 1107 mm |
| Standover Height | 665 mm | 651 mm |
| Wheels | 650 | 650 |
| Rider Min Height | 158 cm | 173 cm |
| Rider Max Height | 175 cm | 186 cm |
About this model
Hannah enviolo is part of the Schindelhauer E Hannah model. Schindelhauer released 3 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Schindelhauer Hannah 2022 is the most affordable e-bike of this model and has a price of 5304$. On the other hand, Schindelhauer Hannah enviolo 2022, is the most expensive and costs 5941$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2022 and its price was 5941$. Comparing the average cost of a Commuter e-bike to this one, you will see that Hannah enviolo price is 131.26% higher.
Commuter e-bikes average weight
On a deeper look, we notice that the average weight of a Commuter e-bike is 25.2 kg (55.56 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, Hannah enviolo has a weight of 24.7 kg (54.45 lbs). To sum up, it’s 2.02% lighter than the average weight of Commuter e-bikes.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Hannah enviolo components
Fork material
The fork on this e-bike is made out of aluminum, so there won’t be much extra weight added to the e-bike. However, they are not so stiff as carbon forks are.
Wheels
When leaving the production line, the Hannah enviolo model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Hannah enviolo comes in 2 sizes, that range from 158 cm – 186 cm (5.18 ft – 6.1 ft). In conclusion, finding one for you shouldn’t be a problem.
