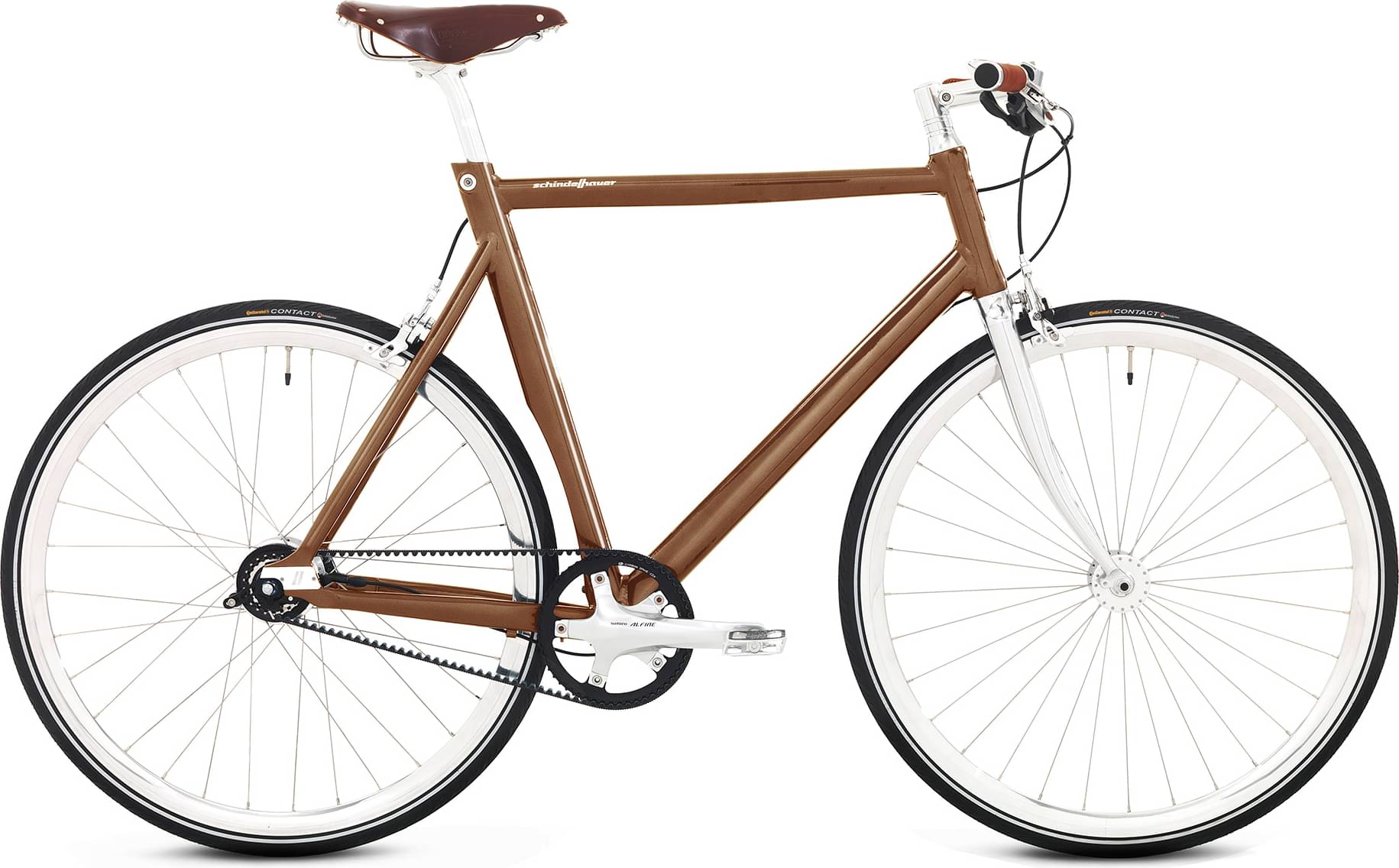

schindelhauer Ludwig XI 2022
2022 Urban
Estimate price |
2,734$
Weight | 10.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alfine -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 162cm
SM
159cm - 172cm
MD
169cm - 181cm
LG
178cm - 190cm
XL
187cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium (AL6061-T6), triple butted aero tubing, forged dropouts with slider belt tensioning system and Schindelhauer - belt port, integrated seat post clamp, internal cable routing, smooth welded
Suspension Fork
curved aluminium fork
Drivetrain
Shift Levers
Shimano - Alfine 8-speed / 11-speed internal gear hub
Crank
Shimano - Alfine Hollowtech II
Bottom Bracket
BSA, Shimano - Alfine Hollowtech II
Pedals
Schindelhauer - Urban Pedal, aluminium, CNC machined
Wheels
Rims
Schindelhauer - high flange front hub, Shimano - Alfine 8-/11-speed internal gear hub, Alexrims - CX30 rims, Sapim - Race spokes, radial and 2-cross laced
Tires
Continental – Contact Urban with reflective stripes 28-622
Brakes
Brakes
Tektro - R539, Tektro - FL750
Cockpit
Stem
Schindelhauer
Handlebar
Schindelhauer - aluminium moon bar
Grips
Schindelhauer - ergo leather grips
Headset
Tange Seiki - integrated
Seat
Saddle
Brooks - B17
Seatpost
Schindelhauer
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.351 mm | 1.383 mm | 1.417 mm | 1.396 mm | 1.379 mm |
| Stack | 535 mm | 549 mm | 564 mm | 578 mm | 597 mm |
| Reach | 396 mm | 397 mm | 398 mm | 414 mm | 433 mm |
| Top Tube Length | 540 mm | 550 mm | 560 mm | 580 mm | 610 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Head Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 135 mm | 150 mm | 165 mm | 180 mm | 200 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 1006 mm | 1012 mm | 1017 mm | 1038 mm | 1063 mm |
| Standover Height | 780 mm | 801 mm | 822 mm | 842 mm | 865 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 169 cm | 178 cm | 187 cm |
| Rider Max Height | 162 cm | 172 cm | 181 cm | 190 cm | 198 cm |
Model Overview
Ludwig XI belongs to the Schindelhauer Ludwig model. Schindelhauer released 6 bikes variations of this model so far. You can easily view all of the Schindelhauer Ludwig bikes models from 2022, here.
Model range prices
Schindelhauer Ludwig VIII/XI 2022 is the most affordable bike of this model and has a price of 2224$. On the other hand, Schindelhauer Ludwig XIV 2022, is the most expensive and costs 4136$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hipster bikes average price
According to our calculations, the average cost of a Hipster bike that is reliable is 612$. However, this doesn’t mean that if you spend less money on a Hipster bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2022 and its price was 2495$. If we compare this with the average Hipster bike cost we notice that the price is 307.68% more expensive.
Hipster bikes average weight
The average weight for Hipster bikes is 9.81 kg (21.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, Ludwig XI has a weight of 10.3 kg (22.71 lbs). In conclusion, the average Hipster bike weighs 4.99% less than Ludwig XI.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
Ludwig XI has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels
The wheels on Ludwig XI are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Ludwig XI has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Ludwig XI comes in 5 sizes, that range from 151 cm – 198 cm (4.95 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
