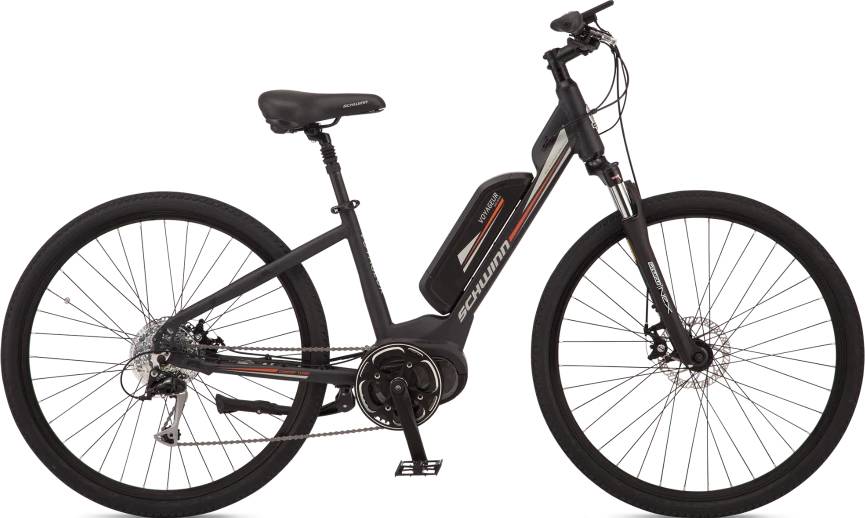

Schwinn eVoyageur Mid-Drive Step-Thru 2020
2020 E-bike
Estimate price |
2,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus -
Suspension Hardtail -
Motor Bafang hub-drive -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
SR Suntour NEX, 700c, steel steerer, hydraulic lockout, 100 mm QR, QR, 63 mm travel
Drivetrain
Shift Levers
Shimano Altus SL-3000, 8
Crank
Prowheel, 42T
Bottom Bracket
Square taper, 68 mm
Pedals
Urban platform, aluminum
Wheels
Front Hub
Aluminum, ball bearing, 100 mm QR, 32H, 6-bolt
Rear Hub
Aluminum, ball bearing, 135 mm bolt-on, 32H, 6-bolt
Rims
Aluminum, double wall, 20 mm ID, 32H, non tubeless
Spokes
14G, stainless steel, black
Tires
Urban road, 700c x 35c, wire bead
Brakes
Brakes
Tektro MD-M280, mechanical disc, aluminum, 160 mm rotor
Cockpit
Stem
Schwinn, aluminum, threadless front load, 6°, 31.8 mm clamp
Handlebar
Schwinn, aluminum, 30 mm rise, 31.8 mm clamp
Grips
Semi-ergo
Headset
Threadless, retainer bearing
Seat
Saddle
Schwinn classic urban, steel rails
Seatpost
Aluminum, 300 mm, 20 mm offset, 31.6 mm
Motor & Battery
Motor
Bafang MaxDrive midmotor drive unit provides smooth positive assist to your pedaling input
About this model
eVoyageur Mid-Drive Step-Thru belongs to the Schwinn E Evoyageur model. Schwinn launched 4 e-bikes of this model so far. Take a sneak peek at all Schwinn E Evoyageur e-bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Schwinn eVoyageur Hub-Drive 2020 has a starting price of 1899$. Schwinn eVoyageur Mid-Drive Step-Thru 2020 on the other hand is the most expensive at 2599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 2599$. In conclusion, this e-bike price is 4.8% higher than the price of the average Hybrid e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
eVoyageur Mid-Drive Step-Thru components
Fork
The SunTour NEX is included from the factory. It has a travel distance of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this e-bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When leaving the production line, the eVoyageur Mid-Drive Step-Thru model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The eVoyageur Mid-Drive Step-Thru has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Schwinn eVoyageur Mid-Drive Step-Thru 2020 is available in one size only. In conclusion, make sure it fits you, or look for another model.
