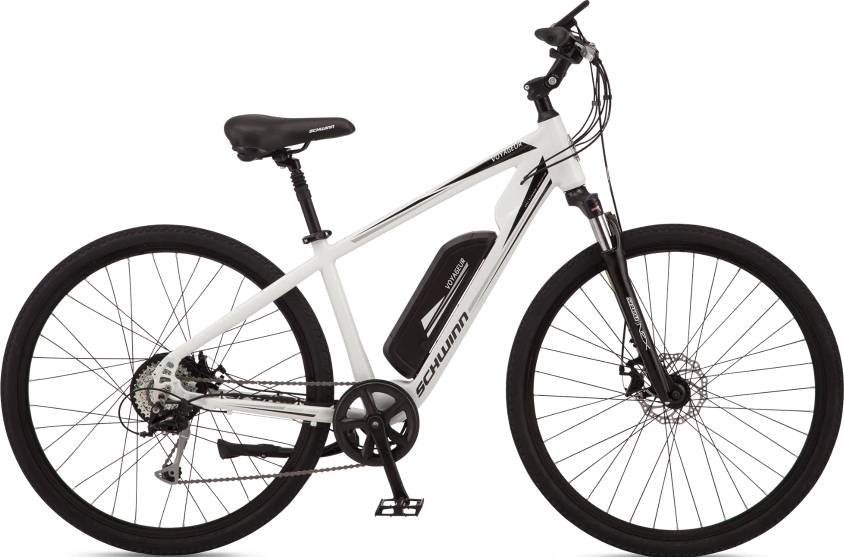

Schwinn eVoyageur Hub-Drive 2020
2020 E-bike
Estimate price |
1,899$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Altus -
Suspension Hardtail -
Motor 250W hub-drive -
Battery Choose from 5 levels of assist to tune the 250 watt motor to give you just the right amount of boost whatever terrain you are on -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
SR Suntour NEX, 700c, steel steerer, hydraulic lockout, 100 mm QR, QR, 63 mm travel
Drivetrain
Shift Levers
Shimano Altus SL-3000, 8
Crank
Prowheel, 42T
Bottom Bracket
Euro cartridge bearing, square taper, 68 mm
Chain
KMC Z510
Pedals
Urban platform, aluminum
Wheels
Front Hub
Aluminum, ball bearing, 100 mm QR, 32H, 6-bolt
Rear Hub
Aluminum, ball bearing, 135 mm bolt-on, 32H, 6-bolt
Rims
Aluminum, double wall, 20 mm ID, 32H
Spokes
14G, stainless steel, black
Tires
Urban road, 700c x 35c, wire bead
Brakes
Brakes
Mechanical disc, aluminum, 160 mm rotor
Cockpit
Stem
Schwinn, aluminum, threadless front load, 6°, 31.8 mm clamp
Handlebar
Schwinn, aluminum, 30 mm rise, 31.8 mm clamp
Grips
Semi-ergo
Headset
Threadless, retainer bearing
Seat
Saddle
Steel rails
Seatpost
Aluminum, 300 mm, 20 mm offset, 31.6 mm
Motor & Battery
Motor
Choose from 5 levels of assist to tune the 250 watt motor to give you just the right amount of boost whatever terrain you are on
Battery
Choose from 5 levels of assist to tune the 250 watt motor to give you just the right amount of boost whatever terrain you are on
About this model
eVoyageur Hub-Drive belongs to the Schwinn E Evoyageur model. Schwinn launched 4 e-bikes of this model so far. You can easily view all of the Schwinn E Evoyageur e-bikes models from 2020, here.
Model range prices
The most economical model, the Schwinn eVoyageur Hub-Drive Step-Thru 2020 has a starting price of 1899$. Schwinn eVoyageur Mid-Drive Step-Thru 2020 on the other hand is the most expensive at 2599$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 1899$. In conclusion, this e-bike price is 30.6% smaller than the price of the average Hybrid e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
This e-bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels size
The eVoyageur Hub-Drive 2020 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This e-bike has one size only, so it might not fit you. In conclusion, make sure it fits you, or look for another model.
