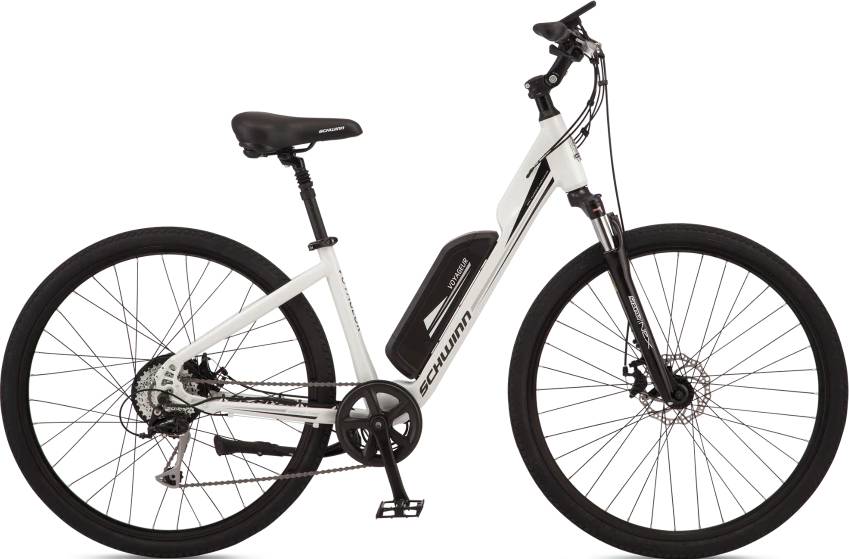

Schwinn eVoyageur Hub-Drive Step-Thru 2020

2020 E-bike
Estimate price | 1,899$
E-bike
Open compare Use advisor
Schwinn Evoyageur Hub Drive Step Thru 2020

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 700c
  • Travel Front 63mm
  • Fork SunTour NEX
  • Groupset Altus
  • Suspension Hardtail
  • Motor 250W hub-drive
  • Battery Choose from 5 levels of assist to tune the 250 watt motor to give you just the right amount of boost whatever terrain you are on
  • Brakes Mechanical Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

6061 aluminum, internal cable routing, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube

Suspension Fork

SR Suntour NEX, 700c, steel steerer, hydraulic lockout, 100 mm QR, QR, 63 mm travel

Drivetrain

Shift Levers

Shimano Altus SL-3000, 8

Crank

Prowheel, 42T

Bottom Bracket

Square taper, 68 mm

Chain

KMC Z510

Pedals

Urban platform, aluminum

Wheels

Front Hub

Aluminum, ball bearing, 100 mm QR, 32H, 6-bolt

Rear Hub

Aluminum, ball bearing, 135 mm bolt-on, 32H, 6-bolt

Rims

Aluminum, double wall, 20 mm ID, 32H

Spokes

14G, stainless steel, black

Tires

Urban road, 700c x 35c, wire bead

Brakes

Brakes

Tektro MD-M280, mechanical disc, aluminum, 160 mm rotor

Cockpit

Stem

Schwinn, aluminum, threadless front load, 6°, 31.8 mm clamp

Handlebar

Schwinn, aluminum, 30 mm rise, 31.8 mm clamp

Grips

Semi-ergo

Headset

Threadless, retainer bearing

Seat

Saddle

Schwinn classic urban, steel rails

Seatpost

Aluminum, 300 mm, 20 mm offset, 31.6 mm

Motor & Battery

Motor

Choose from 5 levels of assist to tune the 250 watt motor to give you just the right amount of boost whatever terrain you are on

Battery

Choose from 5 levels of assist to tune the 250 watt motor to give you just the right amount of boost whatever terrain you are on

Model Overview

eVoyageur Hub-Drive Step-Thru is a Schwinn E Evoyageur model. 4 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.

Model range prices

Schwinn eVoyageur Hub-Drive 2020 is the cheapest e-bike model and costs 1899$. Schwinn eVoyageur Mid-Drive Step-Thru 2020 is the most expensive one and costs 2599$.

Safety

Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.

Average price for Hybrid e-bikes

According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.

When Schwinn released this model in 2020, its price was 1899$. Doing a quick comparison, we notice that eVoyageur Hub-Drive Step-Thru price is 30.6% lower than the average cost of a Hybrid e-bike.

Internal Cable Routing

This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.

Overview of components

Fork

Schwinn eVoyageur Hub-Drive Step-Thru 2020 e-bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.

Fork material

The fork is made out of steel, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.

Wheels size

When it comes to wheels, the eVoyageur Hub-Drive Step-Thru e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.

Brakes

When you want to stop the bike in time, the brakes are vital. The eVoyageur Hub-Drive Step-Thru has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.

Sizes

This e-bike has one size only, so it might not fit you. In short, make sure you double-check if it fits you.
