Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork Zoom
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum, 26" / 27.5" mountain tuned geometry, Epicenter seat stays, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
Zoom HL565, 26"/27.5", steel steerer, 9mm x 100mm QR, 80mm travel
Drivetrain
Rear Derailleur
Shimano Tourney RD-TY300
Front Derailleur
Shimano Tourney, 31.8 mm clamp

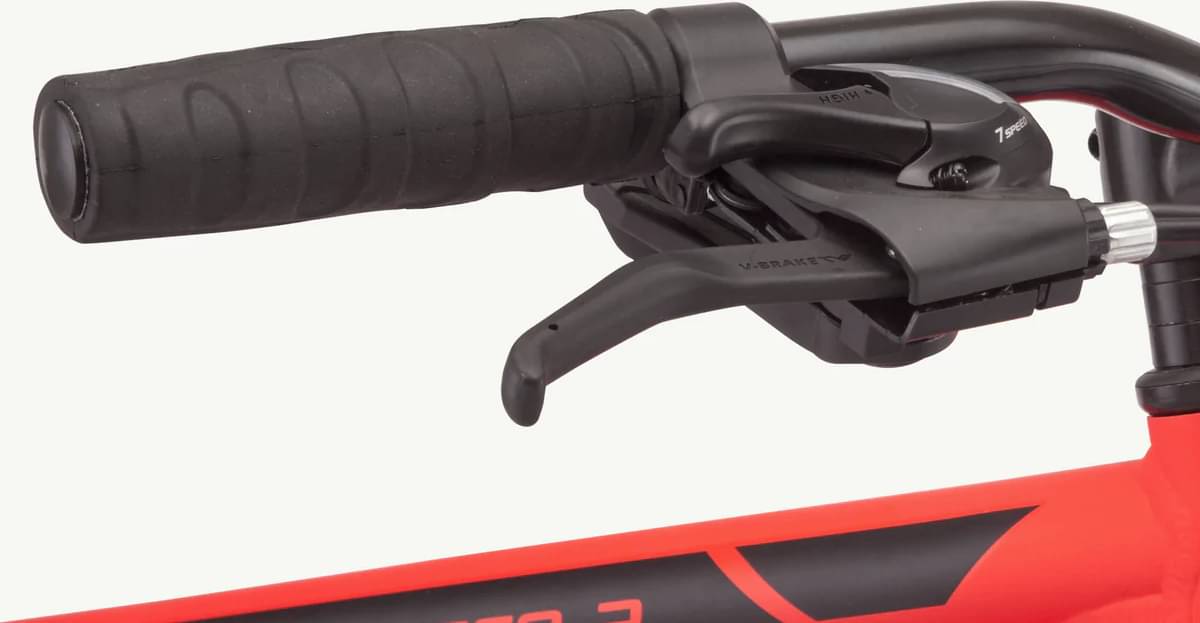

Shift Levers
Shimano EF41 EZ-FIRE, 21-speed
Crank
Schwinn aluminum mountain, 42/34/24T
Bottom Bracket
VP, cartridge, square taper, 68 mm
Chain
KMC Z7
Pedals
Schwinn mountain, nylon
Wheels
Rear Hub
Schwinn mountain, aluminum, 10 mm x 135 mm QR, 32H
Rims
Alex DC26, aluminum, double wall, 32H
Spokes
14G, stainless steel
Tires
Schwinn mountain, 26 in / 27.5 in x 2.1 in, wire bead
Brakes
Brakes
Radius V993, linear pull, aluminum
Cockpit
Stem
Schwinn, aluminum, threadless, 10° rise, 25.4 mm clamp
Handlebar
Schwinn, steel, 20 mm rise, 25.4 mm clamp
Grips
Schwinn mountain Kraton
Headset
Threadless, EC34, loose ball bearing
Seat
Saddle
Schwinn mountain, steel rails
Seatpost
Aluminum, 300 mm, 15 mm offset, 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.5 mm | 1.44 mm |
| Bottom Bracket Height | 307 mm | 307 mm | 307 mm |
| Front Center | 632 mm | 657 mm | 683 mm |
| Rake | 40 mm | 40 mm | 40 mm |
| Trail | 87 mm | 87 mm | 87 mm |
| Stack | 593.5 mm | 602.9 mm | 612.3 mm |
| Reach | 380.7 mm | 402.8 mm | 425 mm |
| Top Tube Length | 564 mm | 589 mm | 614 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 445 mm | 495 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1056 mm | 1081 mm | 1107 mm |
| Bottom Bracket Drop | 48 mm | 48 mm | 48 mm |
| Standover Height | 741 mm | 777 mm | 811 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Mesa 3 completes the Schwinn Mesa model. Schwinn released 14 bikes variations of this model so far. Take a sneak peek at all Schwinn Mesa bikes models from 2022, by clicking here.
Model range prices
Schwinn Mesa 3 Step-Thru 2022 is the cheapest bike model and costs 579$. Schwinn Mesa 1 2022 is the most expensive one and costs 799$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 579$. Comparing the average cost of a Crosscountry bike to this one, you will see that Mesa 3 price is 229.02% smaller.
Overview of components

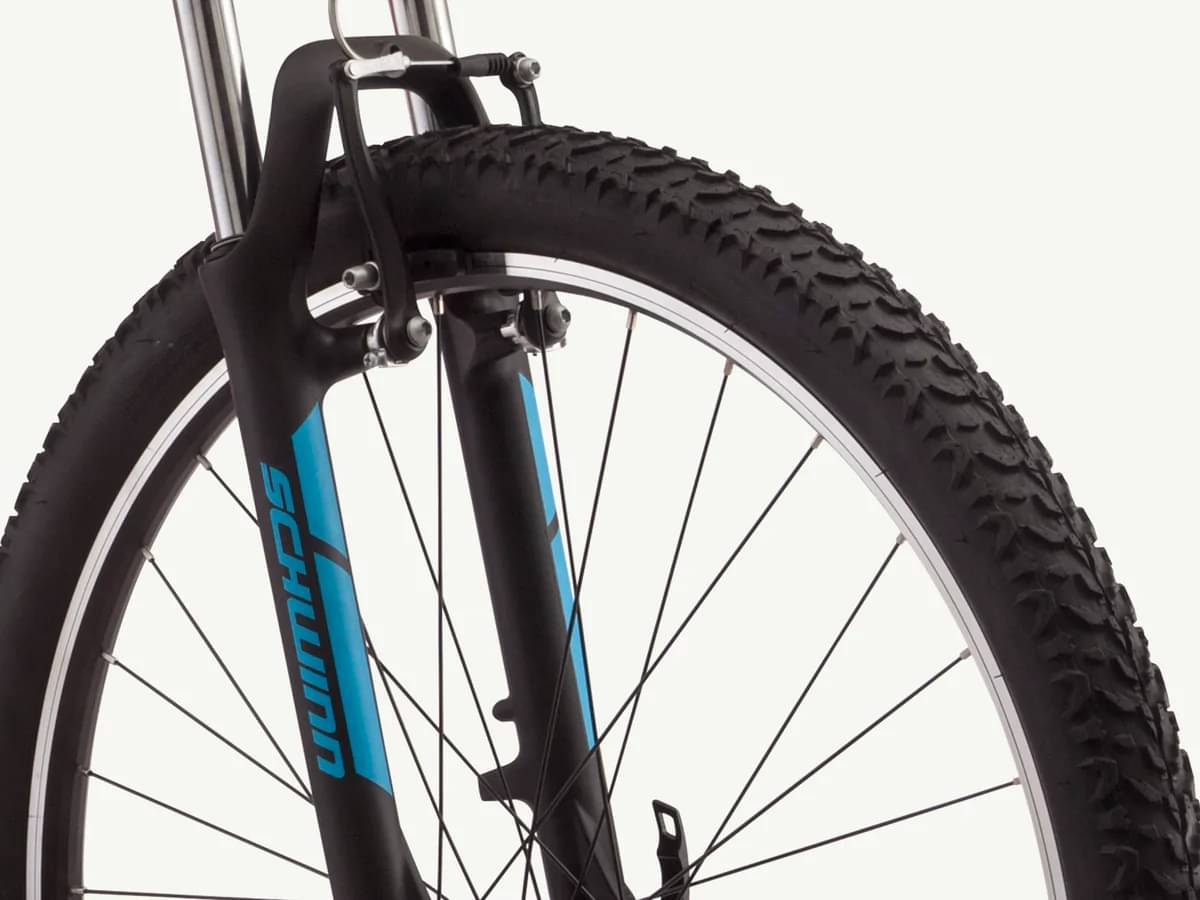

Fork
The Mesa 3 comes factory-installed with the Zoom fork. This has a travel range of 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels size
When leaving the production line, the Mesa 3 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.

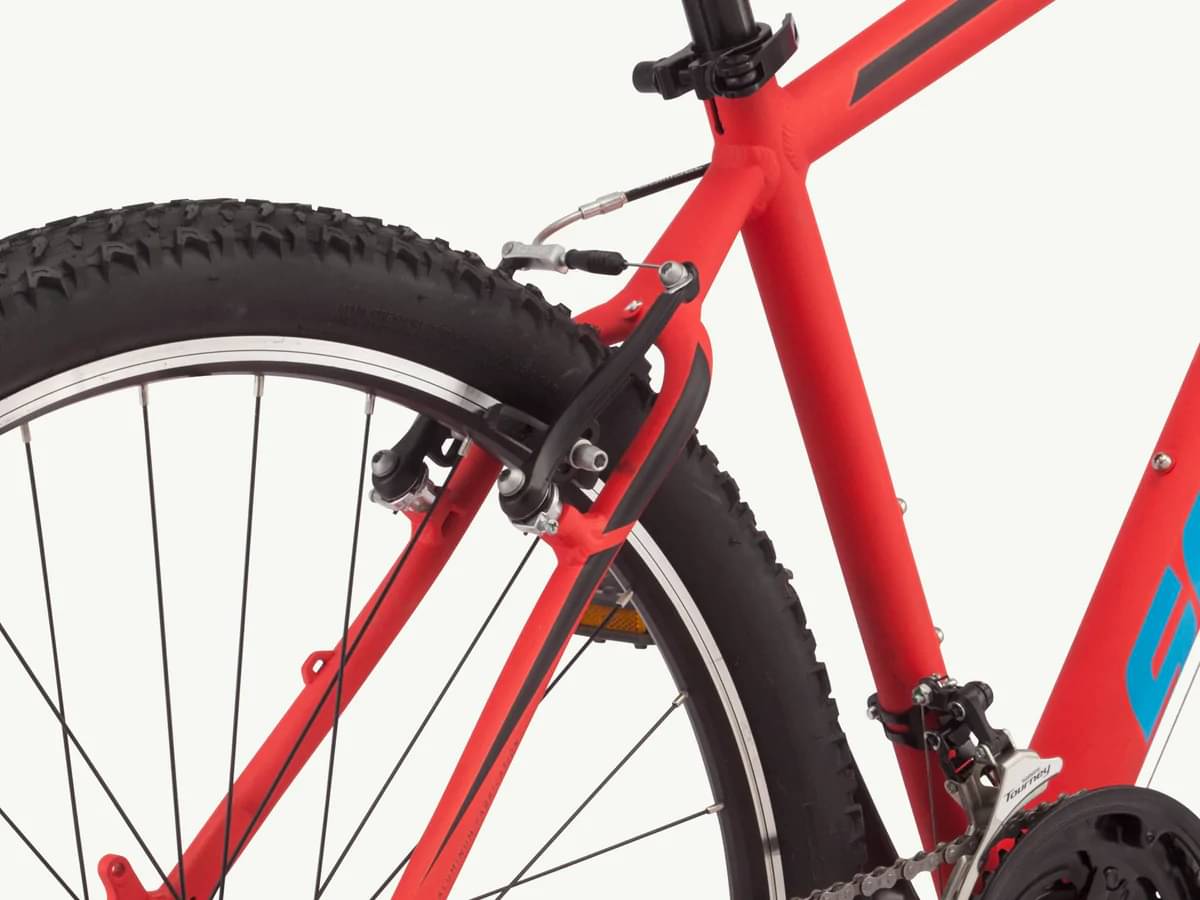

Brakes
When you want to stop the bike in time, the brakes are vital. The Mesa 3 has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
Schwinn Mesa 3 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
