Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Acera, Tourney -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

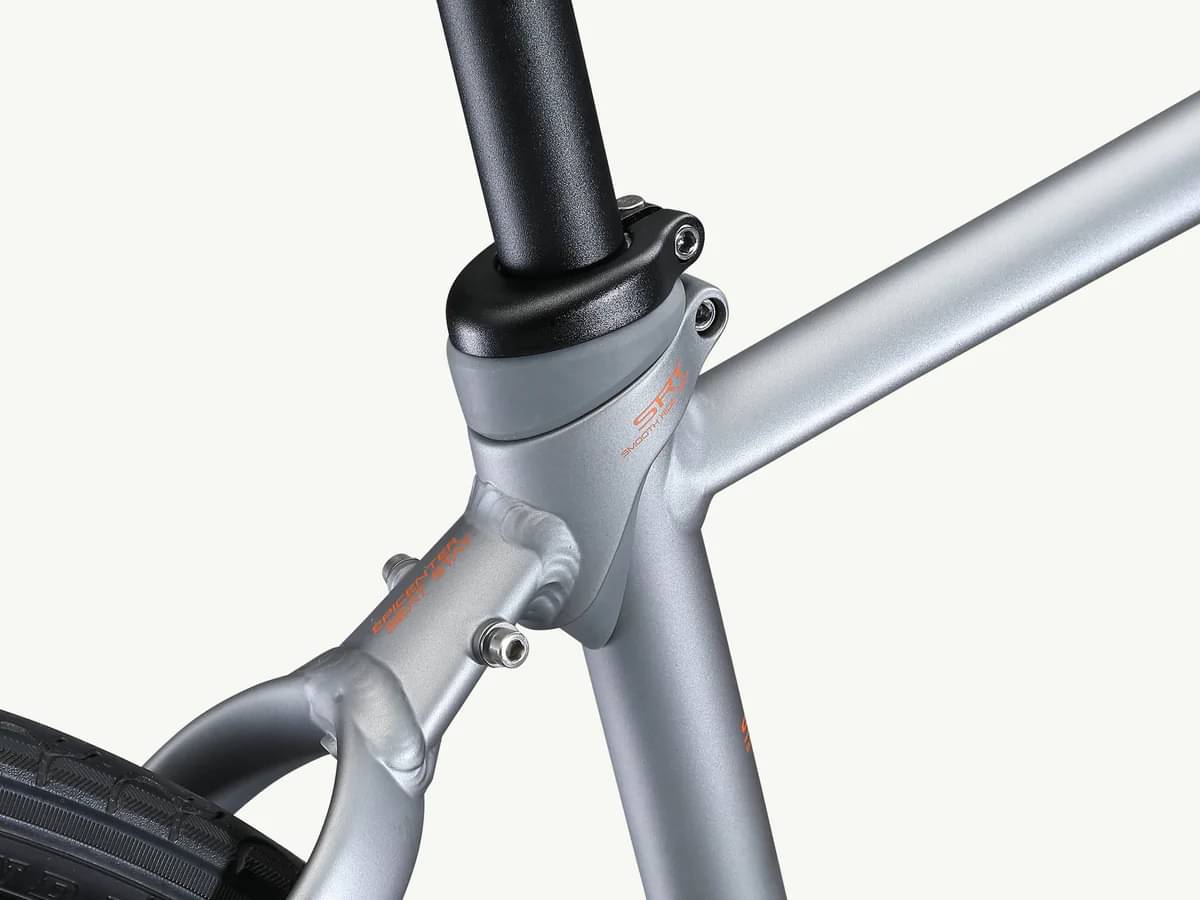

N LITENED 3 aluminum, 700c crossfit tuned geometry, S.R.T. (Smooth Ride Technology) Elastomer, 10 mm x 135 mm dropout, replaceable hanger, 1 1/8 in headtube
Suspension Fork
Schwinn alloy sport, 700c, aluminum steerer, 9 mm x 100 mm QR
Drivetrain
Rear Derailleur
Shimano Acera RD-M360
Front Derailleur
Shimano FD-TY700, 31.8 mm clamp
Shift Levers

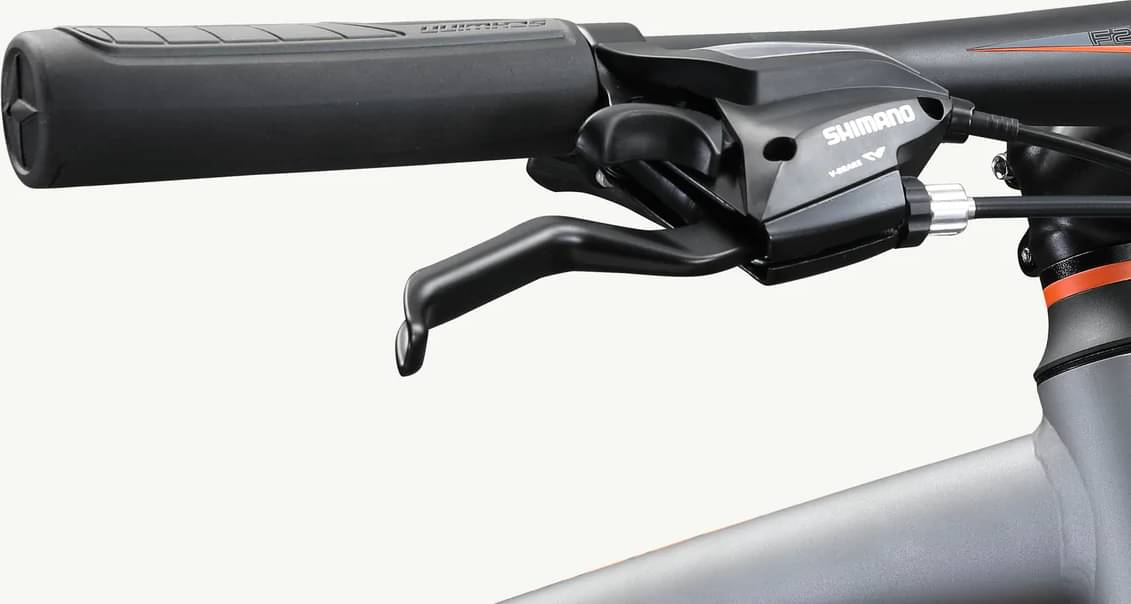

Shimano EF500 EZ-FIRE, 24-speed
Crank
SR Suntour XCE, 48/38/28T
Bottom Bracket
VP, cartridge, square taper, 68 mm
Chain
KMC Z8.1
Pedals
Schwinn sport, aluminum / nylon
Wheels
Rear Hub
Formula DC1422, aluminum, 10 mm x 135 mm QR, 32H, 6-bolt
Rims
Alex DC26, aluminum, double wall, 32H
Spokes
14G, stainless steel
Tires
Kenda Kwest, 700c x 35c, wire bead
Brakes
Brakes

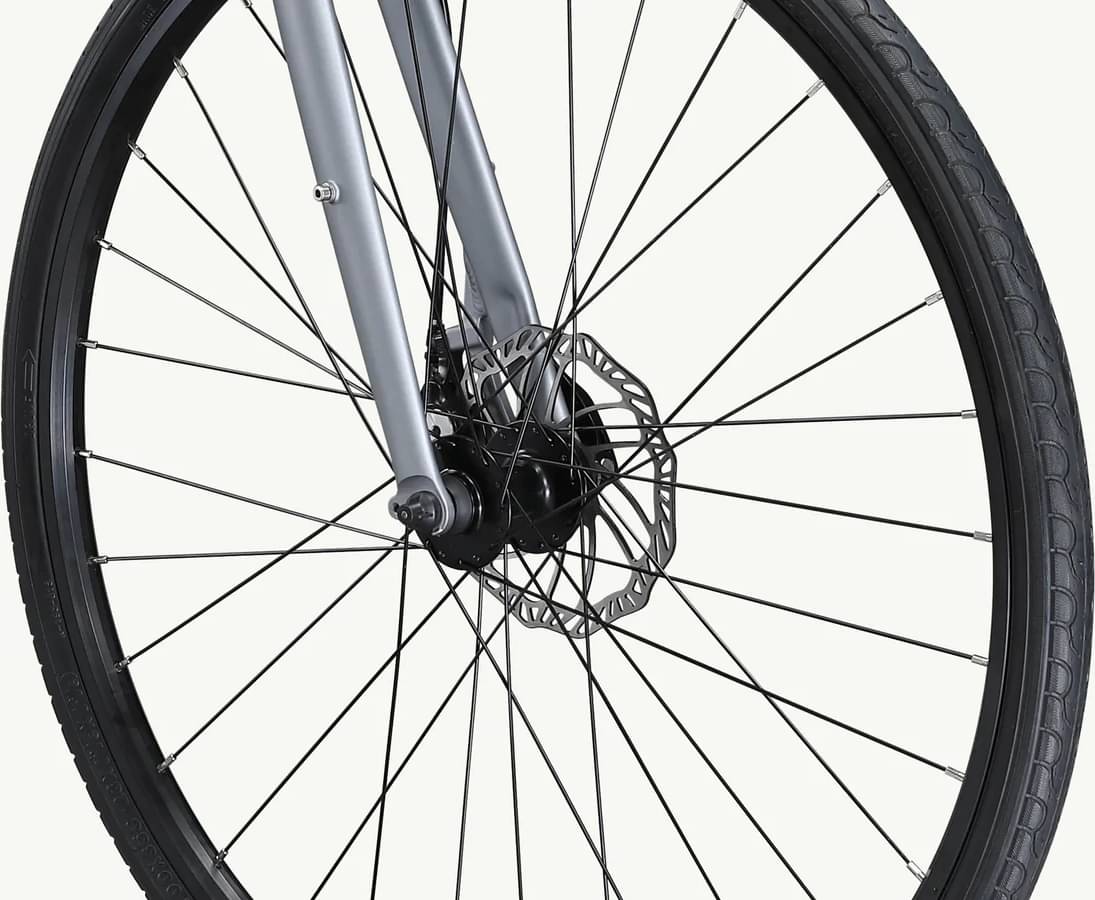

Promax DSK310, mechanical disc, aluminum, 160 mm rotor
Cockpit
Stem
Schwinn, aluminum, threadless, 7° rise, 31.8 mm clamp
Handlebar
Schwinn, double-butted aluminum, 620 mm width, 5 mm rise, 31.8 mm clamp
Grips
Schwinn ergo, dual density
Headset
Threadless, ZS44, semi-cartridge bearings
Seat
Saddle
Schwinn sport, steel rails
Seatpost
Aluminum, 350 mm, 25 mm offset, 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Front Center | 589 mm | 611 mm | 616 mm | 622 mm | 635 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 526 mm | 546 mm | 561 mm | 576 mm | 596 mm |
| Seat Tube Angle | 74 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm | 510 mm | 560 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm | 205 mm | 235 mm |
| Chainstay Length | 426 mm | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1004 mm | 1031 mm | 1036 mm | 1043 mm | 1056 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 70 mm | 70 mm |
| Standover Height | 741 mm | 746 mm | 769 mm | 800 mm | 847 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Vantage F2 completes the Schwinn Vantage model. There are 9 bikes that carry this model name. You can easily view all of the Schwinn Vantage bikes models from 2022, here.
Model range prices
Schwinn Vantage F3 2022 is the cheapest bike model and costs 769$. Schwinn Vantage F2 700c 2022 is the most expensive one and costs 939$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Fitness bikes
According to our math, the average price for a trustworthy Fitness bike is 656$. However, you could also get a good Fitness bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Schwinn Vantage F2 price was 939$. In conclusion, this bike price is 43.14% higher than the price of the average Fitness bike.
Vantage F2 components
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
When it comes to wheels, the Vantage F2 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Schwinn Vantage F2 has Mechanical Disc brakes installed. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
