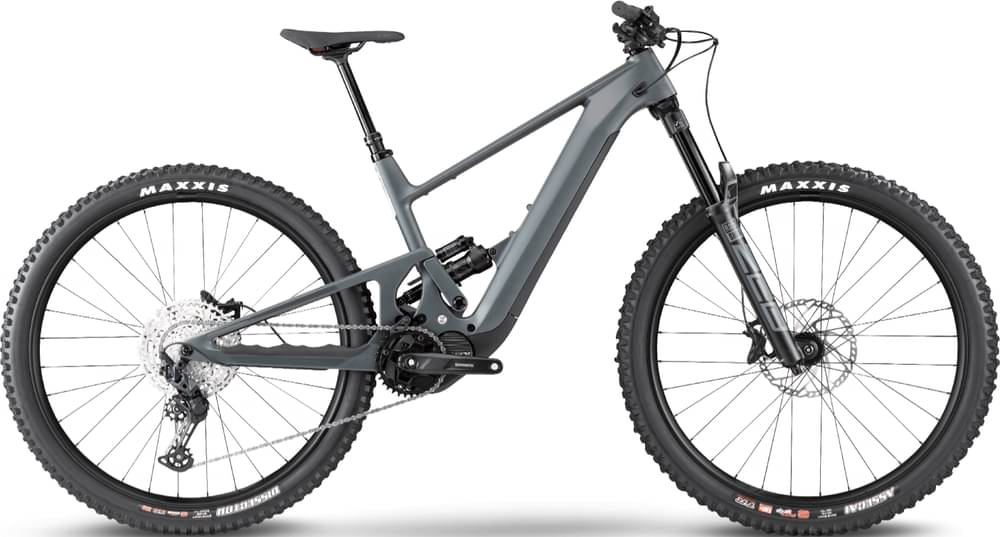

SCOR 4060 Z ST SLX USA 2022
2022 E-bike
Estimate price |
6,599$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox ZEB
-
Groupset SLX, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Darfon 36V 720Wh, Shimano Steps service included -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 170cm
MD
165cm - 180cm
LG
175cm - 190cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCOR 4060 Z full carbon frame, Lower-Link Driven Instant Center Linkage, 140mm rear wheel travel, Fully guided internal cable routing, Boost 148, SRAM Universal Derailleur Hanger, Lower ISCG 05 mount / Chainguide
Suspension Fork
RockShox ZEB, 150mm travel, Charger R damper, DebonAir air spring, Rebound adjust, 44mm rake, E-MTB rated
Rear Shock
RockShox Super Deluxe Select, Rebound adjust
Drivetrain
Rear Derailleur
Shimano Deore SLX (RD-M7100), 12 speed
Shift Levers
Shimano Deore XT (SL-M7100-R)
Cassette
Shimano Deore (CS-M6100-12), 10-51T, 12 Speed HYPERGLIDE+
Crank
Shimano FC-EM600, 165mm length, 34T Chainring (SM-CRE80-12-B)
Chain
Shimano Deore (CN-M6100)
Wheels
Front Hub
XDH-130, 32 spokes, Sealed cartridge bearings hubs
Rear Hub
XDH-130, 32 spokes, Sealed cartridge bearings hubs
Rims
XDH-130, 32 spokes, Sealed cartridge bearings hubs, 6061-T6 alloy rim; welded joint, 30mm internal width, Tubeless ready
Tires
Maxxis Assegai 29 x 2.5" (F) / Maxxis Dissector 29 x 2.4" (R), Compound: 3C Maxx Grip (F) / 3C Maxx Terra (R), Casing: EXO+ (F) / Double Down (R), Tubeless ready
Brakes
Brakes
Shimano BR-M6120, BL-M6100 levers, SM-RT66 rotors; 203mm
Cockpit
Stem
SCOR Alloy Stem, 3D forged, 31.6mm bar bore, 35mm lenght, 0° angle
Handlebar
SCOR Alloy Bar, 31.8mm clamp, 800mm wide, 20mm rise, 5° up sweep - 9° back sweep
Seat
Saddle
Fizik Terra Alpaca X5
Seatpost
X-Fusion Manic, S 125mm, M 150mm, L/XL 170mm travel
Motor & Battery
Motor
Shimano Steps EP8 (DU-EP800)
Battery
Darfon 36V 720Wh, Shimano Steps service included
Remote
Shimano Steps EP8 Wireless Cycle Computer (SC-EM800)
Charger
Darfon Smart Plus 100-240V 4A US
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.374 mm | 1.325 mm | 1.289 mm | 1.233 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 752 mm | 777 mm | 802 mm | 832 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 115 mm | 120 mm | 126 mm | 131 mm |
| Stack | 599 mm | 611 mm | 625 mm | 636 mm |
| Reach | 436 mm | 461 mm | 485 mm | 516 mm |
| Top Tube Length | 561 mm | 590 mm | 621 mm | 655 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 400 mm | 425 mm | 440 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 87 mm | 99 mm | 115 mm | 127 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1185 mm | 1210 mm | 1235 mm | 1265 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 200 cm |
About this model
4060 Z ST SLX USA belongs to the Scor E 4060 model. SCOR launched 16 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
SCOR 4060 Z LT SLX USA 2022 is the most affordable e-bike of this model and has a price of 6599$. On the other hand, SCOR 4060 Z LT XT 2022, is the most expensive and costs 8812$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 6599$. Doing a quick comparison, we notice that 4060 Z ST SLX USA price is 96.11% more expensive than the average cost of a Trail e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
This e-bike has the RockShox ZEB fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this e-bike has the RockShox Super Deluxe Select model, with a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the 4060 Z ST SLX USA model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The 4060 Z ST SLX USA has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The SCOR model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
