Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 160mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Darfon 36V | 720Wh | Shimano Steps service included -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 170cm
MD
165cm - 180cm
LG
175cm - 190cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCOR 4060 Z full carbon frame | Lower-Link Driven Instant Center linkage | 140 / 160mm rear travel | Fully guided internal cable routing | Boost 148 | SRAM UDH | Lower ISCG 05 mount / chainguide
Suspension Fork
Fox 38 Factory GRIP2 | 150mm travel | 44mm rake
Rear Shock
Float X Factory Suspension
Drivetrain
Rear Derailleur
Shimano Deore XT (SL-M8100-R)
Shift Levers
Shimano Deore XT (SL-M8100-R)
Cassette
Shimano Deore XT (CS-M8100-12) | 10-51T
Crank
Shimano Deore XT (FC-M8150) | 165mm length | 34T chainring (SM-CRE80-12-B)
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano Deore XT (CN-M8100)
Wheels
Rims
DT Swiss H 1900 Spline | 30mm internal width | Tubeless ready
Tires
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Burgtec Enduro MK3 | 3D forged and fully CNC machined | 31.6mm bar bore | 35mm lenght | 0deg angle
Handlebar
SCOR Carbon Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5° upsweep | 7.5° backsweep
Grips
Burgtec Bartender Pro
Seat
Saddle
Fizik Terra Alpaca
Seatpost
Bikeyoke Divine | S 125mm | M / L 160mm | XL 185mm travel | Triggy Alpha lever
Motor & Battery
Motor
Shimano Steps EP8 (DU-EP800)
Battery
Darfon 36V | 720Wh | Shimano Steps service included
Charger
Darfon Smart Plus 100-240V | 4A | EU
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.374 mm | 1.325 mm | 1.289 mm | 1.233 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 752 mm | 777 mm | 802 mm | 832 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 118 mm | 123 mm | 128 mm | 134 mm |
| Stack | 599 mm | 611 mm | 625 mm | 636 mm |
| Reach | 436 mm | 461 mm | 485 mm | 516 mm |
| Top Tube Length | 561 mm | 590 mm | 621 mm | 655 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 400 mm | 425 mm | 440 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 87 mm | 99 mm | 115 mm | 127 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1185 mm | 1210 mm | 1235 mm | 1265 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 714 mm | 723 mm | 731 mm | 741 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 200 cm |
About this model

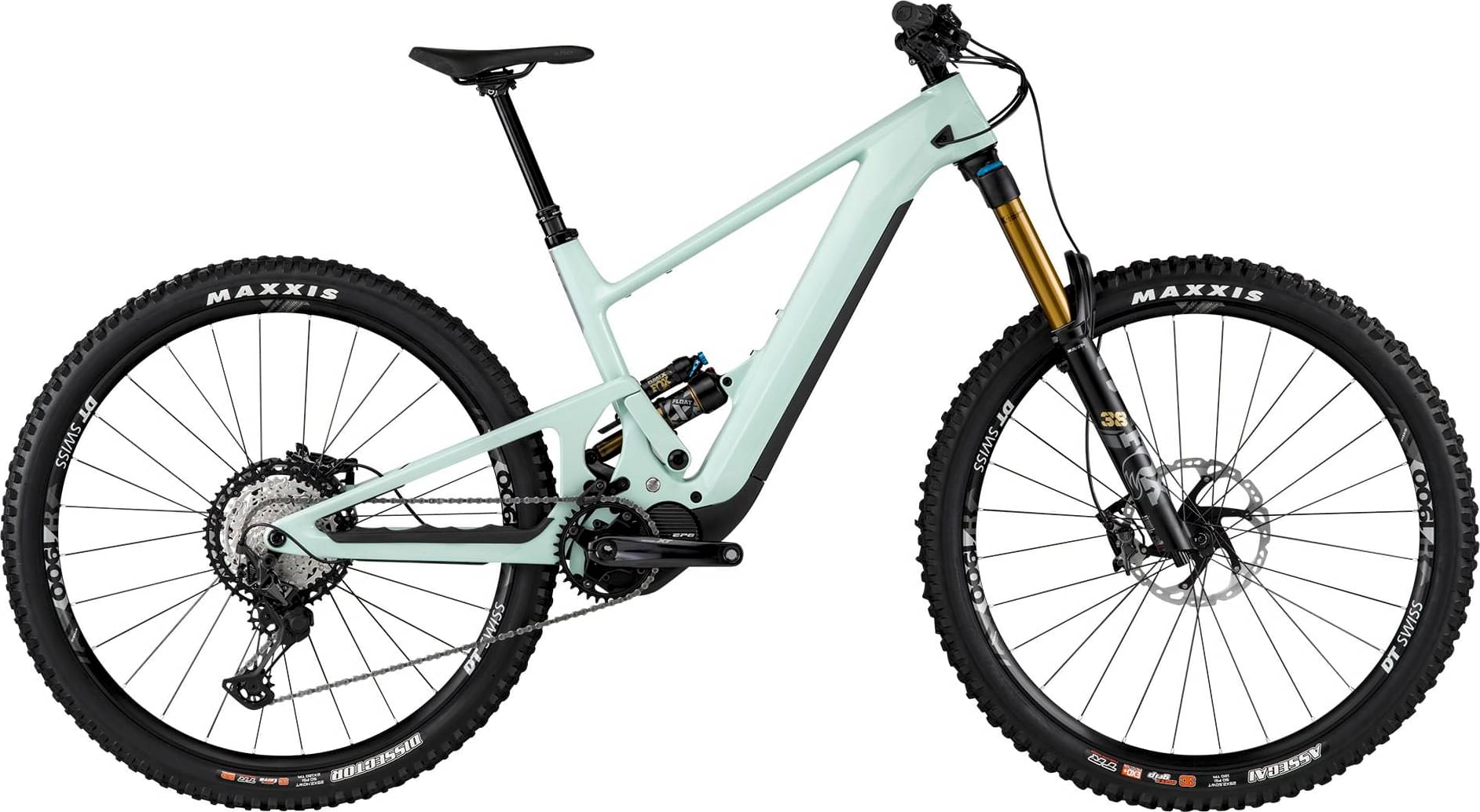

4060 Z ST XT completes the Scor E 4060 model. There are 16 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
SCOR 4060 Z LT SLX 2023 is the cheapest e-bike model and costs 7431$. SCOR 4060 Z ST XT 2023 is the most expensive one and costs 9555$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9555$. Comparing the average cost of an Enduro e-bike to this one, you will see that 4060 Z ST XT price is 99.69% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
4060 Z ST XT components
Fork
The Fox Factory Float 38 is included from the factory. It has a travel distance of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is Float X Factory Suspension, with a travel distance of 160mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The 4060 Z ST XT 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The 4060 Z ST XT has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The SCOR model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
