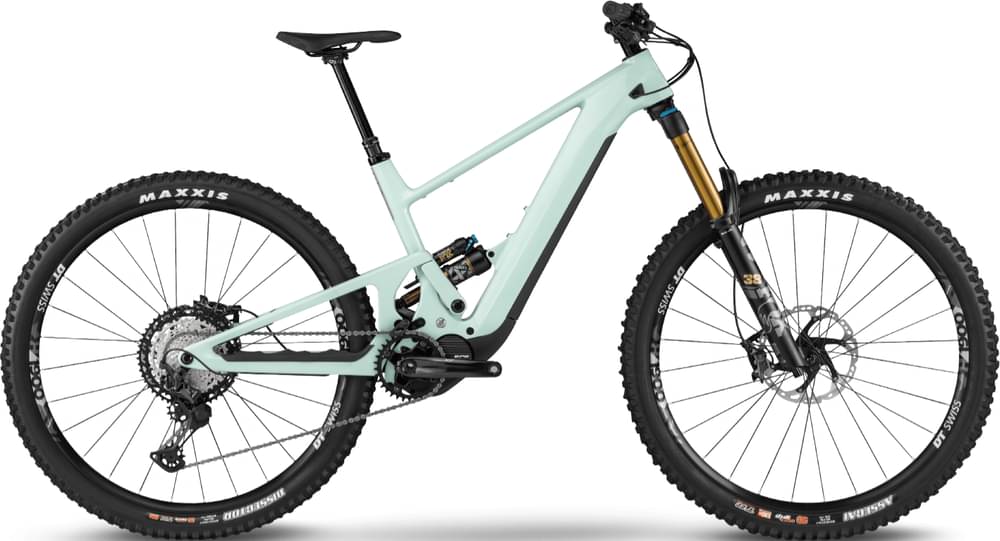

SCOR 4060 Z ST XT USA 2022
2022 E-bike
Estimate price |
8,699$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Darfon 36V 720Wh, Shimano Steps service included -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 170cm
MD
165cm - 180cm
LG
175cm - 190cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCOR 4060 Z full carbon frame, Lower-Link Driven Instant Center Linkage, 140mm rear wheel travel, Fully guided internal cable routing, Boost 148, SRAM Universal Derailleur Hanger, Lower ISCG 05 mount / Chainguide
Suspension Fork
Fox Float 38 Factory Series E-Bike, 150mm travel, Grip2 damper, Low & high speed compression adjust, Low & high speed rebound adjust, 44mm rake, E-MTB rated
Rear Shock
Fox Float X Factory Series, Compression adjust, Rebound adjust, 2 position adjust
Drivetrain
Rear Derailleur
Shimano Deore XT (RD-M8100), 12 speed
Shift Levers
Shimano Deore XT (SL-M8100-R)
Cassette
Shimano Deore XT (CS-M8100-12), 10-51T
Crank
Shimano Deore XT (FC-M8150), 165mm length, 34T chainring (SM-CRE80-12-B)
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano Deore XT (CN-M8100)
Wheels
Front Hub
DT Swiss 370, Ratchet LN freehub, Straightpull spoke interface, Boost Spacing
Rear Hub
DT Swiss 370, Ratchet LN freehub, Straightpull spoke interface, Boost Spacing
Rims
DT Swiss H 1900 Spline, 30mm internal width, Tubeless ready
Tires
Maxxis Assegai 29 x 2.5" (F) / Maxxis Dissector 29 x 2.4" (R), Compound: 3C Maxx Grip (F) / 3C Maxx Terra (R), Casing: EXO+ (F) / Double Down (R), Tubeless ready
Brakes
Brakes
Shimano Deore XT (BR-M8120), BL-M8100 levers, SM-RT86 rotors; 203mm
Cockpit
Stem
Burgtec Enduro MK3, 3D forged and fully CNC machined, 31.6mm bar bore, 35mm lenght, 0° angle
Handlebar
SCOR Carbon Bar, 31.8mm clamp, 800mm wide, 20mm rise, 5° up sweep - 7.5° back sweep
Seat
Saddle
Fizik Terra Alpaca
Seatpost
Bikeyoke Divine, S 125mm, M/L 160mm, XL 185mm travel, Triggy Alpha lever
Motor & Battery
Motor
Shimano Steps EP8 (DU-EP800)
Battery
Darfon 36V 720Wh, Shimano Steps service included
Remote
Shimano Steps EP8 Wireless Cycle Computer (SC-EM800)
Charger
Darfon Smart Plus 100-240V 4A US
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.374 mm | 1.325 mm | 1.289 mm | 1.233 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 752 mm | 777 mm | 802 mm | 832 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 115 mm | 120 mm | 126 mm | 131 mm |
| Stack | 599 mm | 611 mm | 625 mm | 636 mm |
| Reach | 436 mm | 461 mm | 485 mm | 516 mm |
| Top Tube Length | 561 mm | 590 mm | 621 mm | 655 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 400 mm | 425 mm | 440 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 87 mm | 99 mm | 115 mm | 127 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1185 mm | 1210 mm | 1235 mm | 1265 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 200 cm |
About this model
4060 Z ST XT USA is part of the Scor E 4060 model. 16 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
SCOR 4060 Z LT SLX USA 2022 is the most affordable e-bike of this model and has a price of 6599$. On the other hand, SCOR 4060 Z LT XT 2022, is the most expensive and costs 8812$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2022 and its price was 8699$. In conclusion, this e-bike price is 158.51% more expensive than the price of the average Trail e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
4060 Z ST XT USA components
Fork
This e-bike has the Fox Factory Float 38 fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is Fox Float X Factory Series, with a travel distance of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the 4060 Z ST XT USA e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The 4060 Z ST XT USA has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
SCOR 4060 Z ST XT USA e-bike has 4 sizes, in the range of 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The SCOR model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
