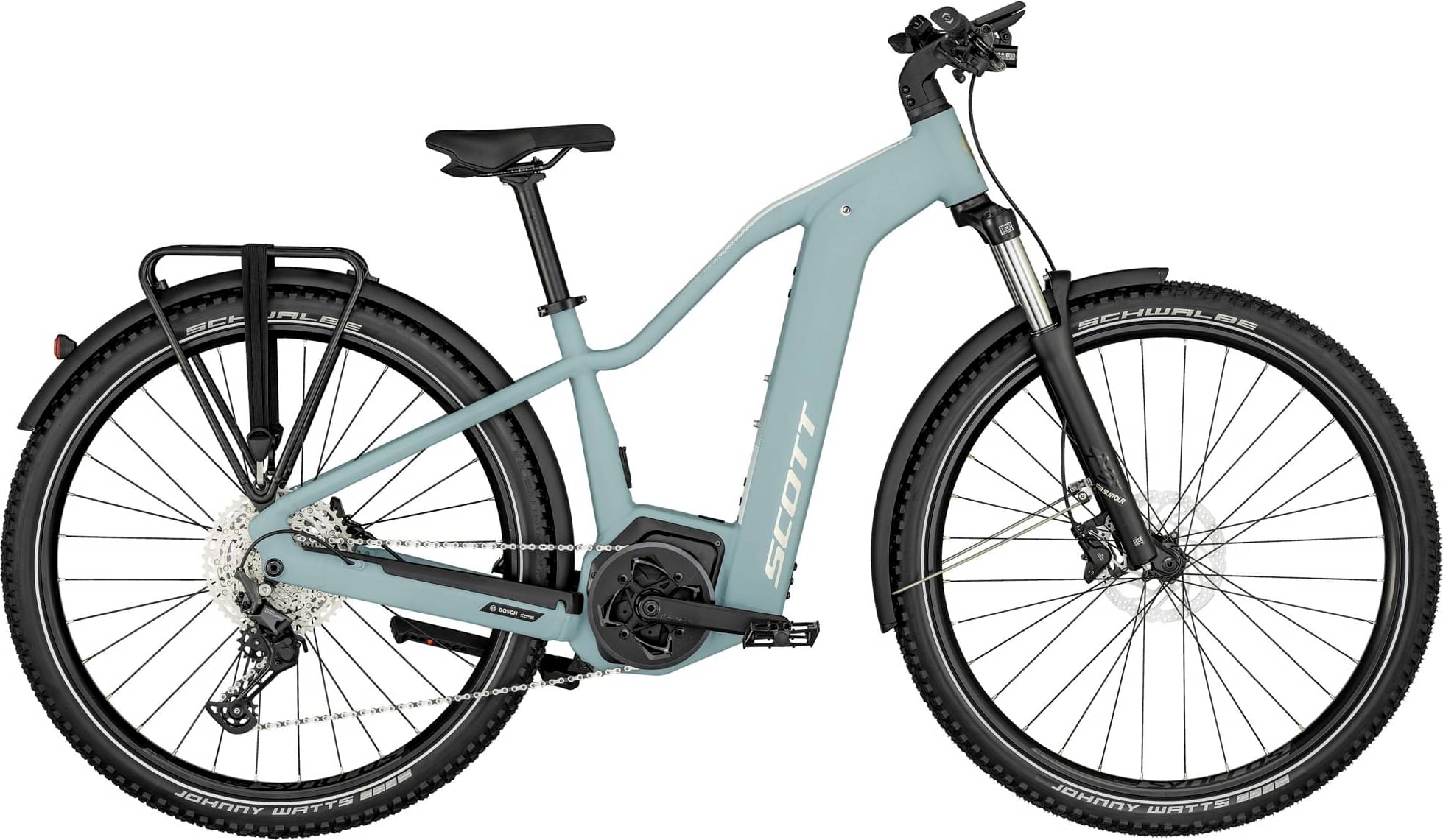

Scott Axis eRIDE 30 Lady 2023
2023 E-bike
Estimate price |
4,482$
Weight | 26.36 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery PowerTube 500Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy custom butted tubing Bosch Integr. removable Battery internal cable routing
Suspension Fork
SR Suntour XCM34 Coil / Tapered / S-XL 29" / 120mm Travel / 15x110 bolt Axle / Lock Out
Drivetrain
Rear Derailleur
Shimano Deore / 11 Speed
Shift Levers
Shimano Deore Trigger SLM5100RA
Cassette
Shimano CS-M5100-11 11-51T 11S
Crank
Miranda 172,5mm
Bottom Bracket
Bosch, press-fit
Chain
KMC E11S
Pedals
VP VPE-506
Wheels
Front Hub
Shimano HB-MT400 / 15x110mm
Rear Hub
Shimano FH-MT400B / Boost 12x148mm
Rims
Syncros X18 Disc
Spokes
Black Spokes
Tires
Front: Schwalbe Johnny Watts 29x2.35" Wired, Rear: Schwalbe Johnny Watts 29x2.35" Wired
Brakes
Brakes
Shimano BR-MT410 2 Piston
Cockpit
Stem
Syncros with front Light mount and Intuvia 100 mount
Handlebar
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise Syncros Lock On Grip
Headset
Acros / 1.5"- 1.5" semi integ. OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros Capilano
Seatpost
Syncros M3.0 / 31.6
Motor & Battery
Motor
Bosch Performance BES3
Battery
PowerTube 500Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.61 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Front Center | 683 mm | 694 mm | 705 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Trail | 101.6 mm | 101.6 mm | 101.6 mm |
| Stack | 646.6 mm | 655.8 mm | 665.1 mm |
| Reach | 398.5 mm | 405.8 mm | 413.1 mm |
| Top Tube Length | 583 mm | 593 mm | 603 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 503 mm | 503 mm | 503 mm |
| Wheelbase | 1178 mm | 1189 mm | 1200 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 783 mm | 778 mm | 773 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Axis eRIDE 30 Lady is part of the Scott E Axis model. Scott released 36 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Scott Axis eRIDE 30 Lady 2023 has a starting price of 4074$. Scott Axis eRIDE FS 10 2023 on the other hand is the most expensive at 7905$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Scott released this model in 2023, its price was 4074$. Comparing this to the average Hybrid e-bike price, we see that the price is 64.27% higher.
Average weight for Hybrid e-bikes
Hybrid e-bikes weigh an average of 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Axis eRIDE 30 Lady weighs 26.36 kg (58.11 lbs) and is considerably heavier than the average. To sum up, it’s 10.8% heavier than the average weight of Hybrid e-bikes.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Axis eRIDE 30 Lady comes factory-installed with the Suntour XCM fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the Axis eRIDE 30 Lady model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Axis eRIDE 30 Lady is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
