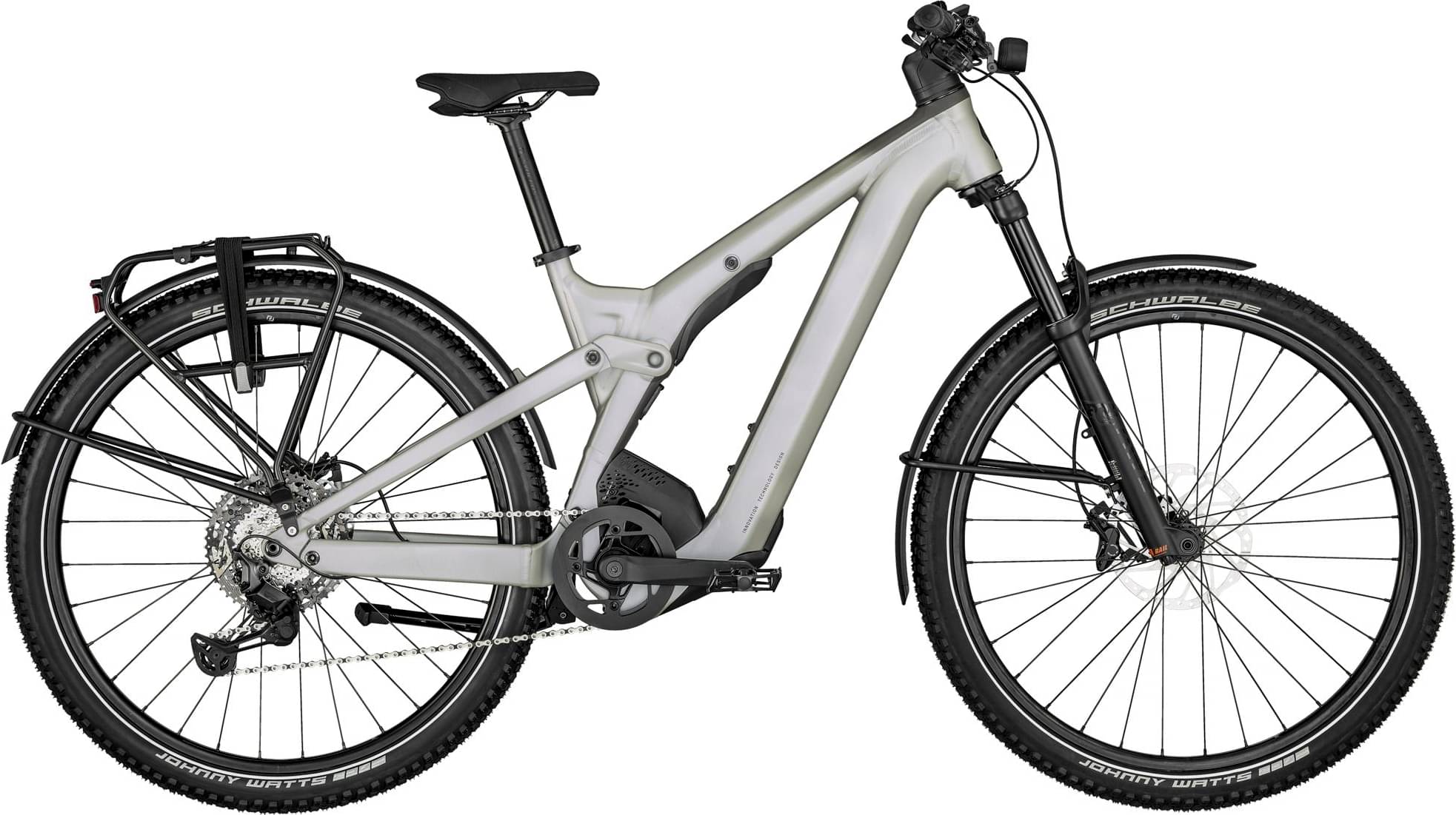

Scott Axis eRIDE FS 10 2023
2023 E-bike
Estimate price |
8,697$
Weight | 28 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox AWL
-
Groupset XT, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery PowerTube 750Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy S-XL=29" / Virtual 4 link kinematic VLK 29" / Boost 148x12mm 140mm travel / Bosch 750Wh Integrated Battery internal cable routing
Suspension Fork
FOX AWL / Tapered / S-XL 29" / 140mm Travel / Stealth / Remote Lock Out
Rear Shock
FOX Float eRIDE Trunnion 205x55mm
Drivetrain
Rear Derailleur
Shimano RD M8130SGS Linkgilde / 11 Speed
Front Derailleur
SCOTT Chainguide
Shift Levers
Shimano XT RD M8130SGS Linkgilde / 11 Speed
Cassette
Shimano CS-LG600-11 11-50T 11S
Crank
FSA CK-745 IS GEN4 MTB 170mm
Bottom Bracket
Bosch, press-fit
Chain
KMC E11S
Pedals
VP VPE-506
Wheels
Front Hub
Formula CL-811 / 15x110mm
Rear Hub
Formula MSC-148S / Boost 12x148mm
Rims
Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready
Spokes
Sapim double butted
Tires
Front: Schwalbe Johnny Watts 29x2.35" Wired, Rear: Schwalbe Johnny Watts 29x2.35" Wired
Brakes
Brakes
Shimano BR-MT520 4 Piston Disc Brakes
Cockpit
Stem
Syncros FL3.0 with front Light mount and Kiox 300 mount
Handlebar
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise Syncros Lock On Grip
Headset
Acros / 1.8" ZS66 OD74 / integr. Cable
Seat
Saddle
Syncros Capilano
Seatpost
Syncros FL3.0 / 31.6
Motor & Battery
Motor
Bosch Performance CX EU: 25kmh
Battery
PowerTube 750Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.45 mm | 1.38 mm | 1.32 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 779 mm | 789 mm | 821 mm | 853 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 119.7 mm | 116 mm | 116 mm | 116 mm |
| Stack | 628.5 mm | 636 mm | 645.1 mm | 654.1 mm |
| Reach | 426.2 mm | 439.3 mm | 467.1 mm | 494.7 mm |
| Top Tube Length | 572.9 mm | 588.5 mm | 619.1 mm | 649.9 mm |
| Seat Tube Angle | 77 ° | 76.9 ° | 76.9 ° | 76.8 ° |
| Seat Tube Length | 410.5 mm | 440.5 mm | 470.4 mm | 500.4 mm |
| Head Tube Angle | 64.5 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1232 mm | 1242 mm | 1274 mm | 1306 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 752 mm | 752 mm | 752 mm | 752 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Axis eRIDE FS 10 belongs to the Scott E Axis model. Scott released 36 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Scott Axis eRIDE 30 Lady 2023 is the most affordable e-bike of this model and has a price of 4074$. On the other hand, Scott Axis eRIDE FS 10 2023, is the most expensive and costs 7905$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 7905$. In conclusion, this e-bike price is 218.75% more expensive than the price of the average Hybrid e-bike.
Average weight for Hybrid e-bikes
On a deeper look, we notice that the average weight of a Hybrid e-bike is 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Axis eRIDE FS 10 weighs 28 kg (61.73 lbs) and is much heavier than the average. In short, the average Hybrid e-bike weight is 17.7% lower than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Axis eRIDE FS 10 components
Fork
The Fox AWL is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the FOX Float eRIDE Trunnion 205x55mm model, with a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Axis eRIDE FS 10 e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Scott Axis eRIDE FS 10 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Scott Axis eRIDE FS 10 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
