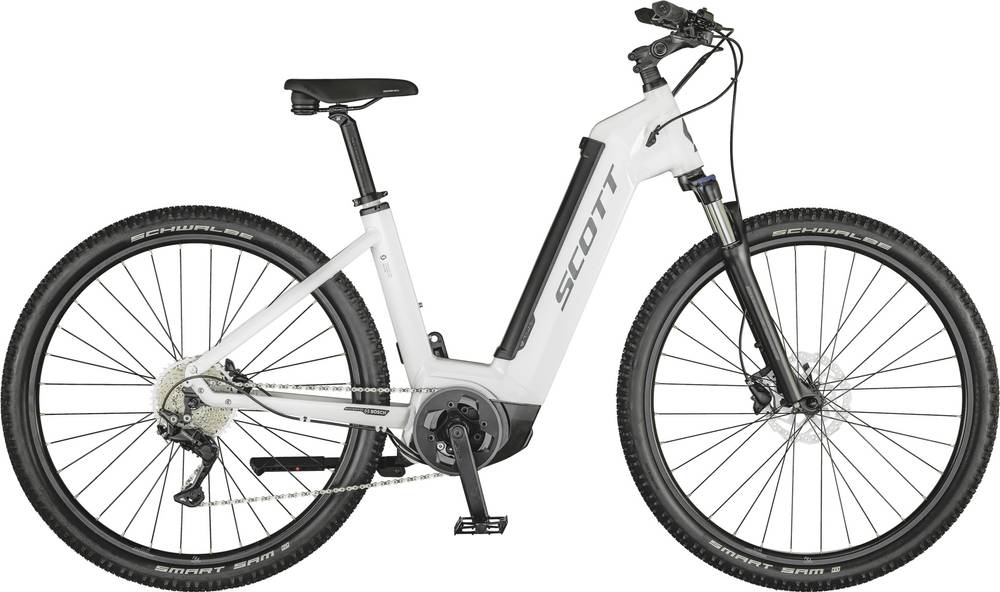

Scott Sub Cross eRIDE 10 USX 2021
2021 E-bike
Weight | 27.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b / 29" -
Fork SunTour -
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery PowerTube 625Wh -
Drivetrain 1 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sub eRIDE 6061 Alloy
Suspension Fork
SUNTOUR NVX 30 NLO DS QR 700C STEEL TAPERED
Drivetrain
Rear Derailleur
Shimano Deore 10 Speed
Shift Levers
Shimano Deore 10 Speed
Cassette
Shimano CSM4100 11-42T
Crank
Miranda 172,5MM
Chain
KMC E10S
Pedals
VPE-506
Wheels
Front Hub
Shimano FHRM35BZBL5 32H QR CL
Rear Hub
Shimano FHMT200B 32H QR CL
Rims
Cross X17 Disc 32h
Spokes
BLACK spokes * F: 14G/ R: 13G
Tires
Schwalbe Smart Sam 29x2.25
Brakes
Brakes
Shimano BR-M200 Disc
Brake Levers
Shimano BR-M200 Disc
Cockpit
Stem
Syncros UC 3.0 adjustable
Handlebar
Syncros UC3.0 680mm / 10° bend
Headset
GW semi integrated
Seat
Saddle
Selle Royal Essenza
Seatpost
Syncros 3.0 / 31.6mm / 350mm
Motor & Battery
Motor
Bosch Performance CX
Battery
PowerTube 625Wh
Remote
Purion Display
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.61 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 655 mm | 660 mm | 665 mm | 670 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 79 mm | 79 mm | 86 mm | 86 mm |
| Stack | 649.6 mm | 649.6 mm | 649.6 mm | 649.6 mm |
| Reach | 398.1 mm | 403.1 mm | 408.1 mm | 413.1 mm |
| Top Tube Length | 601 mm | 606 mm | 611 mm | 616 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 170 mm | 170 mm | 170 mm | 170 mm |
| Chainstay Length | 511 mm | 511 mm | 511 mm | 511 mm |
| Wheelbase | 1157 mm | 1162 mm | 1167 mm | 1172 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 505 mm | 505 mm | 505 mm | 505 mm |
| Wheels | 650 | 650 | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Sub Cross eRIDE 10 USX is part of the Scott E Sub model. 99 e-bikes variations carry this model name so far. Take a sneak peek at all Scott E Sub e-bikes models from 2021, by clicking here.
Model range prices
Scott Sub Active eRIDE USX US 2021 is the most affordable e-bike of this model and has a price of 2399$. On the other hand, Scott Sub Active eRIDE Men US 2021, is the most expensive and costs 2399$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Scott Sub Cross eRIDE 10 USX it’s weighing 27.1 kg (59.75 lbs). At this weight, is considerably heavier than average. In short, the average Hybrid e-bike weight is 13.91% lower than this one.
Overview of components
Fork
The Sub Cross eRIDE 10 USX comes factory-installed with the SunTour fork. This has a travel range of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
The fork on this e-bike is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
The Sub Cross eRIDE 10 USX 2021 e-bike is equipped with aluminum wheels when leaving the factory. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sub Cross eRIDE 10 USX has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
