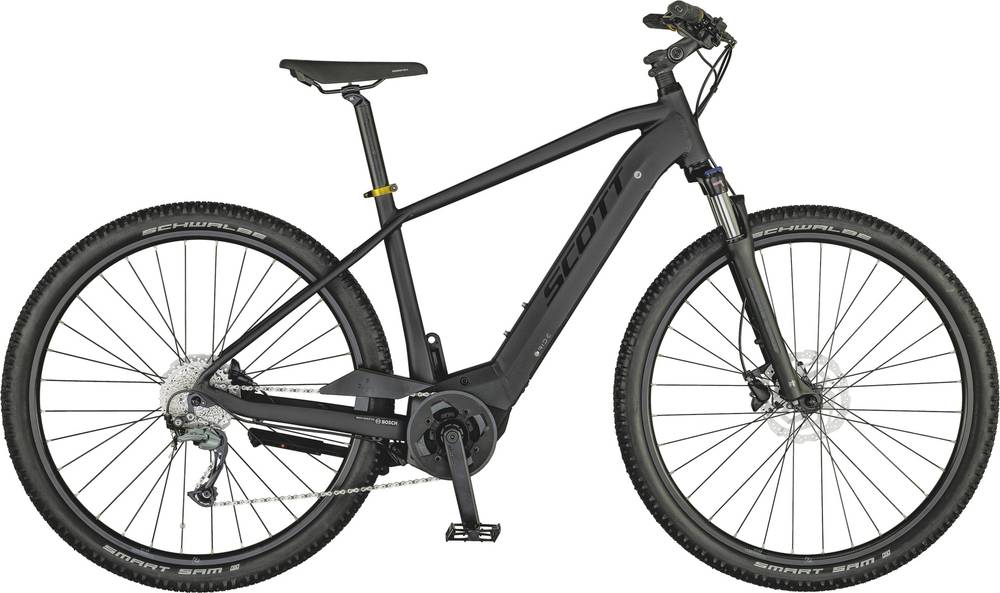

Scott Sub Cross eRIDE 20 Men 2021
2021 E-bike
Weight | 24.3 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Fork SunTour -
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery PowerTube 500Wh -
Drivetrain 1 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sub eRIDE 6061 Alloy
Suspension Fork
SUNTOUR NVX 30 NLO DS QR 700C STEEL TAPERED
Drivetrain
Rear Derailleur
Shimano Alivio 3100 9 Speed
Shift Levers
Shimano Alivio 3100 9 Speed
Cassette
Shimano CS HG400 11-36
Crank
Miranda 172,5MM
Chain
KMC E9s NPBK
Pedals
VPE-506
Wheels
Front Hub
Shimano HBMT200B 32H QR CL
Rear Hub
Shimano FHMT200B 32H QR CL
Rims
Cross X17 Disc 32h
Spokes
BLACK spokes * F: 14G/ R: 13G
Tires
Schwalbe Smart Sam 29x2.25
Brakes
Brakes
Shimano BR-M200 Disc
Brake Levers
Shimano BR-M200 Disc
Cockpit
Stem
Syncros UC 3.0 adjustable
Handlebar
Syncros UC3.0 680mm / 10° bend
Headset
GW semi integrated
Seat
Saddle
Selle Royal Essenza
Seatpost
Syncros 3.0 / 31.6mm / 350mm
Motor & Battery
Motor
Bosch Performance
Battery
PowerTube 500Wh
Remote
Purion Display
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.51 mm | 1.51 mm | 1.52 mm |
| Bottom Bracket Height | 440.5 mm | 440.5 mm | 440.5 mm | 440.5 mm |
| Front Center | 672 mm | 679 mm | 695 mm | 717 mm |
| Rake | 52 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89.5 mm | 86 mm | 82.5 mm | 82.5 mm |
| Stack | 636 mm | 647 mm | 668 mm | 691 mm |
| Reach | 411 mm | 428 mm | 442 mm | 456 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm | 646 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 140 mm | 160 mm | 185 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1148 mm | 1155 mm | 1171 mm | 1193 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 781 mm | 810 mm | 837 mm | 875 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Sub Cross eRIDE 20 Men is a Scott E Sub model. There are 99 e-bikes that carry this model name. Take a sneak peek at all Scott E Sub e-bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Scott Sub Active eRIDE Lady US 2021 has a starting price of 2399$. Scott Sub Active eRIDE USX US 2021 on the other hand is the most expensive at 2399$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Hybrid e-bikes
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 24.3 kg (53.57 lbs), the Sub Cross eRIDE 20 Men model is slightly heavier than average. In short, the average Hybrid e-bike weight is 2.14% lower than this one.
Overview of components
Fork
The Sub Cross eRIDE 20 Men comes factory-installed with the SunTour fork. This has a travel range of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
When it comes to wheels, the Sub Cross eRIDE 20 Men e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Sub Cross eRIDE 20 Men is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Scott Sub Cross eRIDE 20 Men e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
