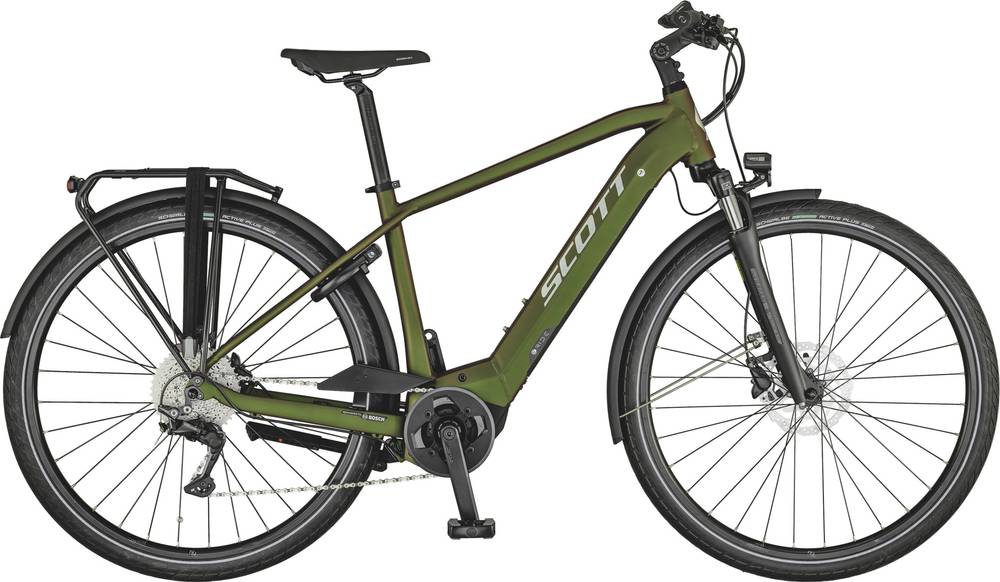

Scott Sub Tour eRIDE 10 Men 2021
2021 E-bike
Weight | 27.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork SunTour NEX -
Groupset Deore -
Suspension Hardtail -
Motor Bosch mid-drive -
Battery PowerTube 625Wh -
Drivetrain 1 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sub eRIDE 6061 Alloy
Suspension Fork
SUNTOUR NEX-E25 DS QR 700C STEEL TAPERED / 63mm Travel
Drivetrain
Rear Derailleur
Shimano Deore 10 Speed
Shift Levers
Shimano Deore 10 Speed
Cassette
Shimano CSM4100 11-42T
Crank
Miranda 172,5MM
Chain
KMC E10S
Pedals
Syncros SP-828
Wheels
Front Hub
Shimano HBMT200B 32H QR CL
Rear Hub
Shimano FHMT200B 32H QR CL
Rims
Cross X17 Disc 32h
Spokes
BLACK spokes * F: 14G/ R: 13G
Tires
Schwalbe Energizer Active Plus 700x50c
Brakes
Brakes
Shimano BR-M200 Disc
Brake Levers
Shimano BR-M200 Disc
Cockpit
Stem
Syncros UC 3.0 adjustable
Handlebar
Syncros UC3.0 680mm / 10° bend
Headset
GW semi integrated
Seat
Saddle
Selle Royal Essenza
Seatpost
Syncros 3.0 / 31.6mm / 350mm
Motor & Battery
Motor
Bosch Perfomance
Battery
PowerTube 625Wh
Remote
Purion Display
Charger
2A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.51 mm | 1.51 mm | 1.52 mm |
| Bottom Bracket Height | 440.5 mm | 440.5 mm | 440.5 mm | 440.5 mm |
| Front Center | 672 mm | 679 mm | 695 mm | 717 mm |
| Rake | 52 mm | 44 mm | 44 mm | 44 mm |
| Trail | 89.5 mm | 86 mm | 82.5 mm | 82.5 mm |
| Stack | 636 mm | 647 mm | 668 mm | 691 mm |
| Reach | 411 mm | 428 mm | 442 mm | 456 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm | 646 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 130 mm | 140 mm | 160 mm | 185 mm |
| Chainstay Length | 486 mm | 486 mm | 486 mm | 486 mm |
| Wheelbase | 1148 mm | 1155 mm | 1171 mm | 1193 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 781 mm | 810 mm | 837 mm | 875 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Sub Tour eRIDE 10 Men belongs to the Scott E Sub model. 99 e-bikes variations carry this model name so far. Take a sneak peek at all Scott E Sub e-bikes models from 2021, by clicking here.
Model range prices
The most economical model, the Scott Sub Active eRIDE USX US 2021 has a starting price of 2399$. Scott Sub Active eRIDE Men US 2021 on the other hand is the most expensive at 2399$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Touring e-bikes
According to our math, the average price for a trustworthy Touring e-bike is 2429$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Touring e-bikes average weight
Touring e-bikes have an average weight of 25.55 kg (56.33 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 27.5 kg (60.63 lbs), the Sub Tour eRIDE 10 Men model is a bit heavier than average. To sum up, it’s 7.63% heavier than the average weight of Touring e-bikes.
Overview of components
Fork
The Sub Tour eRIDE 10 Men comes factory-installed with the SunTour NEX fork. This has a travel range of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this e-bike has a steel one, so, it can add some extra weight to your bike. However, steel is a pretty tough and durable material.
Wheels
The wheels on Sub Tour eRIDE 10 Men are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Sub Tour eRIDE 10 Men has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
