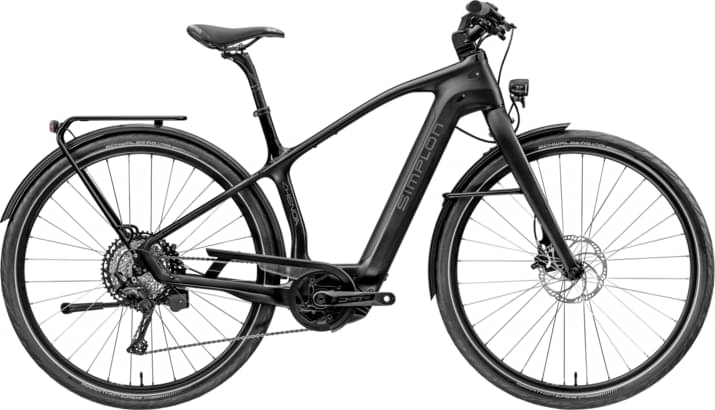

simplon Chenoa Bosch CX B3; HE XT SPEED (only in Switzerland) 2023
2023 E-bike
Estimate price |
8,294$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa Bosch CX, Man, Black Matt | Black Glossy, S (46)
Suspension Fork
Rock Shox PARAGON Gold Disc, 65mm
Drivetrain
Shift Levers
Shimano Deore-XT 11 Speed, Linkglide
Crank
FSA CK-745 für Bosch GEN4 alloy 160mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
Simplon 8.6 Disc-Schwalbe Big Ben PLUS 50-622
Tires
Schwalbe BIG BEN PLUS 28x2,0"
Brakes
Brakes
Bosch ABS 2.0 + Magura CT Allroad;4/2-Kolben (pistons);203mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON BAR 640
Grips
Simplon "SOFT PUS"
Headset
Acros AZA-642
Seat
Saddle
w/o saddle
Seatpost
Seatpost bySchulz G.2 LT 27.2x380
Motor & Battery
Motor
Bosch Performance Line Speed BES3 +Bosch Powertube 625 horiz
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.58 mm | 1.59 mm | 1.6 mm |
| Front Center | 643 mm | 658 mm | 667 mm | 683 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 73 mm | 73 mm | 66 mm | 66 mm |
| Stack | 618 mm | 618 mm | 641 mm | 660 mm |
| Reach | 376 mm | 391 mm | 403 mm | 413 mm |
| Top Tube Length | 567 mm | 582 mm | 602 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 145 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1100 mm | 1115 mm | 1124 mm | 1140 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 723 mm | 725 mm | 747 mm | 752 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Chenoa Bosch CX B3; HE XT SPEED (only in Switzerland) is a Simplon E Chenoa model. 43 e-bikes variations carry this model name so far. Take a sneak peek at all Simplon E Chenoa e-bikes models from 2023, by clicking here.
Model range prices
Simplon Chenoa Uni Shimano Nexus 8L 2023 is the cheapest e-bike model and costs 4777$. Simplon Chenoa Bosch CX B3; HE R14 SPEED (only in Switzerland) 2023 is the most expensive one and costs 9130$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 7569$. In conclusion, this e-bike price is 194.63% more expensive than the price of the average Commuter e-bike.
Chenoa Bosch CX B3; HE XT SPEED (only in Switzerland) components
Fork
The Chenoa Bosch CX B3; HE XT SPEED (only in Switzerland) comes factory-installed with the RockShox Paragon Gold RL fork. This has a travel range of 65mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on Chenoa Bosch CX B3; HE XT SPEED (only in Switzerland) are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Simplon Chenoa Bosch CX B3; HE XT SPEED (only in Switzerland) is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
