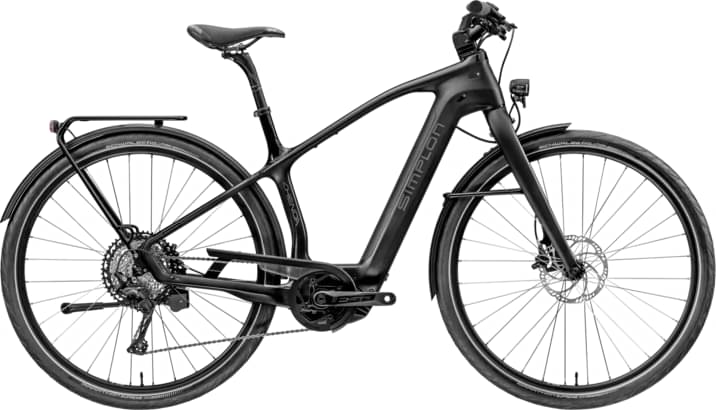

simplon Chenoa Bosch CX Men, Deore-10 LG 2022
2022 E-bike
Estimate price |
6,397$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa Bosch CX, Men, Carbon Matt, S (46)
Suspension Fork
Rock Shox PARAGON Gold Disc, 65mm
Drivetrain
Shift Levers
Shimano Deore-10, Linkglide
Crank
FSA for Performance Line CX 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
Simplon 8.5 Disc, M6000, Marathon Mondial
Tires
Schwalbe MARATHON MONDIAL 28 x 2,0"
Brakes
Brakes
Shim. T6000;PM6;PM7;180/180;CL/CL;DIV
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON BAR 640
Grips
Simplon "SOFT PUS"
Headset
Smart Headset
Seat
Saddle
w/o saddle
Seatpost
Seatpost bySchulz G.2 LT 27.2x380
Motor & Battery
Motor
Bosch Performance Line CX + Power T. 500
Remote
Bosch KIOX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.58 mm | 1.59 mm | 1.6 mm |
| Front Center | 643 mm | 658 mm | 667 mm | 683 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 73 mm | 73 mm | 66 mm | 66 mm |
| Stack | 618 mm | 618 mm | 641 mm | 660 mm |
| Reach | 376 mm | 391 mm | 403 mm | 413 mm |
| Top Tube Length | 567 mm | 582 mm | 602 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 145 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1100 mm | 1115 mm | 1124 mm | 1140 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 723 mm | 725 mm | 747 mm | 752 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Chenoa Bosch CX Men, Deore-10 LG is part of the Simplon E Chenoa model. 43 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
Simplon Chenoa UNI 8L 2022 is the most affordable e-bike of this model and has a price of 4883$. On the other hand, Simplon Chenoa MAX Uni, E14 2022, is the most expensive and costs 9449$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Simplon released this model in 2022, its price was 5839$. If we compare this with the average Commuter e-bike cost we notice that the price is 127.29% more expensive.
Chenoa Bosch CX Men, Deore-10 LG components
Fork
Simplon Chenoa Bosch CX Men, Deore-10 LG 2022 e-bike is equipped with the RockShox Paragon Gold RL fork, and has 65mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Chenoa Bosch CX Men, Deore-10 LG 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Simplon Chenoa Bosch CX Men, Deore-10 LG has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
