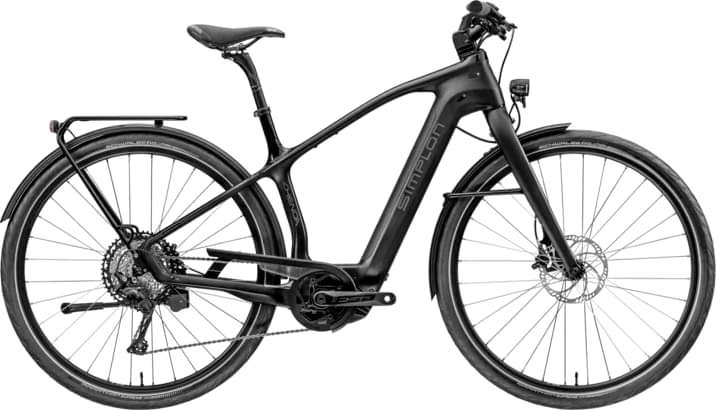

simplon Chenoa Bosch CX Men, E14 2022
2022 E-bike
Estimate price |
8,486$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa Bosch CX, Men, Carbon Matt, S (46)
Suspension Fork
Rock Shox PARAGON Gold Disc, 65mm
Drivetrain
Shift Levers
Rohloff E14 for Chenoa CX with Gates Beltdrive
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
8.5Disc-FDT5*100-E14OEM2,MarAlm40,Mag180
Tires
Schwalbe MARATHON ALMOTION 28 x 1,5"
Brakes
Brakes
Shim. T6000;PM7;PM7;180/180;CL/4H;RO
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON BAR 720
Grips
Simplon "SOFT PUS"
Headset
Headset Acros AIX-342
Seat
Saddle
w/o saddle
Seatpost
KS LEV Integra 272, 100mm Southpaw
Motor & Battery
Motor
Bosch Performance Line CX + Power T. 500
Remote
Bosch KIOX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.58 mm | 1.59 mm | 1.6 mm |
| Front Center | 643 mm | 658 mm | 667 mm | 683 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 73 mm | 73 mm | 66 mm | 66 mm |
| Stack | 618 mm | 618 mm | 641 mm | 660 mm |
| Reach | 376 mm | 391 mm | 403 mm | 413 mm |
| Top Tube Length | 567 mm | 582 mm | 602 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 145 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1100 mm | 1115 mm | 1124 mm | 1140 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 723 mm | 725 mm | 747 mm | 752 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Chenoa Bosch CX Men, E14 is a Simplon E Chenoa model. 43 e-bikes variations carry this model name so far. You can easily view all of the Simplon E Chenoa e-bikes models from 2022, here.
Model range prices
Simplon Chenoa UNI 8L 2022 is the cheapest e-bike model and costs 4883$. Simplon Chenoa MAX Uni, E14 2022 is the most expensive one and costs 9449$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 7856$. Comparing the average cost of a Commuter e-bike to this one, you will see that Chenoa Bosch CX Men, E14 price is 205.8% more expensive.
Chenoa Bosch CX Men, E14 components
Fork
The Chenoa Bosch CX Men, E14 comes factory-installed with the RockShox Paragon Gold RL fork. This has a travel range of 65mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the Chenoa Bosch CX Men, E14 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Chenoa Bosch CX Men, E14 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Simplon Chenoa Bosch CX Men, E14 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
