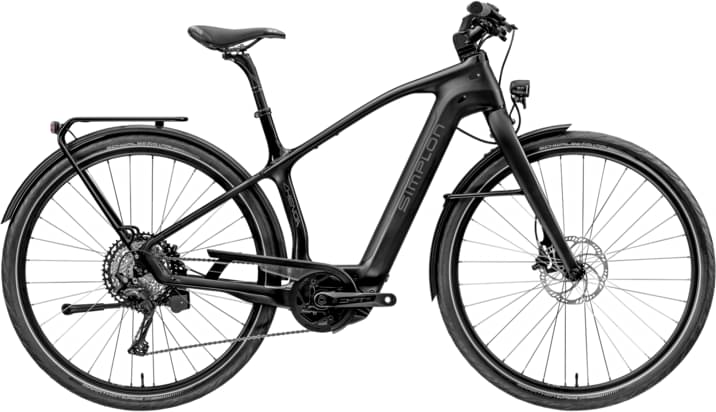

simplon Chenoa Bosch CX Men, Sram NX Eagle 2023
2023 E-bike
Estimate price |
6,307$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset NX, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa Bosch CX, Man, Black Matt | Black Glossy, S (46)
Suspension Fork
Rock Shox PARAGON Gold Disc, 65mm
Drivetrain
Shift Levers
SRAM NX1 Eagle
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
no pedal selected
Wheels
Rims
Simplon 8.6 Disc-FDT5*100-RDT5*135-Schwalbe Marathon Evoluti
Tires
Schwalbe MARATHON Efficiency Evo 28 x 2,0"
Brakes
Brakes
Magura CT;4/2-Kolben (pistons);203mm;180mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON RISER 700 High
Grips
Griffe Ergon GP 10 L
Headset
Headset FSA #69, SRS, ZS56/56
Seat
Saddle
w/o saddle
Seatpost
Seatpost bySchulz G.2 LT 27.2x380
Motor & Battery
Motor
Bosch Performance Line CX BES3 +Bosch Powertube 625 horizont
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.58 mm | 1.59 mm | 1.6 mm |
| Front Center | 643 mm | 658 mm | 667 mm | 683 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 73 mm | 73 mm | 66 mm | 66 mm |
| Stack | 618 mm | 618 mm | 641 mm | 660 mm |
| Reach | 376 mm | 391 mm | 403 mm | 413 mm |
| Top Tube Length | 567 mm | 582 mm | 602 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 145 mm | 145 mm | 165 mm | 185 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1100 mm | 1115 mm | 1124 mm | 1140 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 723 mm | 725 mm | 747 mm | 752 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Chenoa Bosch CX Men, Sram NX Eagle completes the Simplon E Chenoa model. There are 43 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Simplon Chenoa Uni Shimano Nexus 8L 2023 has a starting price of 4777$. Simplon Chenoa Bosch CX B3; HE R14 SPEED (only in Switzerland) 2023 on the other hand is the most expensive at 9130$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Simplon Chenoa Bosch CX Men, Sram NX Eagle price was 5839$. Comparing the average cost of a Commuter e-bike to this one, you will see that Chenoa Bosch CX Men, Sram NX Eagle price is 127.29% higher.
Overview of components
Fork
The fork installed on this bike is the RockShox Paragon Gold RL model. The travel on this model is 65mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Simplon Chenoa Bosch CX Men, Sram NX Eagle 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Chenoa Bosch CX Men, Sram NX Eagle comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
