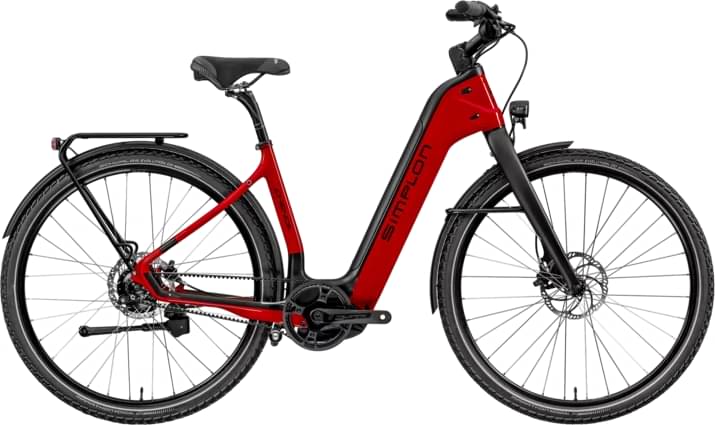

simplon Chenoa Bosch CX Uni, XT-11 LG 2022
2022 E-bike
Estimate price |
6,979$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa Bosch CX, Uni, Cosmic Red, S (40)
Suspension Fork
Rock Shox PARAGON Gold Disc, 65mm
Drivetrain
Shift Levers
Shimano Deore-XT 11, Linkglide
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
8.5Disc-FDT5*100-RDT5*135,MarAlm40,Shi11
Brakes
Brakes
Shim. T6000;PM6;PM7;180/180;CL/CL;DIV
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON BAR 640
Grips
Simplon "SOFT PUS"
Headset
Smart Headset
Seat
Saddle
w/o saddle
Seatpost
Seatpost bySchulz G.2 LT 27.2x380
Motor & Battery
Motor
Bosch Performance Line CX + Power T. 500
Remote
Bosch KIOX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.589 mm | 1.584 mm | 1.576 mm |
| Front Center | 664 mm | 680 mm | 696 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 79 mm | 79 mm | 79 mm |
| Stack | 626 mm | 640 mm | 654 mm |
| Reach | 394 mm | 404 mm | 415 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 470 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1129 mm | 1145 mm | 1161 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Standover Height | 381 mm | 381 mm | 381 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Chenoa Bosch CX Uni, XT-11 LG is a Simplon E Chenoa model. Simplon launched 43 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Simplon Chenoa UNI 8L 2022 is the most affordable e-bike of this model and has a price of 4883$. On the other hand, Simplon Chenoa MAX Uni, E14 2022, is the most expensive and costs 9449$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Simplon Chenoa Bosch CX Uni, XT-11 LG price was 6370$. Doing a quick comparison, we notice that Chenoa Bosch CX Uni, XT-11 LG price is 147.96% higher than the average cost of a Commuter e-bike.
Chenoa Bosch CX Uni, XT-11 LG components
Fork
The fork installed on this bike is the RockShox Paragon Gold RL model. The travel on this model is 65mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on Chenoa Bosch CX Uni, XT-11 LG are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Chenoa Bosch CX Uni, XT-11 LG has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Chenoa Bosch CX Uni, XT-11 LG comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
