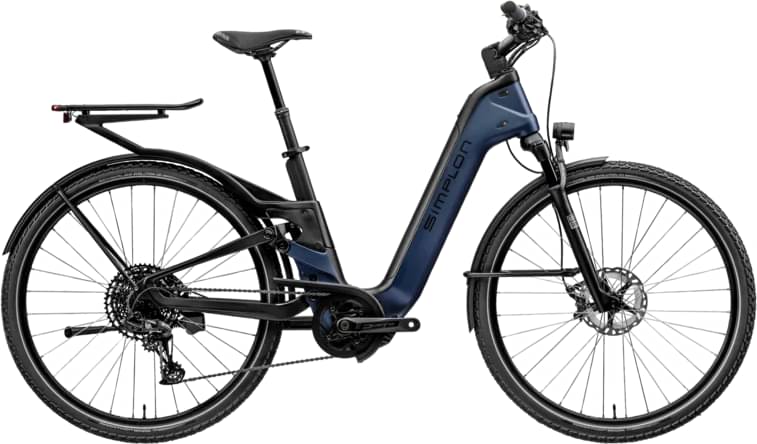

simplon Chenoa MAX Uni, Deore-10 LG 2022
2022 E-bike
Estimate price |
8,028$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset Deore, FSA -
Suspension Full -
Battery Bosch Performance Line CX + Power T. 500 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa MAX, cosmic red/black matt, 400
Suspension Fork
Rock Shox PARAGON Gold Disc, 65mm
Rear Shock
Rock Shox Deluxe SELECT
Drivetrain
Rear Derailleur
Shimano Deore-10, Linkglide
Shift Levers
Shimano Deore-10, Linkglide
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
8.5Disc-FDT5*100-RDT12*142,SmSam+Re,Sh11
Tires
Schwalbe SMART SAM 28 x 2,1"
Brakes
Brakes
T8120(4/2K);PM6;PM7;2*180;CL/CL;DIV
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON BAR 640
Grips
Simplon "SOFT PUS"
Headset
Smart Headset
Seat
Saddle
w/o saddle
Seatpost
Kindshock LEV Integra 31.6, 125mm travel
Motor & Battery
Battery
Bosch Performance Line CX + Power T. 500
Remote
Bosch KIOX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.539 mm | 1.548 mm | 1.545 mm |
| Front Center | 683 mm | 694 mm | 710 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 88 mm | 88 mm | 88 mm |
| Stack | 628 mm | 641 mm | 655 mm |
| Reach | 408 mm | 414 mm | 424 mm |
| Top Tube Length | 606 mm | 616 mm | 631 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 400 mm | 470 mm | 540 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 522 mm | 522 mm | 522 mm |
| Wheelbase | 1199 mm | 1210 mm | 1226 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm |
| Standover Height | 395 mm | 395 mm | 395 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
Chenoa MAX Uni, Deore-10 LG is part of the Simplon E Chenoa model. There are 43 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
The most economical model, the Simplon Chenoa UNI 8L 2022 has a starting price of 4883$. Simplon Chenoa MAX Uni, E14 2022 on the other hand is the most expensive at 9449$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7431$. Comparing the average cost of a Commuter e-bike to this one, you will see that Chenoa MAX Uni, Deore-10 LG price is 189.26% more expensive.
Chenoa MAX Uni, Deore-10 LG components
Fork
Simplon Chenoa MAX Uni, Deore-10 LG 2022 e-bike is equipped with the RockShox Paragon Gold RL fork, and has 65mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Chenoa MAX Uni, Deore-10 LG e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Simplon Chenoa MAX Uni, Deore-10 LG is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Simplon Chenoa MAX Uni, Deore-10 LG e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
The Simplon model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
