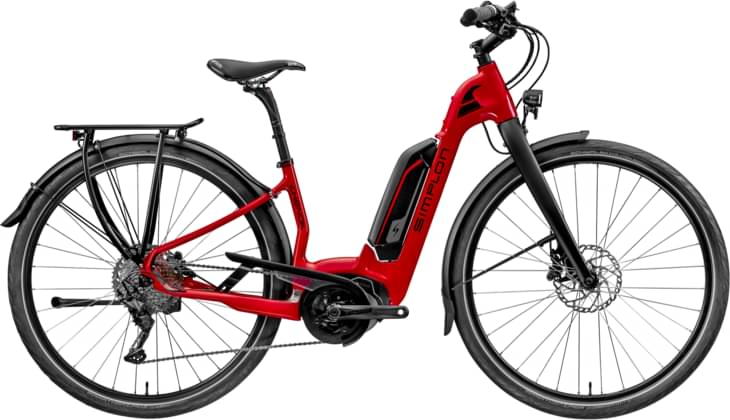

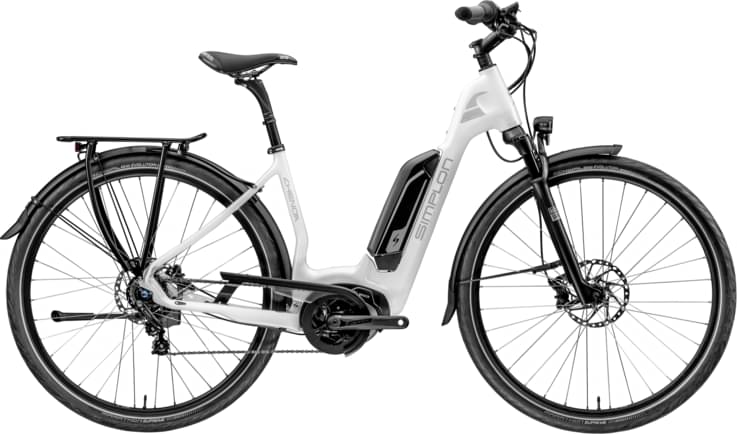

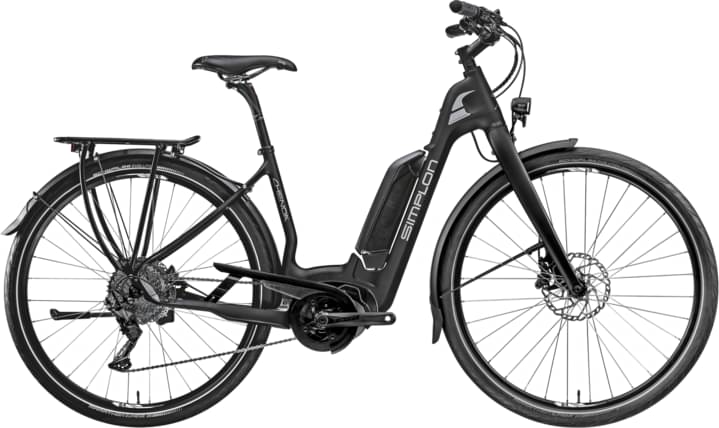

simplon Chenoa UNI Deore-10 LG 2023
2023 E-bike
Estimate price |
6,048$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Fork RockShox Paragon Gold RL -
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa Uni, Carbon Matt, 40cm
Suspension Fork
Rock Shox Paragon Gold Disc
Drivetrain
Shift Levers
Shimano Deore-10, Linkglide
Crank
FSA crankarms for Bosch GEN3 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
Simplon 8.6 Disc-Schwalbe Marathon Mondial 50-622
Tires
Schwalbe MARATHON MONDIAL 28 x 2,0"
Brakes
Brakes
Magura CT;4/2-Kolben (pistons);203mm;180mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON BAR 640
Grips
Simplon "SOFT PUS"
Headset
Headset Acros AZX-201
Seat
Saddle
w/o saddle
Seatpost
Seatpost bySchulz G.2 LT 27.2x380
Motor & Battery
Motor
Bosch Active Line Plus BES32+Bosch Powerpack 500
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 40cm | 47cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.609 mm | 1.584 mm | 1.576 mm |
| Front Center | 659 mm | 680 mm | 696 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 79 mm | 79 mm | 79 mm |
| Stack | 626 mm | 640 mm | 654 mm |
| Reach | 389 mm | 404 mm | 415 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 470 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1139 mm | 1160 mm | 1176 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 |
About this model
Chenoa UNI Deore-10 LG completes the Simplon E Chenoa model. Simplon launched 43 e-bikes of this model so far. You can easily view all of the Simplon E Chenoa e-bikes models from 2023, here.
Model range prices
The most economical model, the Simplon Chenoa Uni Shimano Nexus 8L 2023 has a starting price of 4777$. Simplon Chenoa Bosch CX B3; HE R14 SPEED (only in Switzerland) 2023 on the other hand is the most expensive at 9130$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When Simplon released this model in 2023, its price was 5520$. Comparing this to the average Commuter e-bike price, we see that the price is 114.87% higher.
Chenoa UNI Deore-10 LG components
Fork
The RockShox Paragon Gold RL is included from the factory. It has a travel distance of mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The Chenoa UNI Deore-10 LG 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Chenoa UNI Deore-10 LG has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
