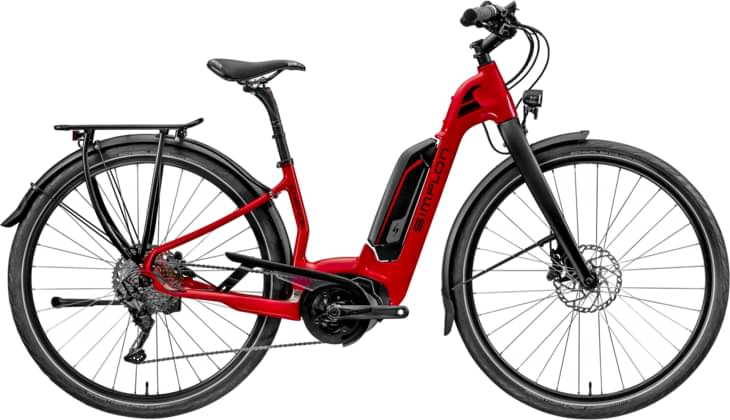

simplon Chenoa UNI NX1 Eagle 2023
2023 E-bike
Estimate price |
6,078$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Fork RockShox Paragon Gold RL -
Groupset NX, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa Uni, Carbon Matt, 40cm
Suspension Fork
Rock Shox Paragon Gold Disc
Drivetrain
Shift Levers
SRAM NX1 Eagle
Crank
FSA crankarms for Bosch GEN3 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
Simplon 8.6 Disc-Schwalbe Marathon Mondial 50-622
Tires
Schwalbe MARATHON MONDIAL 28 x 2,0"
Brakes
Brakes
Magura CT;4/2-Kolben (pistons);203mm;180mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON BAR 640
Grips
Simplon "SOFT PUS"
Headset
Headset Acros AZX-201
Seat
Saddle
w/o saddle
Seatpost
Seatpost bySchulz G.2 LT 27.2x380
Motor & Battery
Motor
Bosch Active Line Plus BES32+Bosch Powerpack 500
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 40cm | 47cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.609 mm | 1.584 mm | 1.576 mm |
| Front Center | 659 mm | 680 mm | 696 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 79 mm | 79 mm | 79 mm |
| Stack | 626 mm | 640 mm | 654 mm |
| Reach | 389 mm | 404 mm | 415 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 470 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1139 mm | 1160 mm | 1176 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 |
About this model
Chenoa UNI NX1 Eagle completes the Simplon E Chenoa model. Simplon launched 43 e-bikes of this model so far. You can easily view all of the Simplon E Chenoa e-bikes models from 2023, here.
Model range prices
The most economical model, the Simplon Chenoa Uni Shimano Nexus 8L 2023 has a starting price of 4777$. Simplon Chenoa Bosch CX B3; HE R14 SPEED (only in Switzerland) 2023 on the other hand is the most expensive at 9130$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 5626$. Comparing the average cost of a Commuter e-bike to this one, you will see that Chenoa UNI NX1 Eagle price is 119% more expensive.
Overview of components
Fork
The RockShox Paragon Gold RL is included from the factory. It has a travel distance of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Chenoa UNI NX1 Eagle 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Chenoa UNI NX1 Eagle comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
