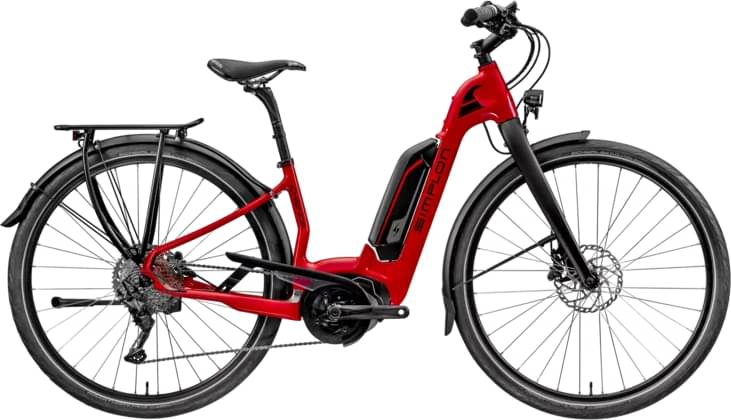

simplon Chenoa UNI XT-11 LG 2022
2022 E-bike
Estimate price |
5,963$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Fork RockShox Paragon Gold RL -
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch mid-drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa Uni, Carbon Matt, 40cm
Suspension Fork
Rock Shox Paragon Gold Disc
Drivetrain
Shift Levers
Shimano Deore-XT 11, Linkglide
Crank
FSA crankarms for Bosch GEN3 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
8.5Disc-FDT5*100-RDT5*135,MarAlm40,Shi11
Brakes
Brakes
Shim. T6000;PM7;PM7;180/180;CL/CL;II
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON BAR 720
Grips
Simplon "SOFT PUS"
Seat
Saddle
w/o saddle
Seatpost
Seatpost bySchulz G.2 LT 27.2x380
Motor & Battery
Motor
Bosch Perf. Line G3+ Power P. 500 ALS
Remote
Bosch KIOX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 40cm | 47cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.609 mm | 1.584 mm | 1.576 mm |
| Front Center | 659 mm | 680 mm | 696 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 79 mm | 79 mm | 79 mm |
| Stack | 626 mm | 640 mm | 654 mm |
| Reach | 389 mm | 404 mm | 415 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 470 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1139 mm | 1160 mm | 1176 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 |
About this model
Chenoa UNI XT-11 LG is part of the Simplon E Chenoa model. Simplon launched 43 e-bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Simplon Chenoa UNI 8L 2022 is the most economical model, with a starting price of 4883$. Simplon Chenoa MAX Uni, E14 2022 on the other hand costs 9449$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 5520$. Comparing the average cost of a Commuter e-bike to this one, you will see that Chenoa UNI XT-11 LG price is 114.87% more expensive.
Chenoa UNI XT-11 LG components
Fork
This e-bike has the RockShox Paragon Gold RL fork installed. The fork’s travel is mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Chenoa UNI XT-11 LG e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Chenoa UNI XT-11 LG comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
