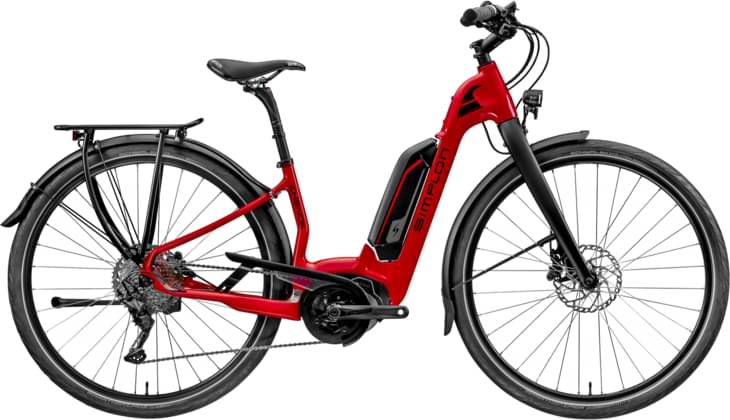

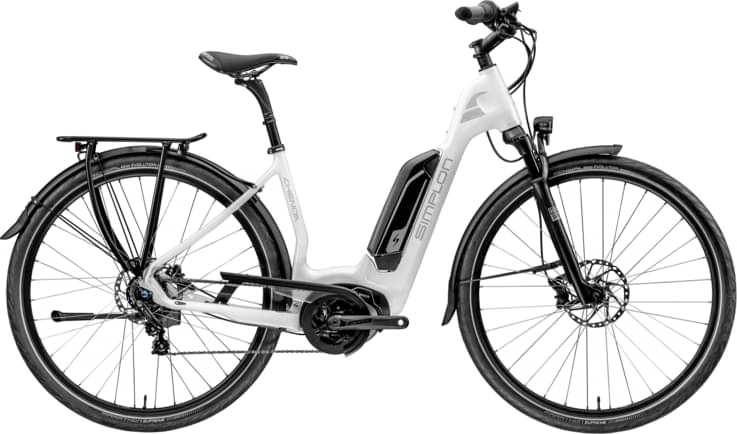

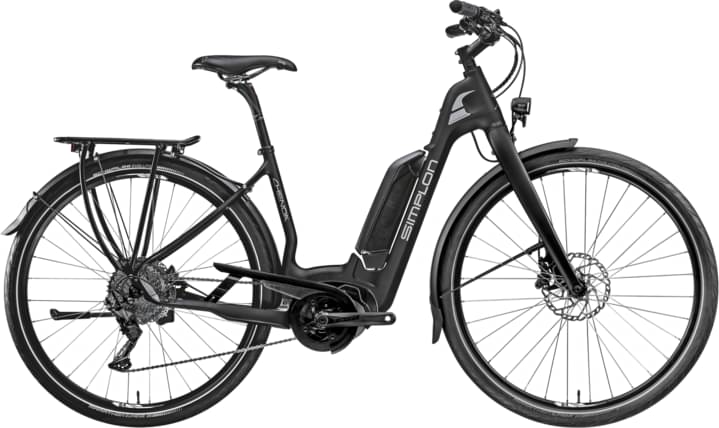

simplon Chenoa UNI XT-11 LG 2023
2023 E-bike
Estimate price |
6,651$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Fork RockShox Paragon Gold RL -
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chenoa Uni, Carbon Matt, 40cm
Suspension Fork
Rock Shox Paragon Gold Disc
Drivetrain
Shift Levers
Shimano Deore-XT 11, Linkglide
Crank
FSA crankarms for Bosch GEN3 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
Simplon 8.6 Disc-Schwalbe Marathon Mondial 50-622
Tires
Schwalbe MARATHON MONDIAL 28 x 2,0"
Brakes
Brakes
Magura CT;4/2-Kolben (pistons);203mm;180mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON BAR 640
Grips
Simplon "SOFT PUS"
Headset
Headset Acros AZX-201
Seat
Saddle
w/o saddle
Seatpost
Seatpost bySchulz G.2 LT 27.2x380
Motor & Battery
Motor
Bosch Performance Cruise GEN3 BES32+Bosch Powerpack 500
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 40cm | 47cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.609 mm | 1.584 mm | 1.576 mm |
| Front Center | 659 mm | 680 mm | 696 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 79 mm | 79 mm | 79 mm |
| Stack | 626 mm | 640 mm | 654 mm |
| Reach | 389 mm | 404 mm | 415 mm |
| Top Tube Length | 585 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 470 mm | 540 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 165 mm | 180 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1139 mm | 1160 mm | 1176 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 |
About this model
Chenoa UNI XT-11 LG is a Simplon E Chenoa model. Simplon released 43 e-bikes variations of this model so far. Take a sneak peek at all Simplon E Chenoa e-bikes models from 2023, by clicking here.
Model range prices
Simplon Chenoa Uni Shimano Nexus 8L 2023 is the most affordable e-bike of this model and has a price of 4777$. On the other hand, Simplon Chenoa Bosch CX B3; HE R14 SPEED (only in Switzerland) 2023, is the most expensive and costs 9130$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6157$. In conclusion, this e-bike price is 139.67% higher than the price of the average Commuter e-bike.
Chenoa UNI XT-11 LG components
Fork
The RockShox Paragon Gold RL is included from the factory. It has a travel distance of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on Chenoa UNI XT-11 LG are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Simplon Chenoa UNI XT-11 LG is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
