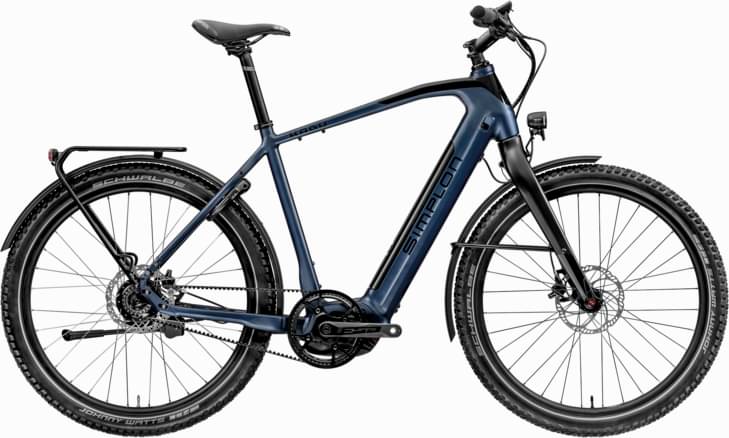

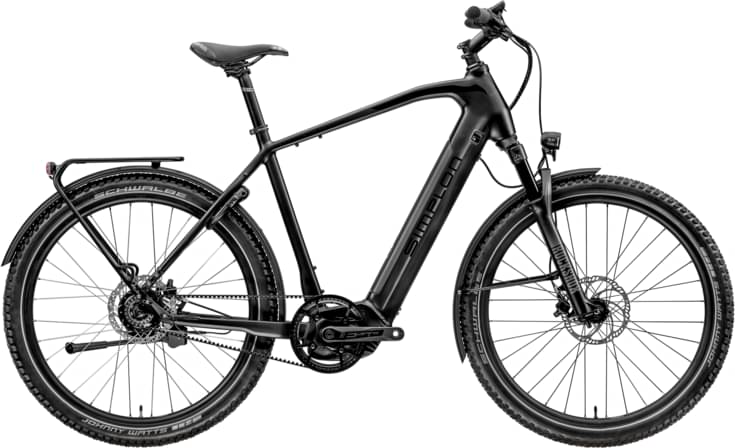

simplon Kagu Bosch CX 275 B3 Men, Sram NX Eagle 2024
2024 E-bike
Estimate price |
6,165$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 80mm -
Fork RockShox 35 Gold RL
-
Groupset NX, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kagu Bosch CX 275, Man, Black Matt | Black Glossy, S (46)
Suspension Fork
35 Gold RL 80mm (21)
Drivetrain
Shift Levers
SRAM NX1 Eagle
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
no pedal selected
Wheels
Rims
Simplon 5.5 Disc-Schwalbe Johnny Watts 60-584
Tires
Schwalbe JOHNY WATTS 27,5 x 2,35"
Brakes
Brakes
Magura CT;4/2-Kolben (pistons);203mm;180mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CX-4 COMFORT
Grips
Griffe Ergon GP 10 L
Headset
Headset Acros AZX-258
Seat
Saddle
w/o saddle
Seatpost
Sattelstütze bySchulz G.2 LT 31.6x380
Motor & Battery
Motor
Bosch Performance Line CX BES3 +Bosch Powertube 625 vertikal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.668 mm | 1.647 mm | 1.661 mm | 1.671 mm |
| Front Center | 670 mm | 681 mm | 686 mm | 692 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 73 mm | 73 mm | 73 mm |
| Stack | 652 mm | 657 mm | 666 mm | 675 mm |
| Reach | 391 mm | 399 mm | 401 mm | 404 mm |
| Top Tube Length | 590 mm | 600 mm | 605 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 175 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1146 mm | 1157 mm | 1162 mm | 1168 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 749 mm | 786 mm | 823 mm | 858 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Kagu Bosch CX 275 B3 Men, Sram NX Eagle belongs to the Simplon E Kagu model. Simplon released 58 e-bikes variations of this model so far. You can easily view all of the Simplon E Kagu e-bikes models from 2024, here.
Model range prices
Simplon Kagu Bosch Uni 275 Shimano Nexus 8L 2024 is the most economical model, with a starting price of 4658$. Simplon Kagu Pinion Men, Pinion E 1.12 2024 on the other hand costs 8470$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Commuter e-bikes average price
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Simplon released this model in 2024, its price was 5611$. Comparing this to the average Commuter e-bike price, we see that the price is 118.41% higher.
Overview of components
Fork
This e-bike has the RockShox 35 Gold RL fork installed. The fork’s travel is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The Kagu Bosch CX 275 B3 Men, Sram NX Eagle 2024 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Kagu Bosch CX 275 B3 Men, Sram NX Eagle has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Simplon Kagu Bosch CX 275 B3 Men, Sram NX Eagle e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
