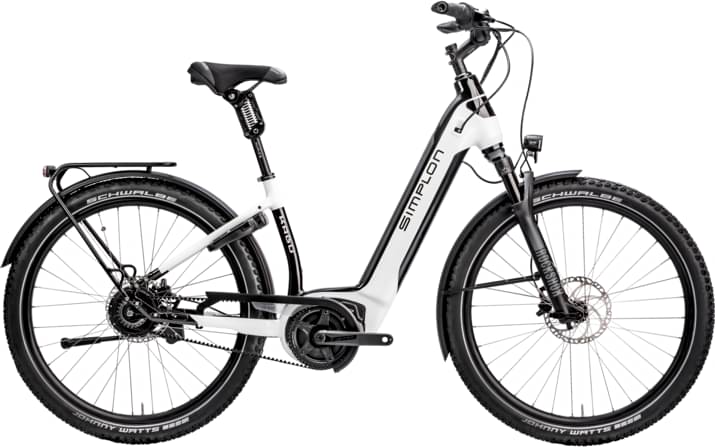

simplon Kagu Bosch Uni 275 Enviolo TR 2024
2024 E-bike
Estimate price |
6,281$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 80mm -
Fork RockShox 35 Gold RL
-
Groupset FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kagu Bosch Uni 275, Uni, Pearl White Glossy | Black Glossy,
Suspension Fork
35 Gold RL 80mm (21)
Drivetrain
Shift Levers
Gates Enviolo TR für Gen3, 50/24 Automatiq
Crank
FSA crankarms for Bosch GEN3 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Frame mount belt guard A08
Pedals
no pedal selected
Wheels
Rims
Simplon 5.5 Disc-Schwalbe Super Moto 62-584
Tires
Schwalbe SUPER MOTO 27,5 x 2,4"
Brakes
Brakes
Magura CT;4/2-Kolben (pistons);203mm;180mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CX-4 COMFORT
Grips
Griffe Ergon GP 10 L
Headset
Headset Acros AZX-258
Seat
Saddle
w/o saddle
Seatpost
Sattelstütze bySchulz G.2 LT 31.6x380
Motor & Battery
Motor
Bosch Performance Cruise GEN3 BES2+Bosch Powertube 625
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.676 mm | 1.69 mm | 1.705 mm | 1.683 mm |
| Front Center | 673 mm | 679 mm | 684 mm | 689 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 73 mm | 73 mm | 73 mm |
| Stack | 657 mm | 666 mm | 675 mm | 675 mm |
| Reach | 392 mm | 394 mm | 396 mm | 401 mm |
| Top Tube Length | 605 mm | 610 mm | 615 mm | 620 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 180 mm | 190 mm | 200 mm | 200 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1159 mm | 1165 mm | 1170 mm | 1175 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Kagu Bosch Uni 275 Enviolo TR is a Simplon E Kagu model. Simplon released 58 e-bikes variations of this model so far. You can easily view all of the Simplon E Kagu e-bikes models from 2024, here.
Model range prices
Simplon Kagu Bosch Uni 275 Shimano Nexus 8L 2024 is the cheapest e-bike model and costs 4658$. Simplon Kagu Pinion Men, Pinion E 1.12 2024 is the most expensive one and costs 8470$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Simplon released this model in 2024, its price was 5717$. Comparing the average cost of a Commuter e-bike to this one, you will see that Kagu Bosch Uni 275 Enviolo TR price is 122.54% higher.
Overview of components
Fork
This e-bike has the RockShox 35 Gold RL fork installed. The fork’s travel is 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Kagu Bosch Uni 275 Enviolo TR e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Simplon Kagu Bosch Uni 275 Enviolo TR is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
