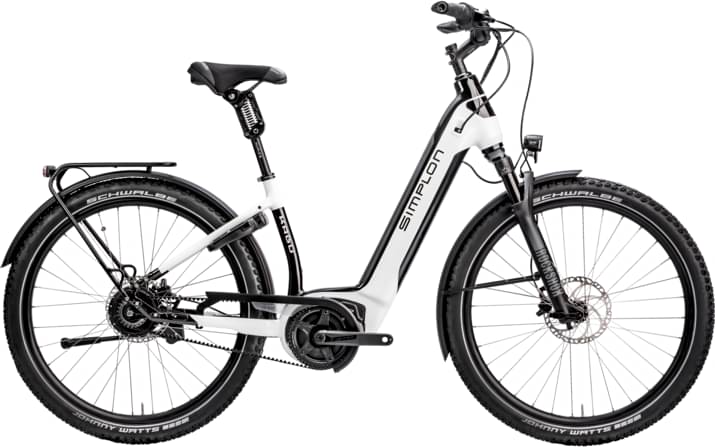

simplon Kagu Bosch Uni 275 Shimano Cues 6000 2024
2024 E-bike
Estimate price |
5,234$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 80mm -
Fork RockShox 35 Gold RL
-
Groupset CUES, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kagu Bosch Uni 275, Uni, Pearl White Glossy | Black Glossy,
Suspension Fork
35 Gold RL 80mm (21)
Drivetrain
Shift Levers
Shimano Cues 6000
Crank
FSA crankarms for Bosch GEN3 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
no pedal selected
Wheels
Rims
Simplon 5.5 Disc-Schwalbe Super Moto 62-584
Tires
Schwalbe SUPER MOTO 27,5 x 2,4"
Brakes
Brakes
Magura CT;4/2-Kolben (pistons);203mm;180mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CX-4 COMFORT
Grips
Griffe Ergon GP 10 L
Headset
Headset Acros AZX-258
Seat
Saddle
w/o saddle
Seatpost
BikeYoke Revive, 125mm, 31.6 (Remote Seatpost only)
Motor & Battery
Motor
Bosch Active Line Plus BES2+Bosch Powertube 625
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.676 mm | 1.69 mm | 1.705 mm | 1.683 mm |
| Front Center | 673 mm | 679 mm | 684 mm | 689 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 73 mm | 73 mm | 73 mm |
| Stack | 657 mm | 666 mm | 675 mm | 675 mm |
| Reach | 392 mm | 394 mm | 396 mm | 401 mm |
| Top Tube Length | 605 mm | 610 mm | 615 mm | 620 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 180 mm | 190 mm | 200 mm | 200 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1159 mm | 1165 mm | 1170 mm | 1175 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Kagu Bosch Uni 275 Shimano Cues 6000 is a Simplon E Kagu model. Simplon launched 58 e-bikes of this model so far. You can easily view all of the Simplon E Kagu e-bikes models from 2024, here.
Model range prices
Simplon Kagu Bosch Uni 275 Shimano Nexus 8L 2024 is the most affordable e-bike of this model and has a price of 4658$. On the other hand, Simplon Kagu Pinion Men, Pinion E 1.12 2024, is the most expensive and costs 8470$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Commuter e-bikes
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2024 for 4764$. Comparing the average cost of a Commuter e-bike to this one, you will see that Kagu Bosch Uni 275 Shimano Cues 6000 price is 85.44% more expensive.
Kagu Bosch Uni 275 Shimano Cues 6000 components
Fork
The fork installed on this bike is the RockShox 35 Gold RL model. The travel on this model is 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Simplon Kagu Bosch Uni 275 Shimano Cues 6000 2024, has a aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Simplon Kagu Bosch Uni 275 Shimano Cues 6000 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Simplon Kagu Bosch Uni 275 Shimano Cues 6000 e-bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
