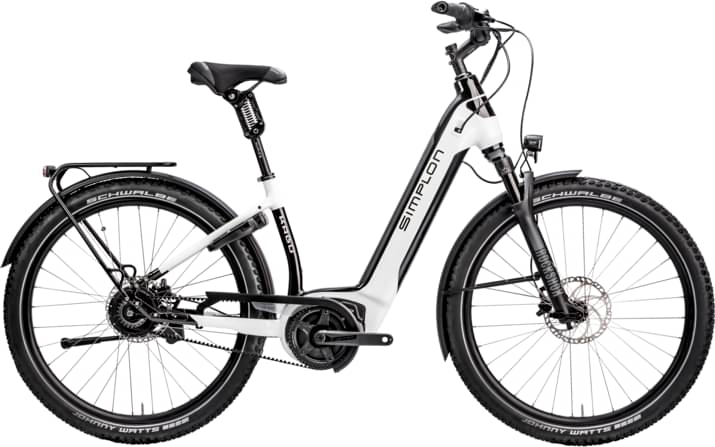

simplon Kagu Bosch Uni 275 Sram NX Eagle 2024
2024 E-bike
Estimate price |
5,234$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 80mm -
Fork RockShox 35 Gold RL
-
Groupset NX, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kagu Bosch Uni 275, Uni, Pearl White Glossy | Black Glossy,
Suspension Fork
35 Gold RL 80mm (21)
Drivetrain
Shift Levers
SRAM NX1 Eagle
Crank
FSA crankarms for Bosch GEN3 170mm
Bottom Bracket
Bosch, press-fit
Chain Guide
Horn Catena A08 38 Zähne for Bosch
Pedals
no pedal selected
Wheels
Rims
Simplon 5.5 Disc-Schwalbe Super Moto 62-584
Tires
Schwalbe SUPER MOTO 27,5 x 2,4"
Brakes
Brakes
Magura CT;4/2-Kolben (pistons);203mm;180mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CX-4 COMFORT
Grips
Griffe Ergon GP 10 L
Headset
Headset Acros AZX-258
Seat
Saddle
w/o saddle
Seatpost
Sattelstütze bySchulz G.2 LT 31.6x380
Motor & Battery
Motor
Bosch Active Line Plus BES2+Bosch Powertube 625
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.676 mm | 1.69 mm | 1.705 mm | 1.683 mm |
| Front Center | 673 mm | 679 mm | 684 mm | 689 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 73 mm | 73 mm | 73 mm |
| Stack | 657 mm | 666 mm | 675 mm | 675 mm |
| Reach | 392 mm | 394 mm | 396 mm | 401 mm |
| Top Tube Length | 605 mm | 610 mm | 615 mm | 620 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 180 mm | 190 mm | 200 mm | 200 mm |
| Chainstay Length | 495 mm | 495 mm | 495 mm | 495 mm |
| Wheelbase | 1159 mm | 1165 mm | 1170 mm | 1175 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Kagu Bosch Uni 275 Sram NX Eagle completes the Simplon E Kagu model. Simplon launched 58 e-bikes of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
The most economical model, the Simplon Kagu Bosch Uni 275 Shimano Nexus 8L 2024 has a starting price of 4658$. Simplon Kagu Pinion Men, Pinion E 1.12 2024 on the other hand is the most expensive at 8470$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2024 and its price was 4764$. Doing a quick comparison, we notice that Kagu Bosch Uni 275 Sram NX Eagle price is 85.44% more expensive than the average cost of a Commuter e-bike.
Kagu Bosch Uni 275 Sram NX Eagle components
Fork
Simplon Kagu Bosch Uni 275 Sram NX Eagle 2024 e-bike is equipped with the RockShox 35 Gold RL fork, and has 80mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, Simplon Kagu Bosch Uni 275 Sram NX Eagle 2024, has a aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Simplon Kagu Bosch Uni 275 Sram NX Eagle has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
