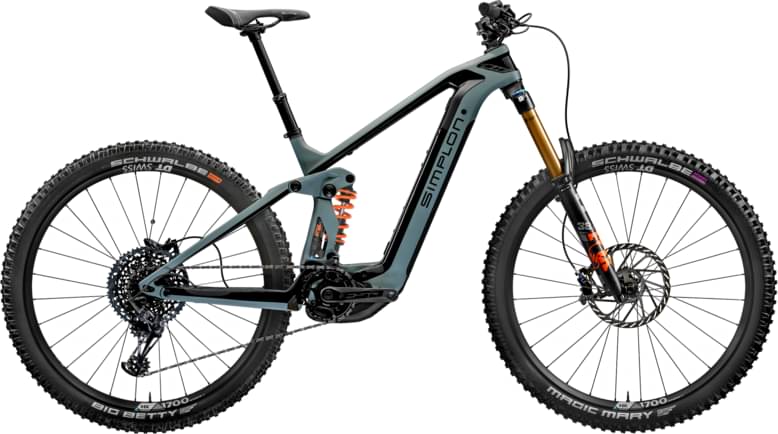

simplon Rapcon PMax XT-12 2023
2023 E-bike
Estimate price |
9,519$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Fork Fox Factory Float 38
-
Groupset XT, FSA -
Suspension Full, Electronic -
Motor Bosch 250W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
FOX 38 FLOAT 29 FACTORY 150mm LV
Rear Shock
Fox Float LIVE VALVE Factory 205x60mm
Drivetrain
Shift Levers
Shimano XT-12
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Wheels
Rims
Mavic E-Deemax-Schwalbe Nobby Nic 62-622
Tires
Schwalbe Nobby Nic 29x2.4"; Super Ground
Brakes
Brakes
SRAM Code RSC;4-Kolben (pistons);220mm;200mm
Cockpit
Stem
Simplon ZERO II 50mm x 17°
Handlebar
Simplon CARBON RISER 700 High
Grips
Simplon Shark Lock
Seat
Saddle
w/o saddle
Seatpost
Kindshock LEV Integra 31.6, 125mm travel
Motor & Battery
Motor
Bosch Performance Line CX + Power T. 500
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.38 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 732 mm | 754 mm | 791 mm | 827 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 111 mm | 112 mm | 110 mm | 111 mm |
| Stack | 611 mm | 616 mm | 629 mm | 643 mm |
| Reach | 427 mm | 447 mm | 477 mm | 507 mm |
| Top Tube Length | 578 mm | 599 mm | 632 mm | 665 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1197 mm | 1219 mm | 1256 mm | 1292 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 767 mm | 773 mm | 773 mm | 773 mm |
| Front Travel | 150 mm | 150 mm | 150 mm | 150 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rapcon PMax XT-12 is part of the Simplon E Rapcon model. Simplon released 8 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Simplon Rapcon PMax GX1 Eagle 2023 is the most affordable e-bike of this model and has a price of 8493$. On the other hand, Simplon Rapcon PMax XX1 Eagle AXS 2023, is the most expensive and costs 9874$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8812$. Comparing the average cost of an Enduro e-bike to this one, you will see that Rapcon PMax XT-12 price is 84.16% more expensive.
Rapcon PMax XT-12 components
Fork
The fork installed on this bike is the Fox Factory Float 38 model. The travel on this model is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on Rapcon PMax XT-12 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Simplon Rapcon PMax XT-12 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Rapcon PMax XT-12. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
