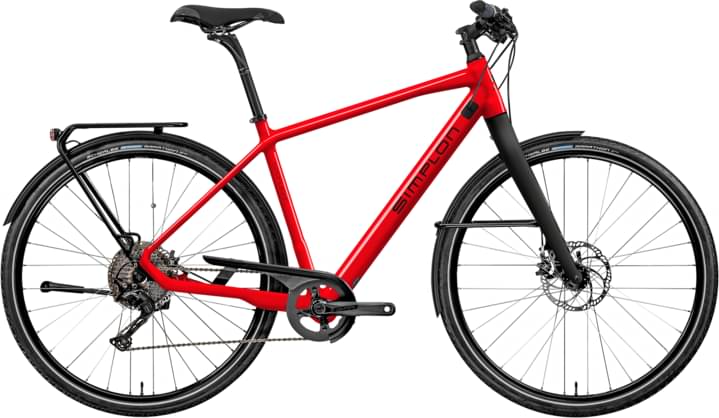

simplon Spotlight Mahle Men, XT-30 Disc 2023
2023 E-bike
Estimate price |
5,160$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 65mm -
Fork RockShox Recon Gold RL
-
Groupset XT -
Suspension Hardtail -
Motor MAHLE 55Nm hub-drive -
Battery Mahle EbikeMotion X20 236Wh ONE Remote -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Spotlight Mahle, Men, Cosmic Red Glossy/ Black Matt, 460
Suspension Fork
Rockshox Recon Gold RL 65mm
Drivetrain
Shift Levers
Shimano XT-30 Disc
Crank
just standard crank available
Bottom Bracket
BSA, threaded
Chain Guide
Frame mount belt guard A08,48T.
Pedals
Simplon GRIP II, Alloy/ rubber
Wheels
Rims
Mavic Allroad-Schwalbe Smart Sam 54-622
Tires
Schwalbe SMART SAM 28 x 2,1"
Brakes
Brakes
Shimano T6000;2-Kolben (pistons);180mm;180mm
Cockpit
Stem
Ergotec Swell R-Ahead Vorbau
Handlebar
Simplon CARBON BAR 640
Grips
Simplon "SOFT PUS"
Headset
Acros AZX-220
Seat
Saddle
w/o saddle
Seatpost
Seatpost bySchulz G.2 LT 27.2x380
Motor & Battery
Motor
Mahle EbikeMotion X20 236Wh ONE Remote
Battery
Mahle EbikeMotion X20 236Wh ONE Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.59 mm | 1.59 mm | 1.58 mm |
| Front Center | 652 mm | 662 mm | 677 mm | 692 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 76 mm | 73 mm | 68 mm | 66 mm |
| Stack | 602 mm | 623 mm | 644 mm | 665 mm |
| Reach | 386 mm | 393 mm | 406 mm | 420 mm |
| Top Tube Length | 572 mm | 592 mm | 612 mm | 632 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1099 mm | 1109 mm | 1124 mm | 1139 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 742 mm | 778 mm | 820 mm | 861 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Spotlight Mahle Men, XT-30 Disc belongs to the Simplon E Spotlight model. Simplon launched 18 e-bikes of this model so far. You can easily view all of the Simplon E Spotlight e-bikes models from 2023, here.
Model range prices
Simplon Spotlight Mahle Men, Deore-30 Disc 2023 is the most economical model, with a starting price of 4565$. Simplon Spotlight Bosch CX B3; UNI R14 2023 on the other hand costs 6476$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
At the moment of the release date, Simplon Spotlight Mahle Men, XT-30 Disc price was 4777$. In conclusion, this e-bike price is 85.95% higher than the price of the average Commuter e-bike.
Overview of components
Fork
The fork installed on this bike is the RockShox Recon Gold RL model. The travel on this model is 65mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Simplon Spotlight Mahle Men, XT-30 Disc 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
