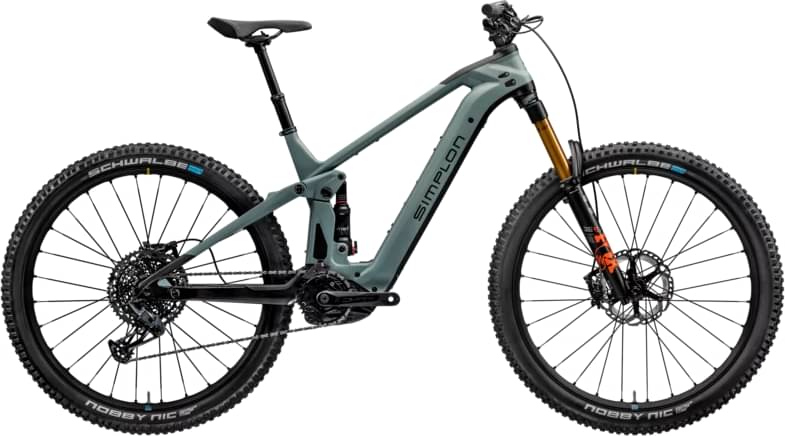

simplon Stomp Pmax XT-12 2022
2022 E-bike
Estimate price |
8,724$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Fork RockShox 35 Gold RL
-
Groupset XT, FSA -
Suspension Full -
Battery Bosch Performance Line CX + Power T. 500 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Stomp Pmax, cosmic red/black matt, S/380
Suspension Fork
35 Gold RL 140
Rear Shock
Rock Shox Deluxe SELECT+ RT
Drivetrain
Rear Derailleur
Shimano XT-12
Shift Levers
Shimano XT-12
Crank
FSA CK-745 alloy für Bosch Gen. 4 170mm
Bottom Bracket
Bosch, press-fit
Wheels
Rims
HX1501,29",MY22,BST-J.Watts2.35-Shim12
Tires
Schwalbe JOHNY WATTS 29 x 2,35"
Brakes
Brakes
SRAM Code;PM6;PM7;200/200;CL/CL;DIV
Cockpit
Stem
Simplon ZERO II 50mm x 17°
Handlebar
Simplon Riser Alu 800mm
Grips
Simplon Shark Lock
Seat
Saddle
w/o saddle
Seatpost
Kindshock LEV Integra 31.6, 125mm travel
Motor & Battery
Battery
Bosch Performance Line CX + Power T. 500
Remote
Bosch Intuvia
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.37 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 757 mm | 768 mm | 799 mm | 833 mm |
| Rake | 50 mm | 51 mm | 51 mm | 51 mm |
| Trail | 119 mm | 111 mm | 111 mm | 111 mm |
| Stack | 606.8 mm | 612.4 mm | 627 mm | 647 mm |
| Reach | 427 mm | 447 mm | 472 mm | 497 mm |
| Top Tube Length | 568 mm | 589 mm | 618 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 65 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 111.5 mm | 111.5 mm | 127.5 mm | 149.4 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1207 mm | 1218 mm | 1249 mm | 1283 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 755 mm | 755 mm | 755 mm | 755 mm |
| Front Travel | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Stomp Pmax XT-12 belongs to the Simplon E Stomp model. There are 5 e-bikes that carry this model name. You can easily view all of the Simplon E Stomp e-bikes models from 2022, here.
Model range prices
The most economical model, the Simplon Stomp Pmax Deore-10 LG 2022 has a starting price of 7538$. Simplon Stomp Pmax E14 2022 on the other hand is the most expensive at 9024$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Simplon released this model in 2022, its price was 7962$. Comparing the average cost of a Trail e-bike to this one, you will see that Stomp Pmax XT-12 price is 136.61% more expensive.
Overview of components
Fork
This e-bike has the RockShox 35 Gold RL fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Stomp Pmax XT-12 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Stomp Pmax XT-12 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Stomp Pmax XT-12. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
