Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aethos FACT 10R Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc
Suspension Fork
FACT Carbon, 12x100mm thru-axle, flat-mount disc
Drivetrain
Bottom Bracket
BSA, 68mm, threaded
Seat
Seatpost
Roval Alpinist Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.39 mm | 1.42 mm | 1.43 mm | 1.47 mm | 1.5 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 574 mm | 577 mm | 579 mm | 591 mm | 606 mm | 613 mm |
| Rake | 47 mm | 47 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 63 mm | 58 mm | 58 mm | 55 mm | 55 mm | 52 mm |
| Stack | 511 mm | 524 mm | 541 mm | 562 mm | 588 mm | 609 mm |
| Reach | 372 mm | 377 mm | 381 mm | 392 mm | 399 mm | 405 mm |
| Top Tube Length | 505 mm | 528 mm | 537 mm | 559 mm | 574 mm | 592 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 431 mm | 462 mm | 481 mm | 504 mm | 532 mm | 567 mm |
| Head Tube Angle | 71.75 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 109 mm | 120 mm | 137 mm | 157 mm | 184 mm | 204 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 970 mm | 972 mm | 975 mm | 988 mm | 1002 mm | 1009 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 702 mm | 725 mm | 745 mm | 766 mm | 793 mm | 821 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |

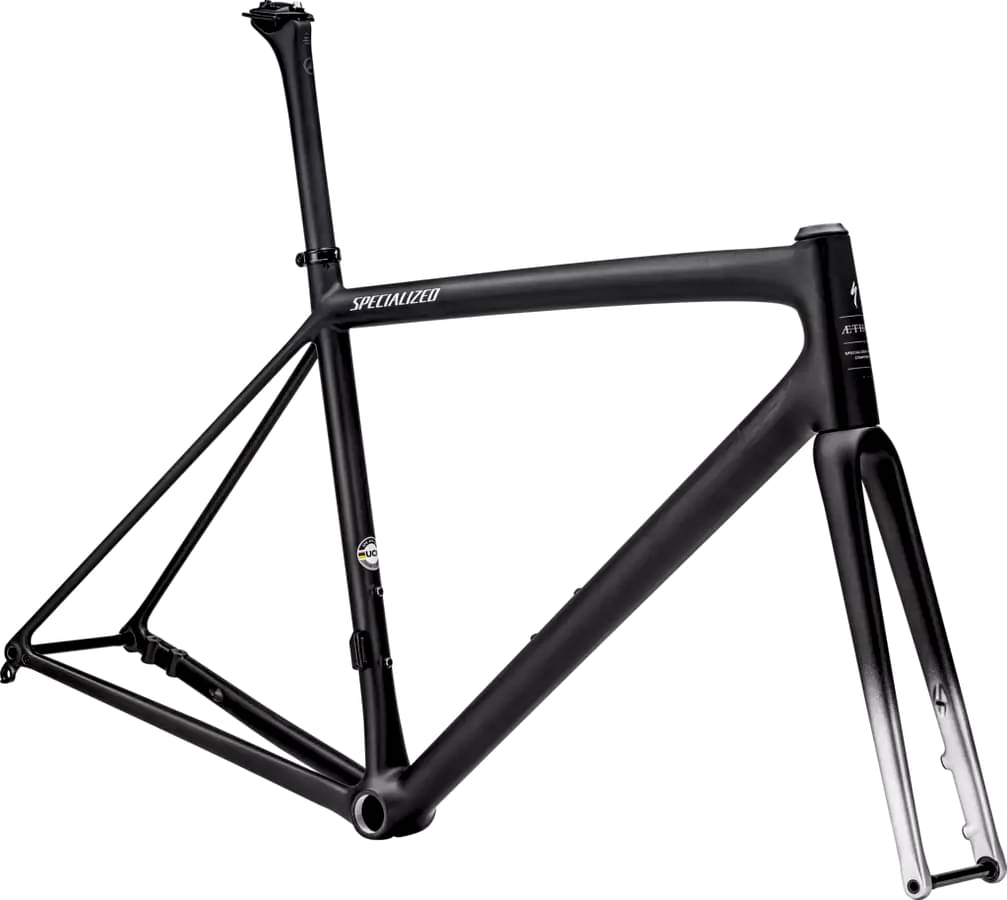

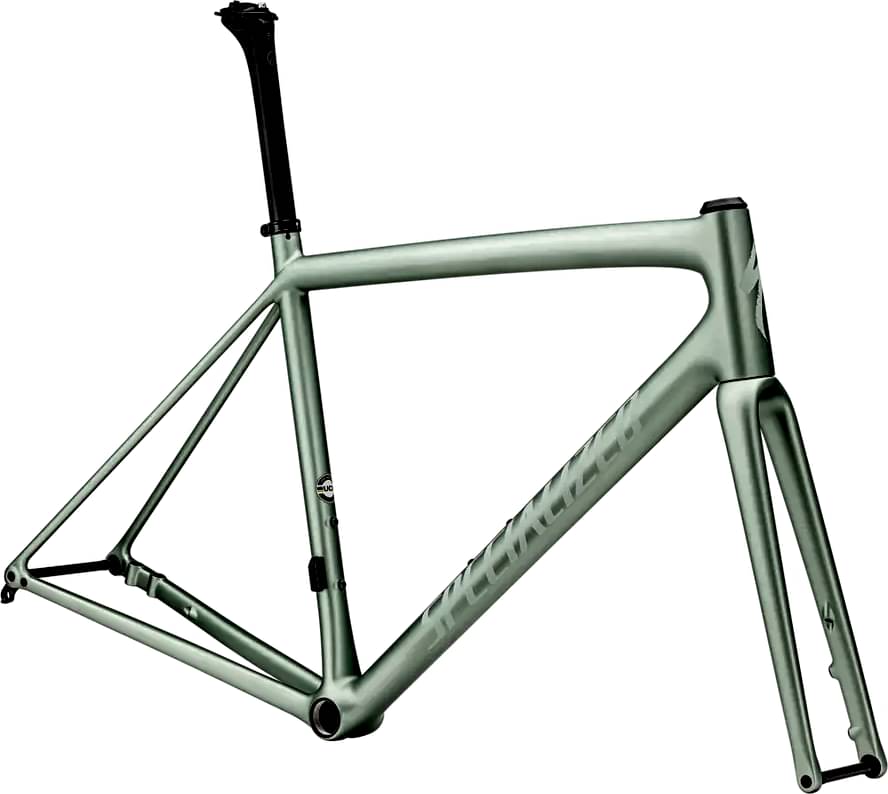

Model Overview
Aethos Frameset is part of the Specialized Aethos model. There are 38 frames that carry this model name. Take a sneak peek at all Specialized Aethos frames models from 2023, by clicking here.
Model range prices
The most economical model, the Specialized Aethos Frameset 2023 has a starting price of 3000$. Specialized S-Works Aethos Frameset 2023 on the other hand is the most expensive at 5000$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Race frames average price
Our math shows that the average cost of a dependable Race frame is 2445$. However, even though the average price of a Race frame is lower, you might still be able to get a top-quality frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
This frame was released in 2023 and its price was 3000$. Comparing the average cost of a Race frame to this one, you will see that Aethos Frameset price is 22.7% higher.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Sizes
Aethos Frameset comes in 6 sizes, that range from 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
