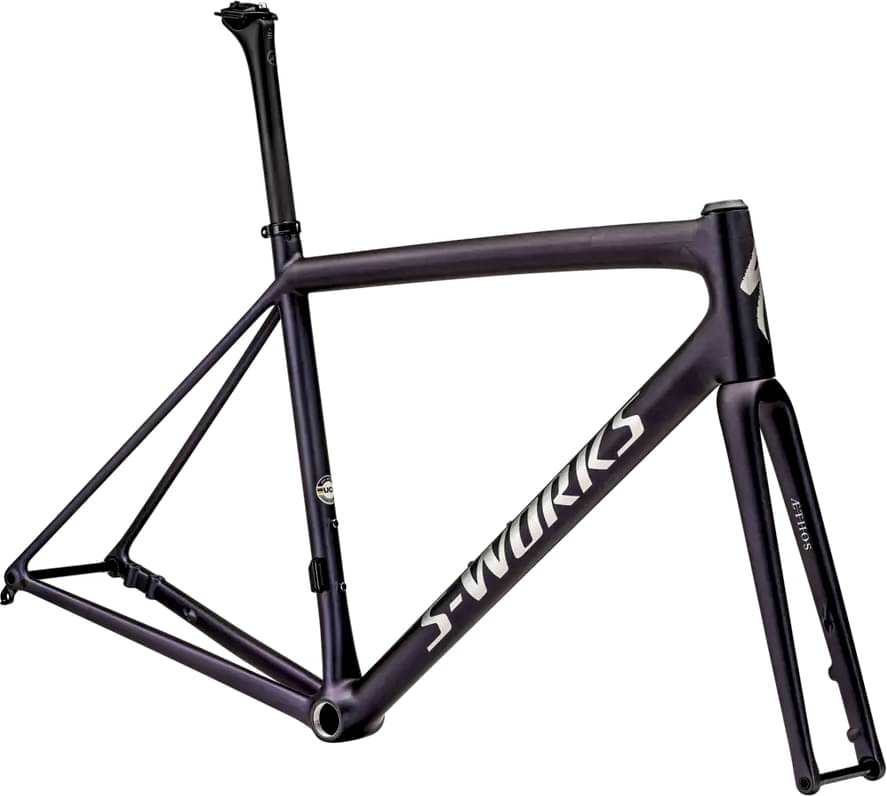

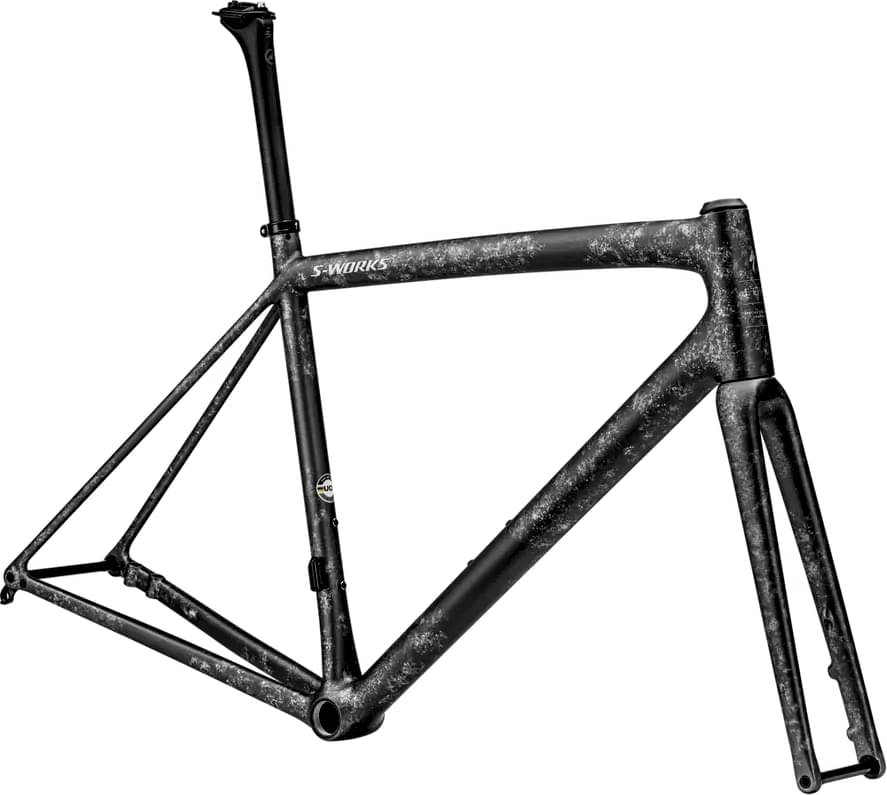

Specialized S-Works Aethos Frameset 2023
2023 Road
Estimate price |
5,000$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
49cm
155cm - 163cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
61cm
183cm - 191cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works Aethos FACT 12r Carbon, Rider First Engineered™, Threaded BB, Electronic cable routing only, 12x142mm thru-axle, flat-mount disc
Suspension Fork
S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Drivetrain
Bottom Bracket
BSA, 68mm, threaded
Seat
Seatpost
Roval Alpinist Carbon Seatpost
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.39 mm | 1.42 mm | 1.43 mm | 1.47 mm | 1.5 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 574 mm | 577 mm | 579 mm | 591 mm | 606 mm | 613 mm |
| Rake | 47 mm | 47 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 63 mm | 58 mm | 58 mm | 55 mm | 55 mm | 52 mm |
| Stack | 511 mm | 524 mm | 541 mm | 562 mm | 588 mm | 609 mm |
| Reach | 372 mm | 377 mm | 381 mm | 392 mm | 399 mm | 405 mm |
| Top Tube Length | 505 mm | 528 mm | 537 mm | 559 mm | 574 mm | 592 mm |
| Seat Tube Angle | 75.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 431 mm | 462 mm | 481 mm | 504 mm | 532 mm | 567 mm |
| Head Tube Angle | 71.75 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 109 mm | 120 mm | 137 mm | 157 mm | 184 mm | 204 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 970 mm | 972 mm | 975 mm | 988 mm | 1002 mm | 1009 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 702 mm | 725 mm | 745 mm | 766 mm | 793 mm | 821 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
Model Overview
S-Works Aethos Frameset completes the Specialized Aethos model. 38 frames variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Specialized Aethos Frameset 2023 is the most affordable frame of this model and has a price of 3000$. On the other hand, Specialized S-Works Aethos Frameset 2023, is the most expensive and costs 5000$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race frames
If you want to purchase a solid Race frame, it is important to know that the average cost is 2445$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5000$. In conclusion, this frame price is 104.5% higher than the price of the average Race frame.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
S-Works Aethos Frameset has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Sizes
Specialized S-Works Aethos Frameset frame has 6 sizes, in the range of 155 cm – 191 cm (5.09 ft – 6.27 ft). In short, it won’t be difficult to find the right one for you.
