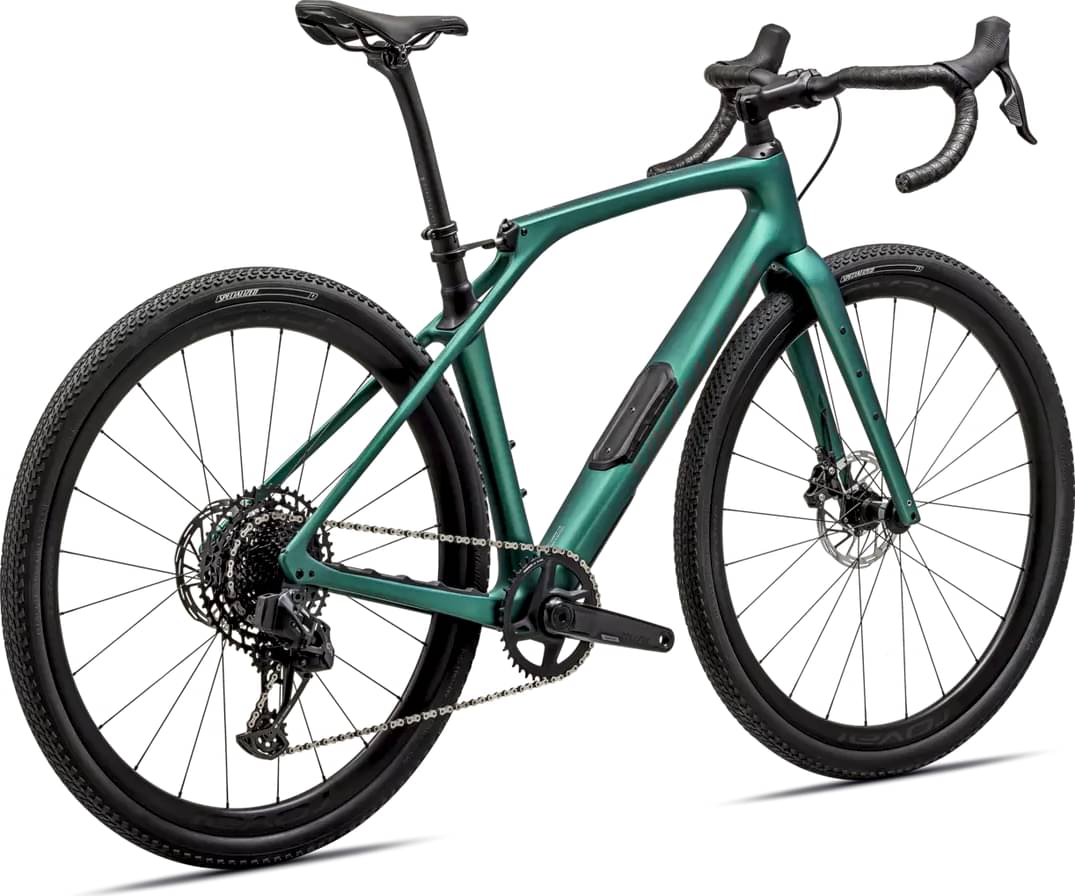

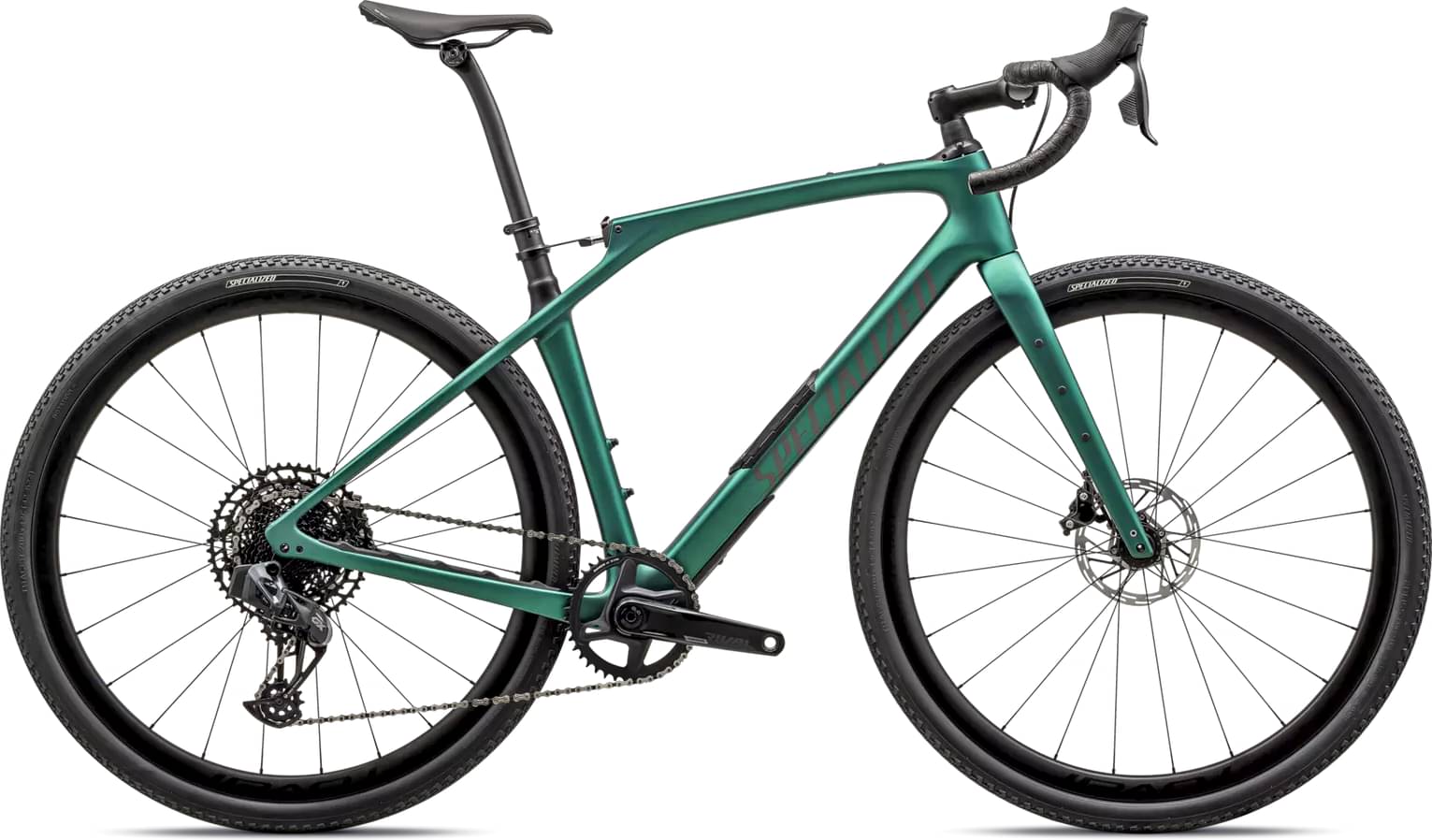

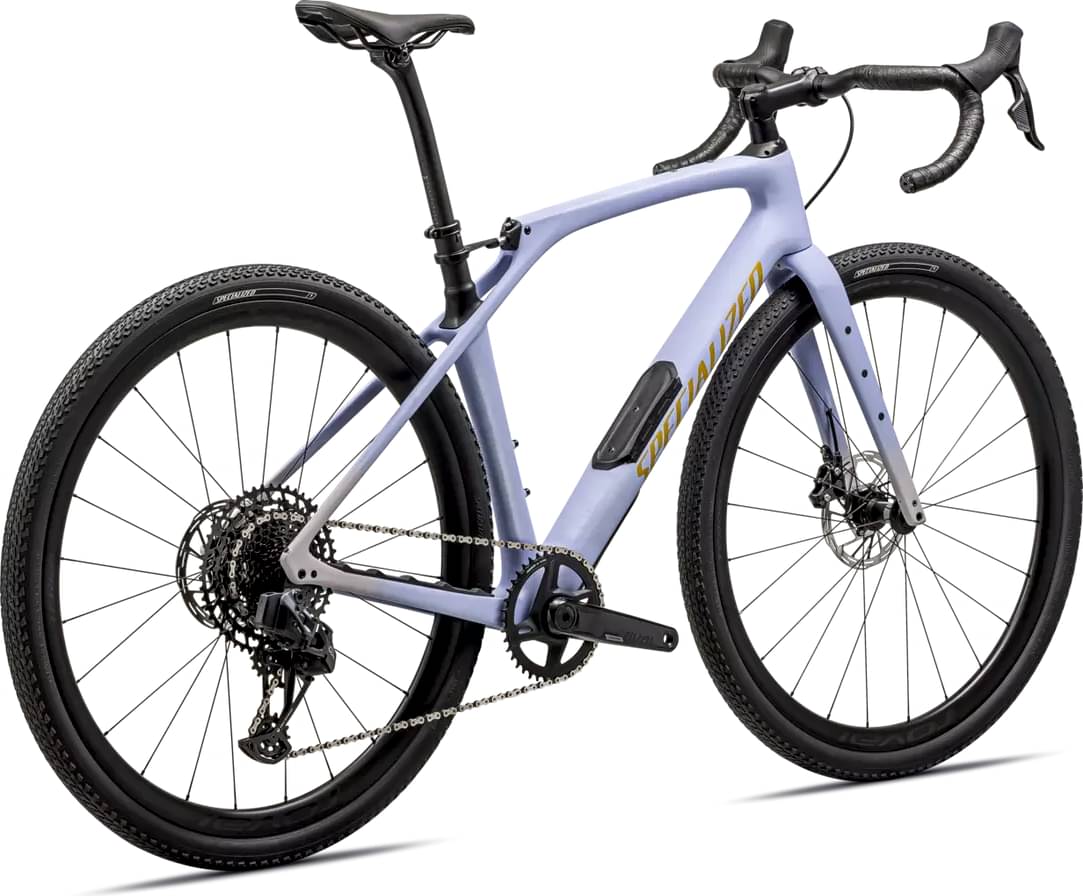

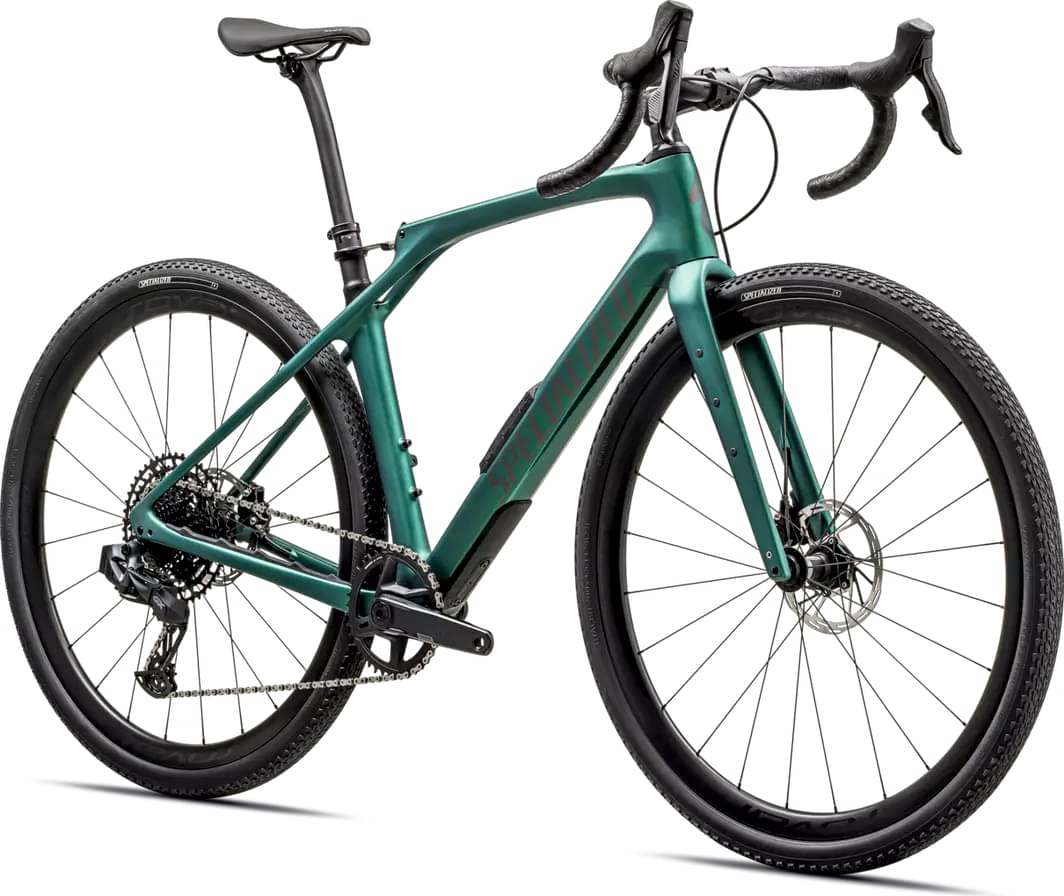

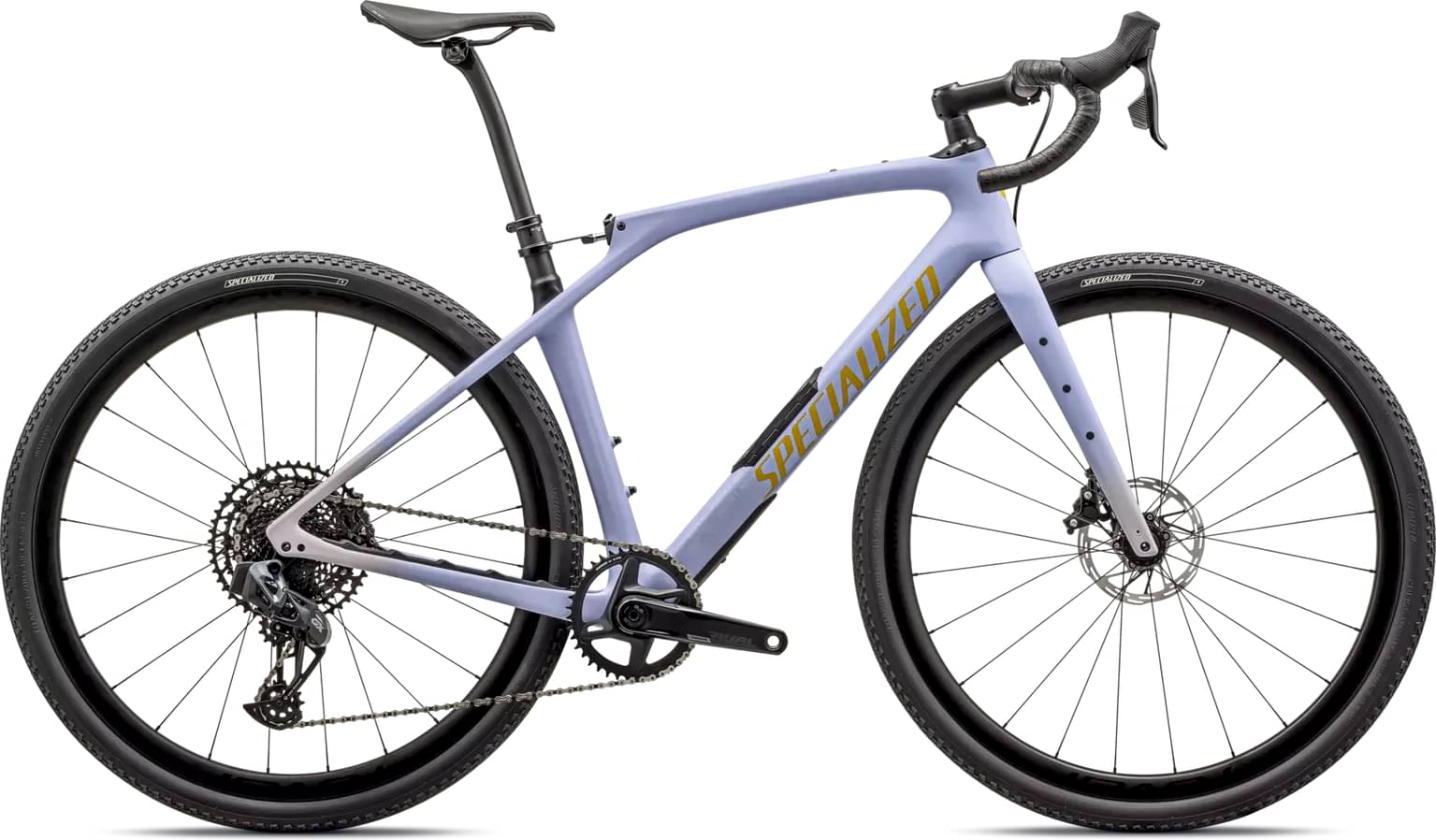

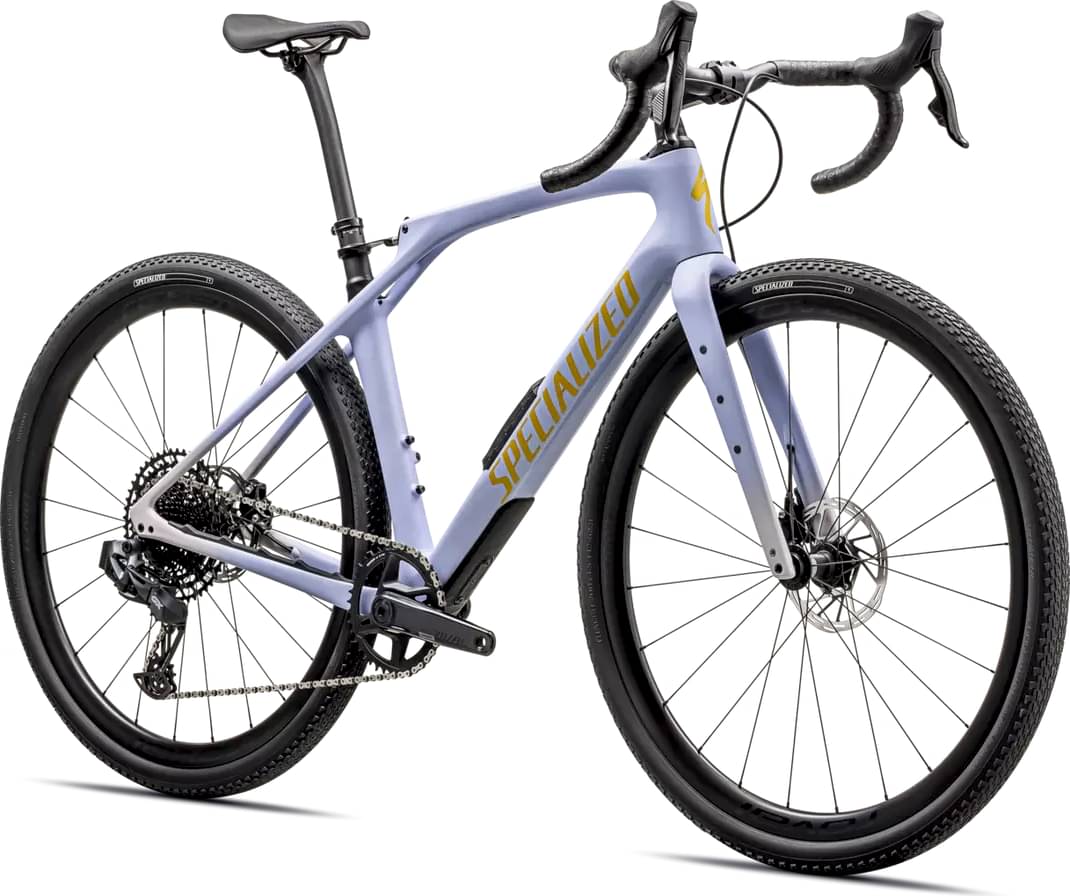

Specialized Diverge STR Expert 2024
2024 Road
Estimate price |
8,029$
Weight | 9.93 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 20mm -
Travel Rear 30mm -
Fork Specialized Future Shock
-
Groupset GX Eagle AXS, Rival AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
49cm
155cm - 164cm
52cm
161cm - 171cm
54cm
169cm - 178cm
56cm
175cm - 181cm
58cm
179cm - 189cm
61cm
187cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

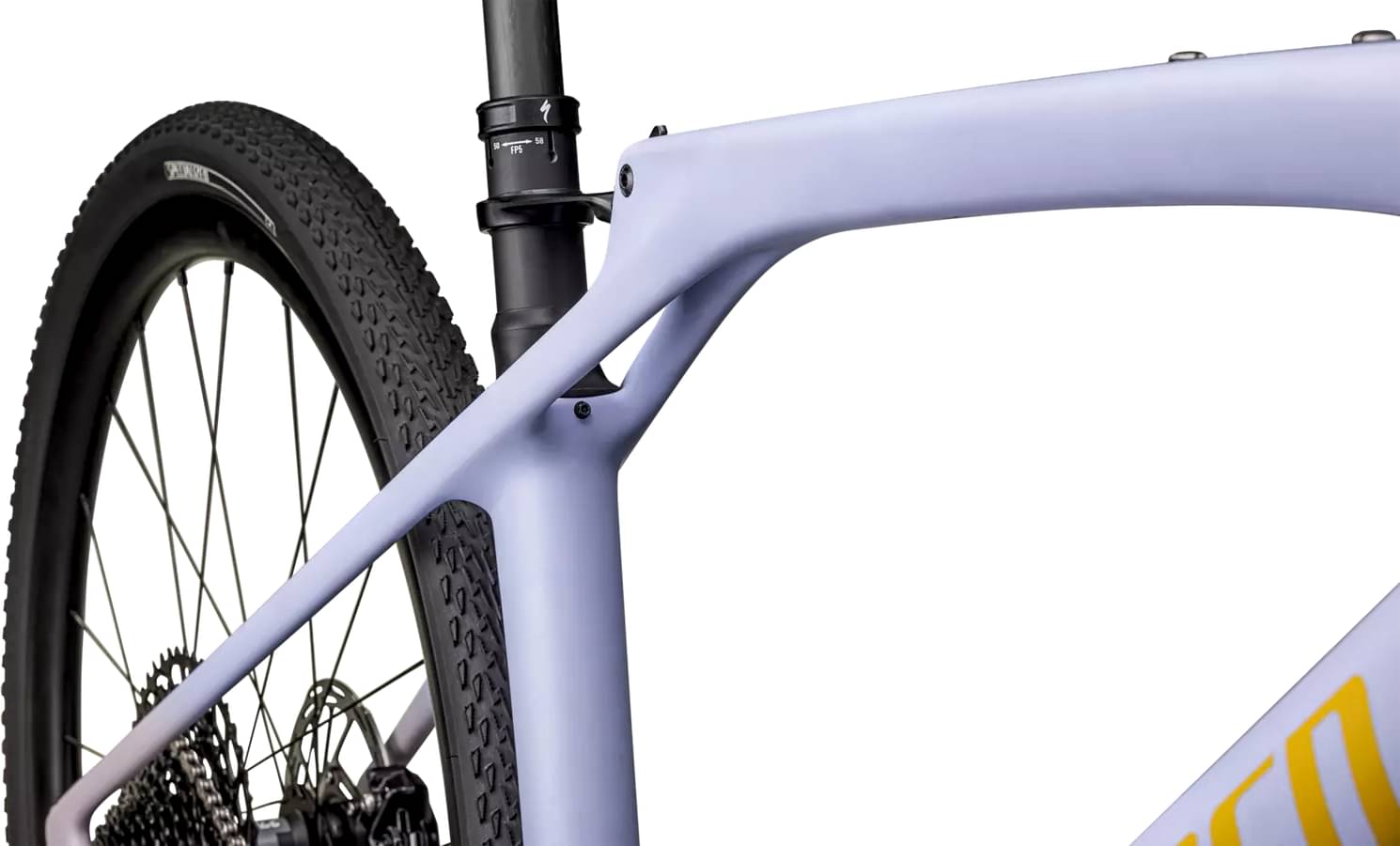

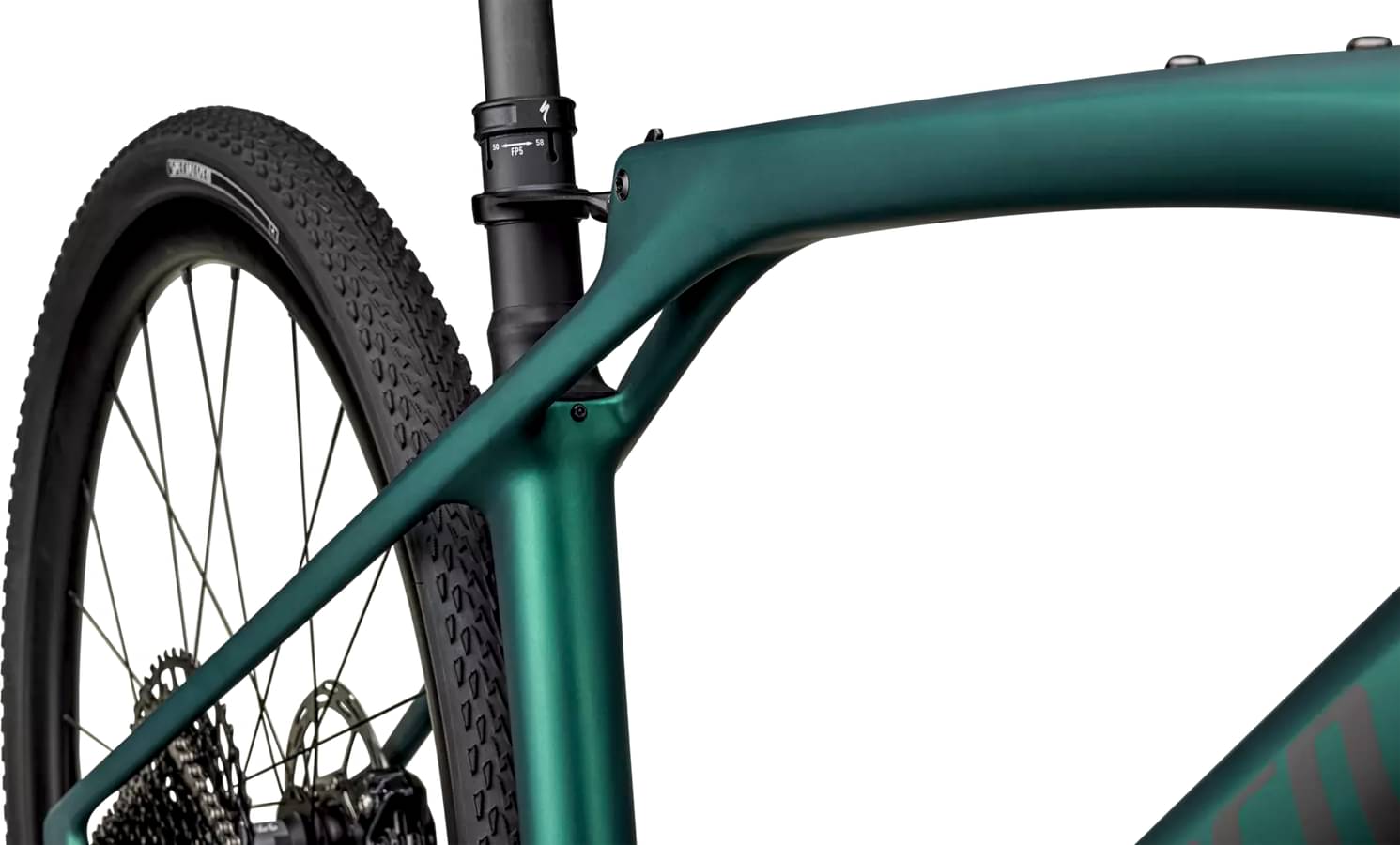

Diverge FACT 11r carbon frameset with front and rear Future Shock suspension, SWAT™ Door integration, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Suspension Fork
Future Shock 3.2 w/ Damper, Smooth Boot, FACT carbon, 12x100 mm thru-axle, flat-mount
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS, w/ battery cover
Shift Levers
SRAM Rival eTap AXS
Cassette
SRAM NX Eagle PG-1230, 12-speed, 11-50t
Crank
SRAM Rival 1 Wide, 40t
Bottom Bracket
SRAM DUB BSA 68
Chain
SRAM GX Eagle, 12-speed
Wheels
Rims
Front: Roval Terra C, 25mm inner width carbon rim, 32mm depth, NEW DT 370 hub, 24h, DT Swiss Comp Race spokes, Rear: Roval Terra C, 25mm inner width carbon rim, 32mm depth, NEW DT 370 Star Ratchet hub, 24h, DT Swiss Comp Race spokes
Tires
Front: Tracer Pro 2BR, 700x42, Rear: Tracer Pro 2BR, 700x42
Brakes
Brakes
Front: SRAM Rival eTAP AXS, hydraulic disc, Rear: SRAM Rival eTAP AXS, hydraulic disc

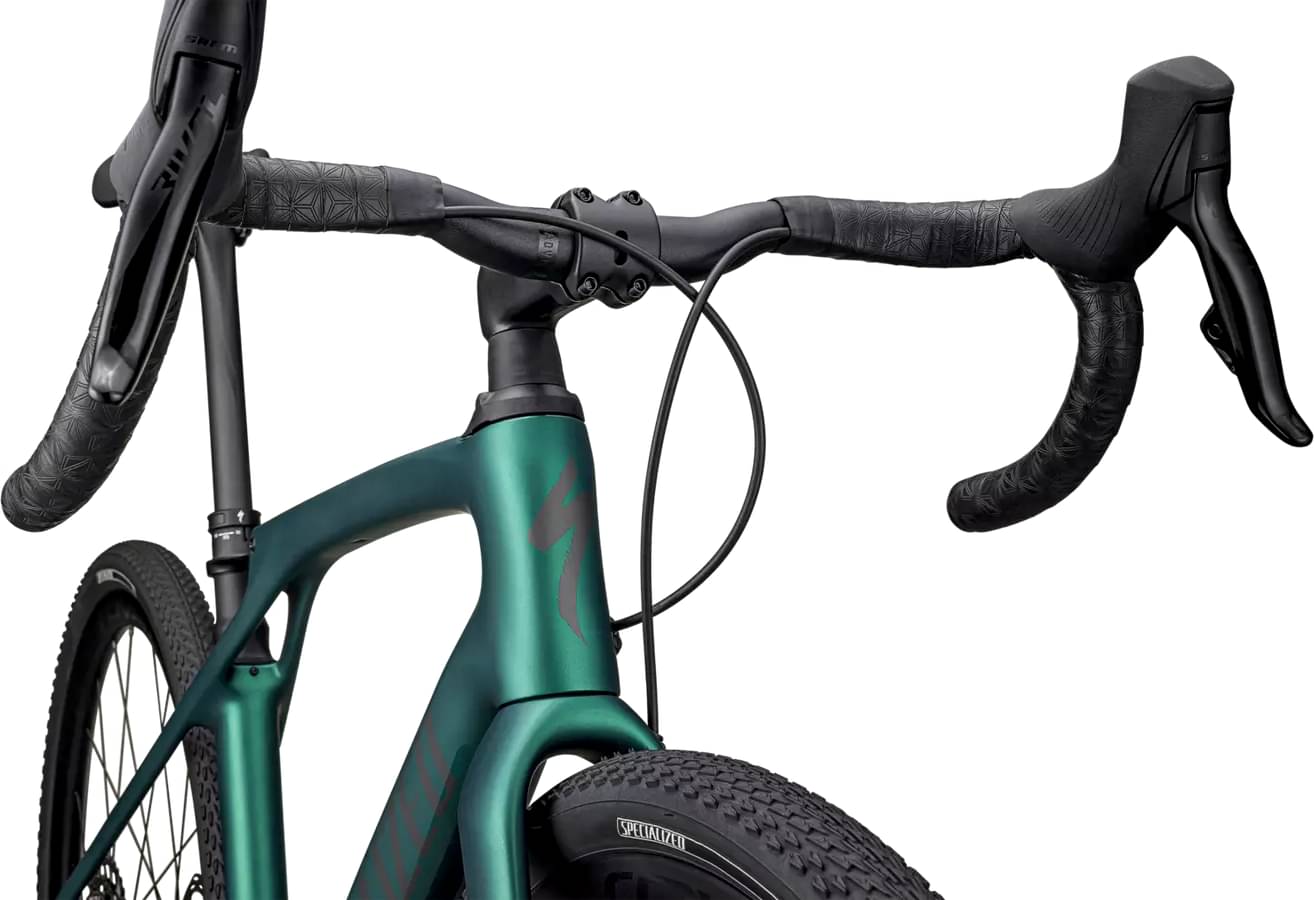

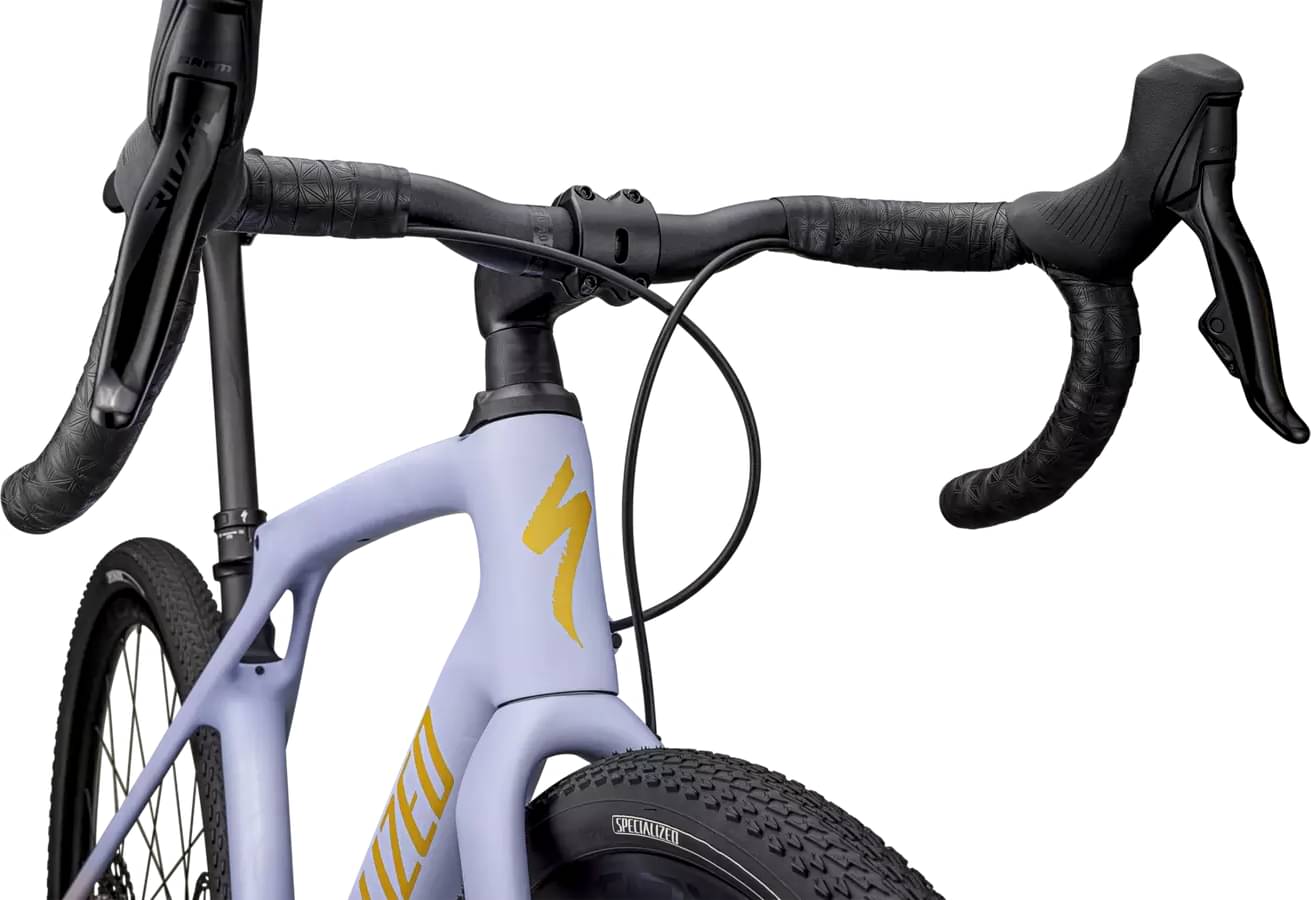

Cockpit
Stem
Future Stem, Comp
Handlebar
Specialized Adventure Gear Hover, 103mm drop x 70mm reach x 12º flare

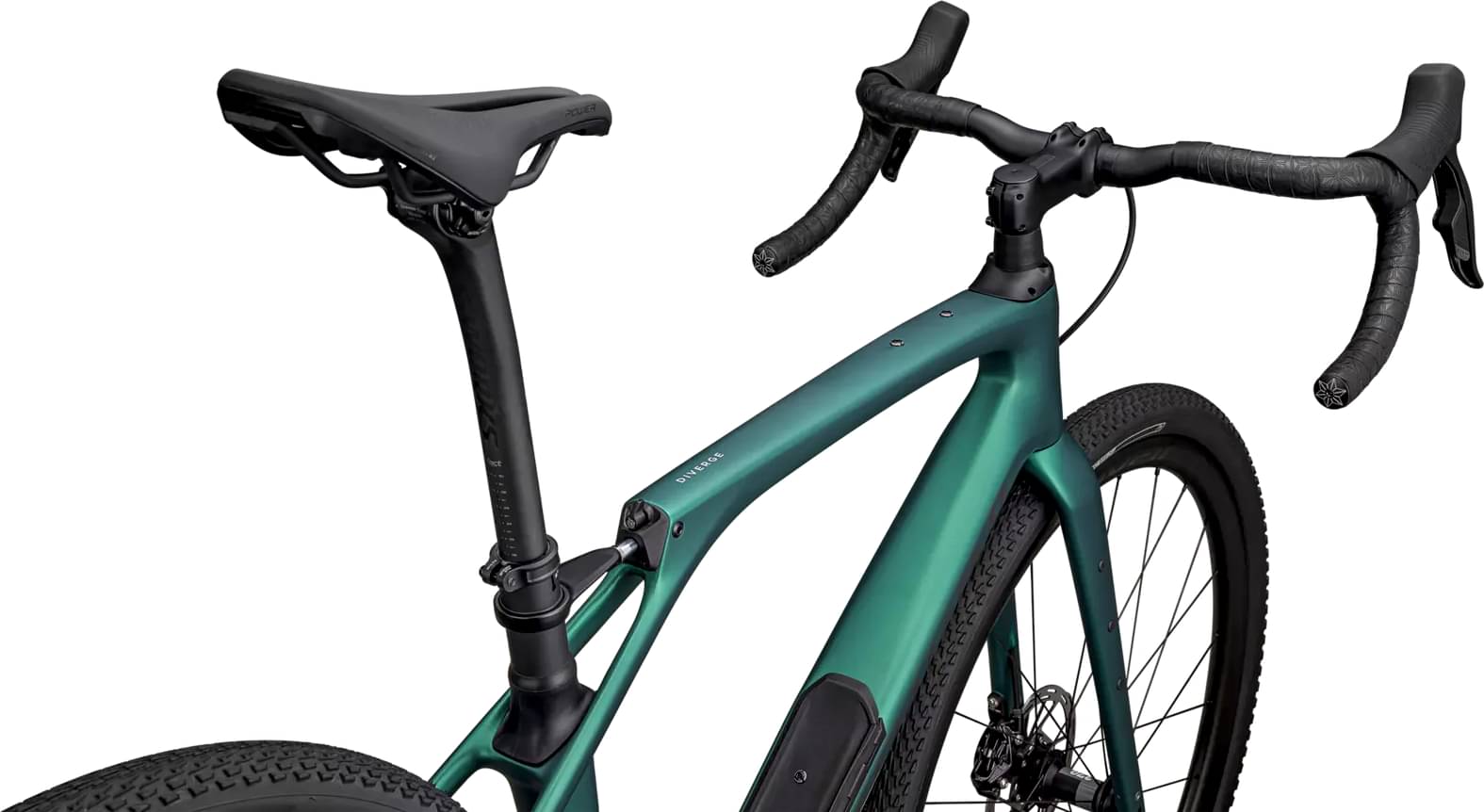

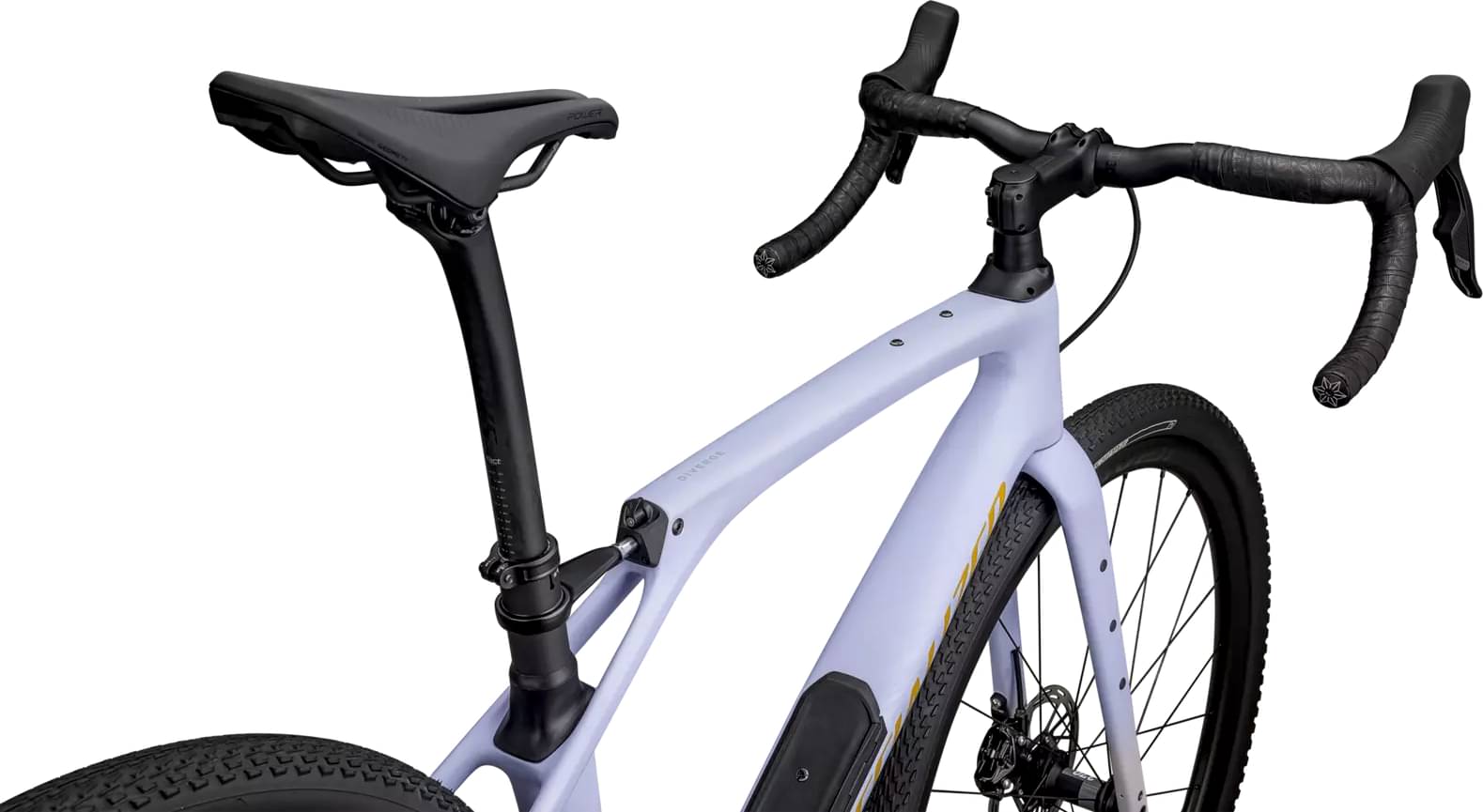

Seat
Saddle
Body Geometry Power Expert
Seatpost
S-Works Carbon Seat Post, 20mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.559 mm | 1.54 mm | 1.548 mm | 1.554 mm | 1.579 mm | 1.607 mm |
| Bottom Bracket Height | 270 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 607 mm | 612 mm | 619 mm | 629 mm | 645 mm | 663 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 69 mm | 66 mm | 61 mm | 57 mm | 57 mm | 57 mm |
| Stack | 569 mm | 576 mm | 593 mm | 609 mm | 633 mm | 659 mm |
| Reach | 365 mm | 374 mm | 383 mm | 392 mm | 401 mm | 410 mm |
| Top Tube Length | 527 mm | 540 mm | 556 mm | 570 mm | 586 mm | 602 mm |
| Seat Tube Angle | 74.5 ° | 74.25 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.25 ° | 71.75 ° | 71.75 ° | 71.75 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 130 mm | 155 mm | 182 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1023 mm | 1027 mm | 1034 mm | 1044 mm | 1060 mm | 1078 mm |
| Bottom Bracket Drop | 80 mm | 85 mm | 85 mm | 85 mm | 85 mm | 85 mm |
| Standover Height | 704 mm | 730 mm | 753 mm | 778 mm | 804 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 169 cm | 175 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 171 cm | 178 cm | 181 cm | 189 cm | 196 cm |
Model Overview
Diverge STR Expert is part of the Specialized Diverge Str model. Specialized released 13 bikes variations of this model so far. Take a sneak peek at all Specialized Diverge Str bikes models from 2024, by clicking here.
Model range prices
Specialized Diverge STR Comp 2024 is the cheapest bike model and costs 5295$. Specialized S-Works Diverge STR 2024 is the most expensive one and costs 14825$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel bikes average price
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Specialized Diverge STR Expert price was 7412$. In conclusion, this bike price is 201.06% more expensive than the price of the average Gravel bike.
Average weight for Gravel bikes
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Diverge STR Expert weighs 9.93 kg (21.89 lbs) and is much heavier than the average. To sum up, it’s 22.14% heavier than the average weight of Gravel bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Diverge STR Expert components
Fork
The Diverge STR Expert comes factory-installed with the Specialized Future Shock fork. This has a travel range of 20mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Rear Shock
Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Diverge STR Expert are the 700c carbon type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Diverge STR Expert has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 155 cm – 196 cm (5.09 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
