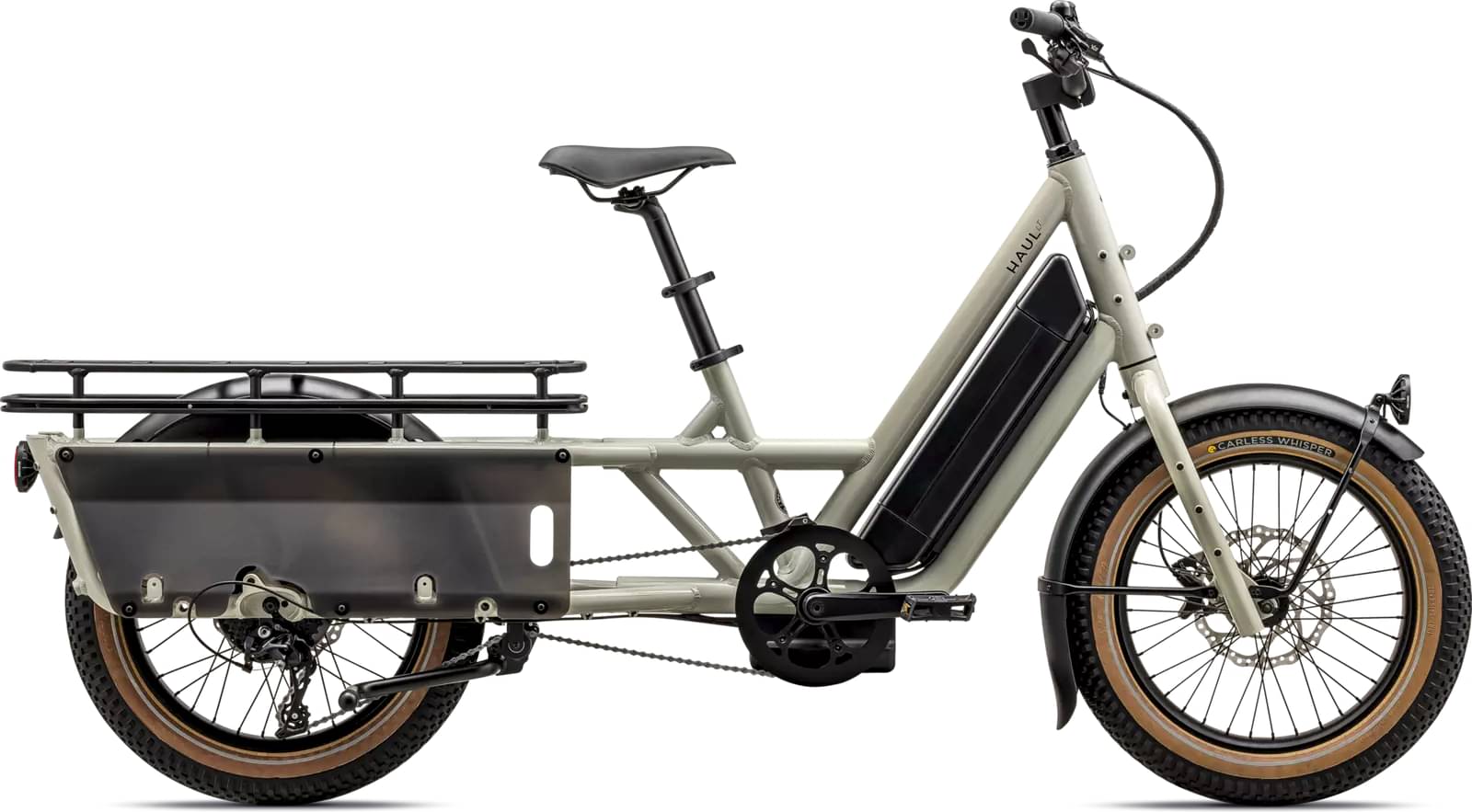

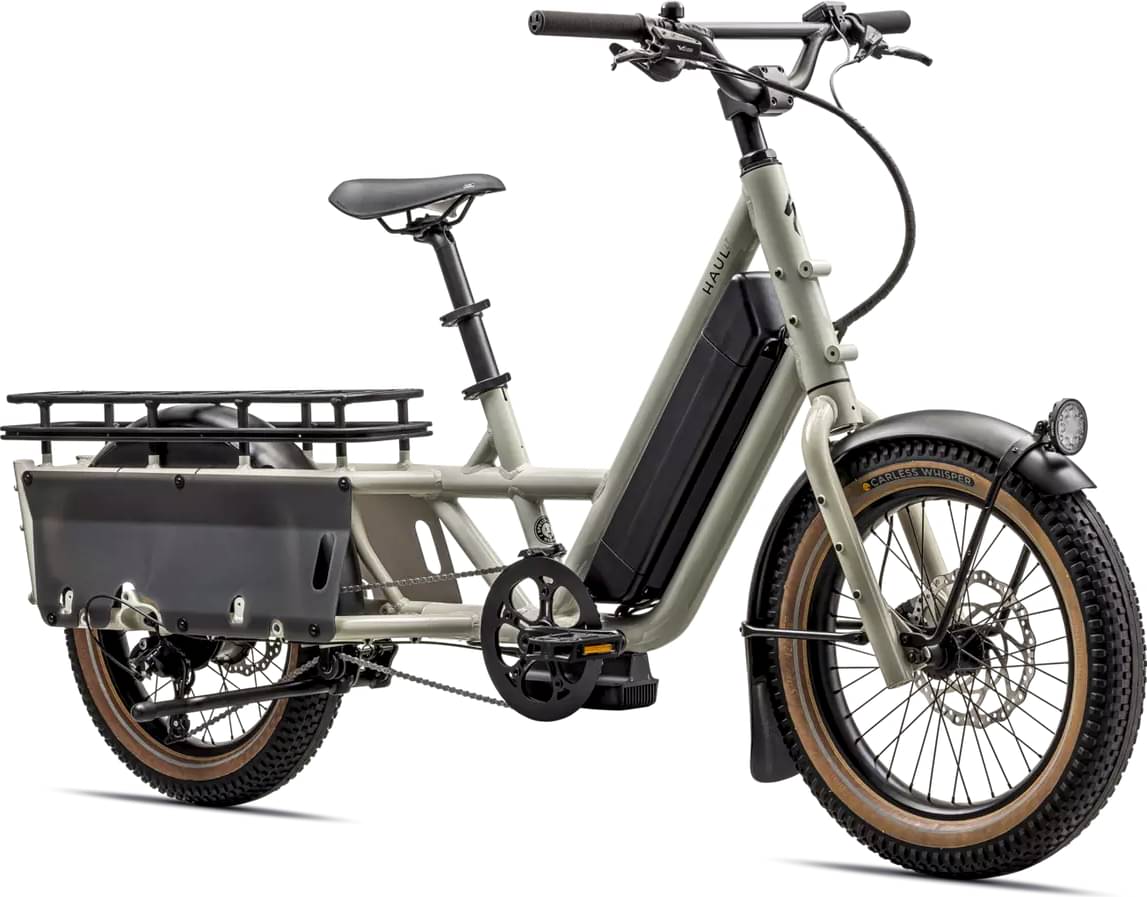

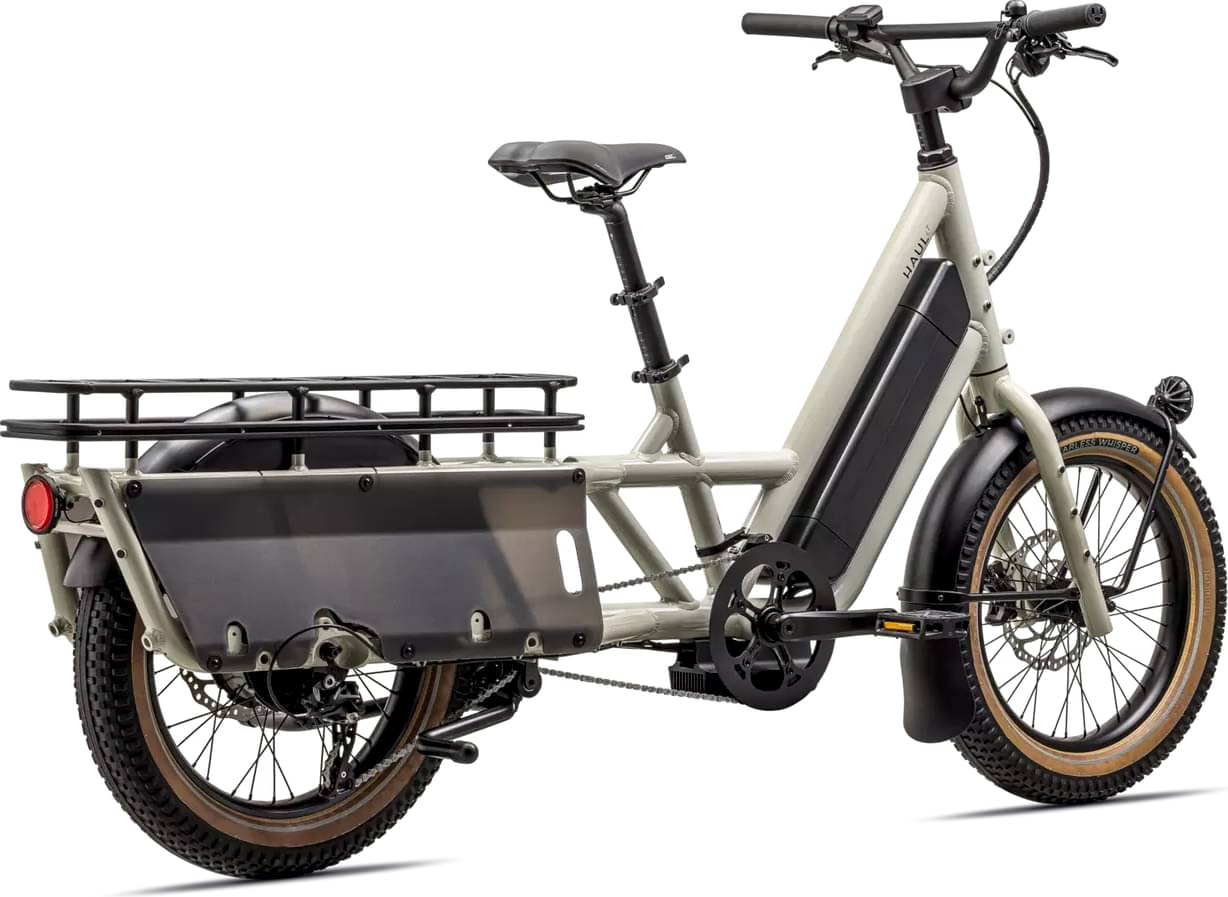

Specialized Haul LT 2023
2023 E-bike
Estimate price |
3,500$
Weight | 40 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 20" -
Groupset microSHIFT, microSHIFT Advent -
Suspension Rigid -
Motor mid-drive -
Battery Globe external battery, 772Wh, UL 2271 certified, IPX7 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Haul LT Premium Aluminum, Post mount disc brake, fender/rack mounts
Suspension Fork
Globe Steel, Post mount disc brake, fender/rack mounts
Drivetrain
Rear Derailleur
microSHIFT, short cage, 9-speed
Shift Levers
microSHIFT Advent, 9-speed
Cassette
SunRace, 9-Speed, 11-36t
Crank
Forged alloy arm, alloy chainring guard, 160mm, 50T
Bottom Bracket
Square-tapered, 100mm BB width, 184mm spindle, w/ torque sensor
Chain
KMC e9S EPT, anti-rust coating, 9-speed w/ reusable Missing Link™
Pedals
Specialized Body Geometry Fitness, platform, plastic
Wheels
Front Hub
Alloy, 6-bolt disc, 110mm spacing, loose ball bearings, bolt on, 36h
Rims
20'', double-wall alloy, 50X20mm, 36h
Spokes
Stainless, 13g front, 13g-12g butted rear
Tires
Front: Globe Reflect, Tan Sidewall, 20x3.5, Rear: Globe Reflect, Tan Sidewall, 20x3.5
Brakes
Brakes
Front: Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor, E-Bike rated, Rear: Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor, E-Bike rated

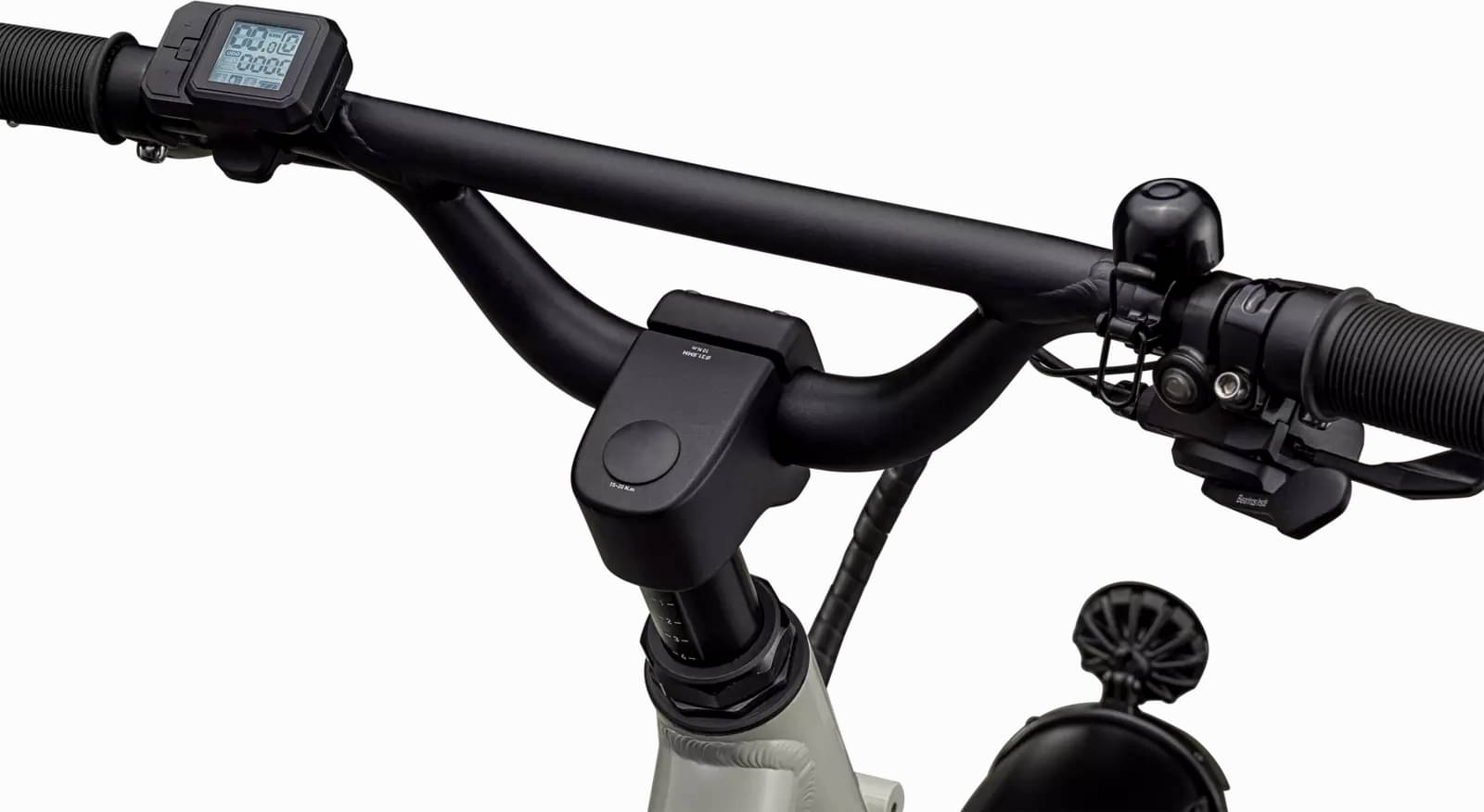

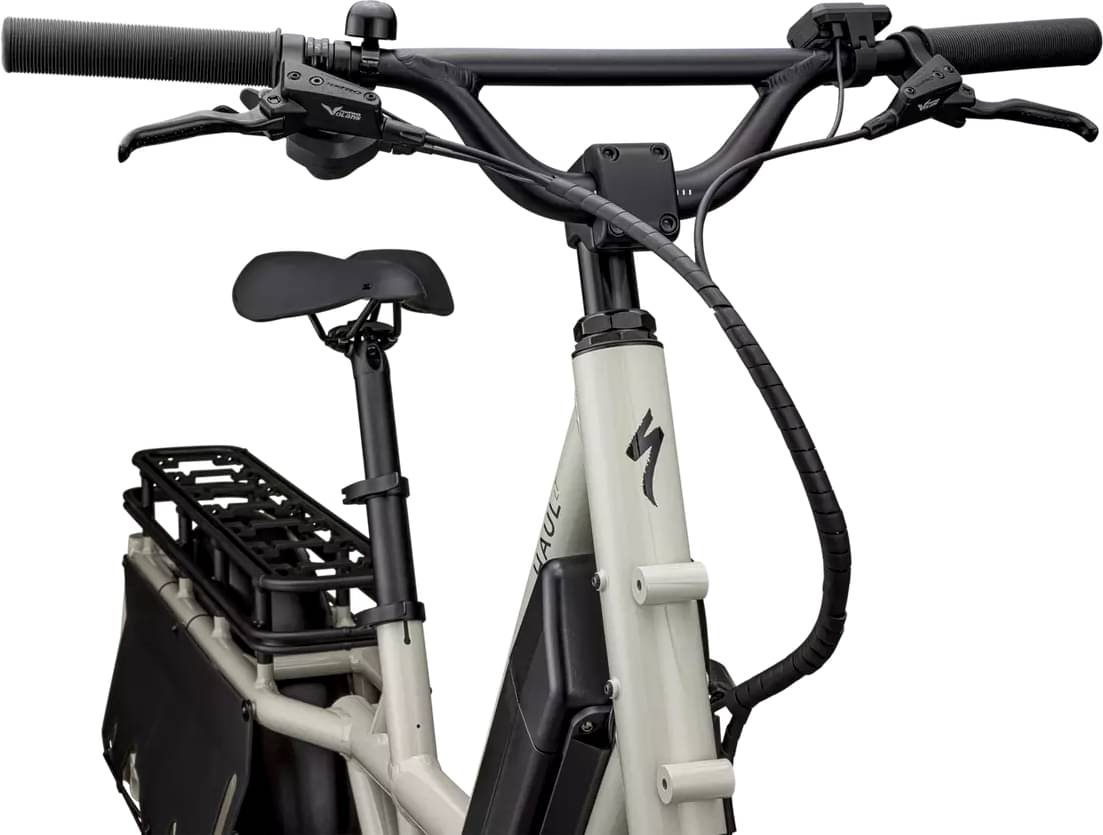

Cockpit
Stem
Globe, cargo 35X150mm quill stem
Handlebar
Globe, cargo, alloy, 12-degree backsweep, 80mm rise, 31.8mm. 700mm width
Grips
Globe closed end slip on type, 155mm
Seat
Saddle
Specialized Body Geometry Comfort Gel
Seatpost
Telescoping, alloy, 2-bolt Clamp, 20mm offset, 34.9mm, 525mm
Motor & Battery
Motor
Globe custom tuned motor, alloy, 6-bolt disc, 9 speed freehub, bolt on, 36h
Battery
Globe external battery, 772Wh, UL 2271 certified, IPX7
Charger
Globe charger, 48V System w/ Globe system charger plug, AC power cord included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | HAUL LT |
|---|---|
| Stack Reach Ratio | 1.768 mm |
| Bottom Bracket Height | 285 mm |
| Front Center | 624 mm |
| Rake | 55 mm |
| Trail | 47 mm |
| Stack | 610 mm |
| Reach | 345 mm |
| Top Tube Length | 600 mm |
| Seat Tube Angle | 68 ° |
| Seat Tube Length | 366 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 292 mm |
| Chainstay Length | 732 mm |
| Wheelbase | 1356 mm |
| Bottom Bracket Drop | 5 mm |
| Standover Height | 511 mm |
| Wheels | 20" |
| Rider Min Height | 120 cm |
About this model
Haul LT belongs to the Specialized E Haul model. 4 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Specialized Haul ST 2023 is the cheapest e-bike model and costs 2800$. Specialized Haul LT 2023 is the most expensive one and costs 3500$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Long Tail Cargo e-bikes
Our math shows that the average cost of a dependable Long Tail Cargo e-bike is 3082$. However, even though the average price of a Long Tail Cargo e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Specialized released this model in 2023, its price was 3500$. If we compare this with the average Long Tail Cargo e-bike cost we notice that the price is 13.56% higher.
Long Tail Cargo e-bikes average weight
Long Tail Cargo e-bikes weigh an average of 29.08 kg (64.11 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, Haul LT has a weight of 40 kg (88.18 lbs). In short, the average Long Tail Cargo e-bike weight is 37.55% lower than this one.
Haul LT components
Fork material
When it comes to the fork, this e-bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When leaving the production line, the Haul LT model has 20″ aluminum wheels. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Haul LT comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
