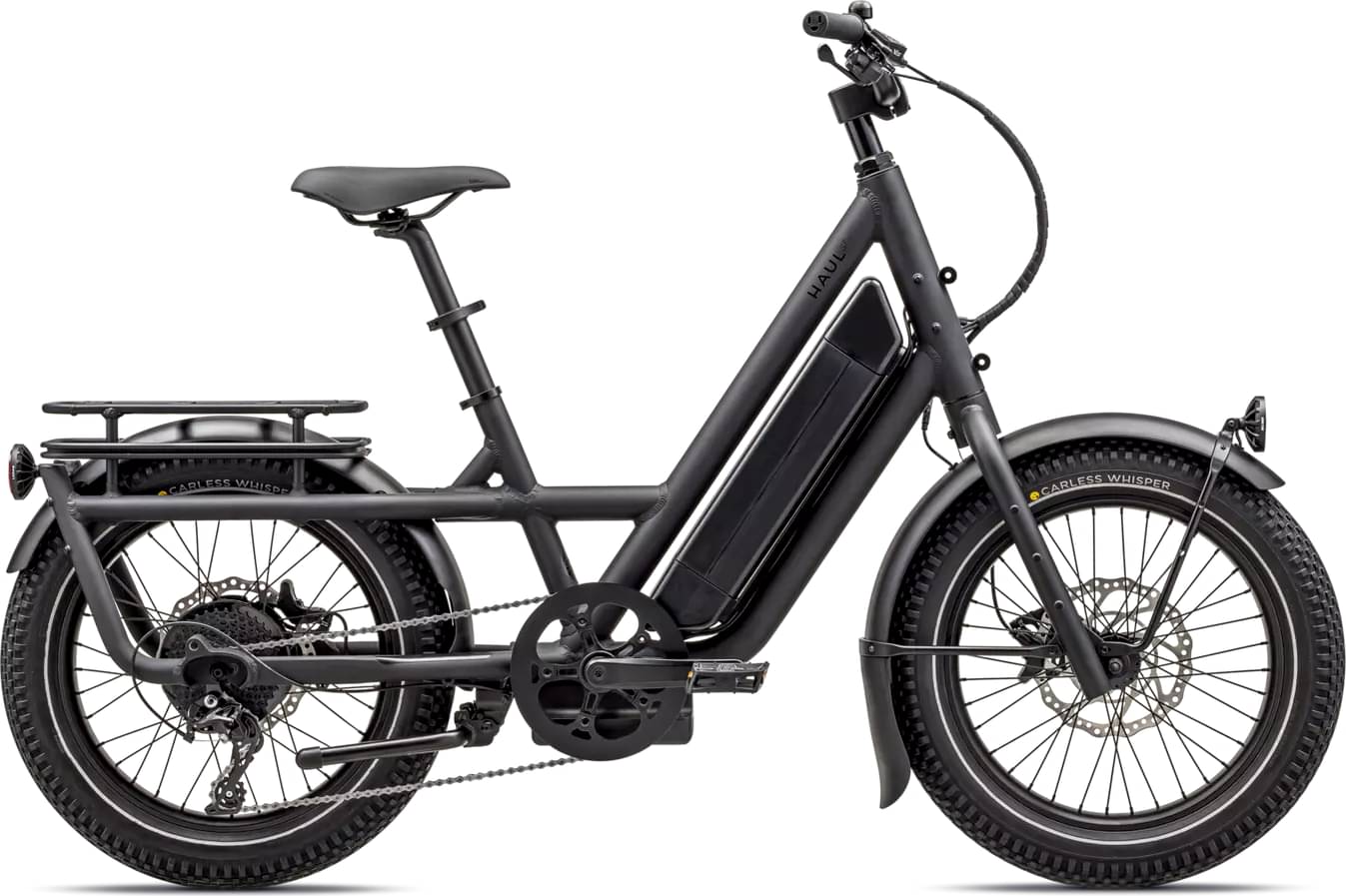

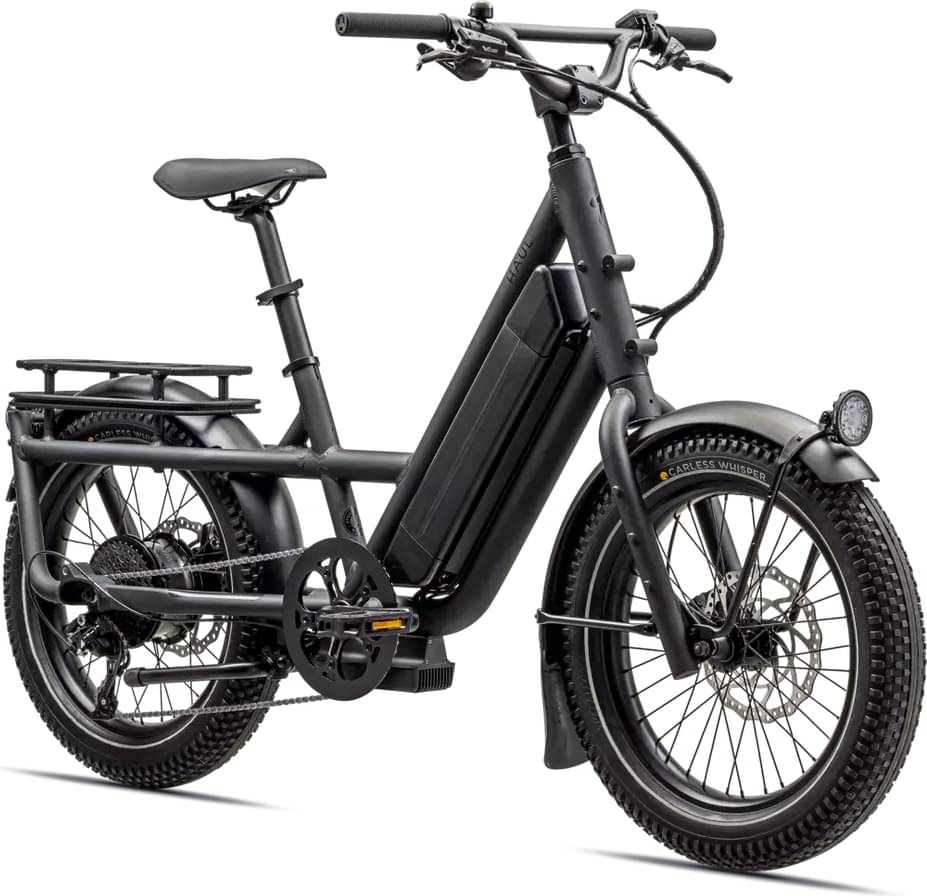

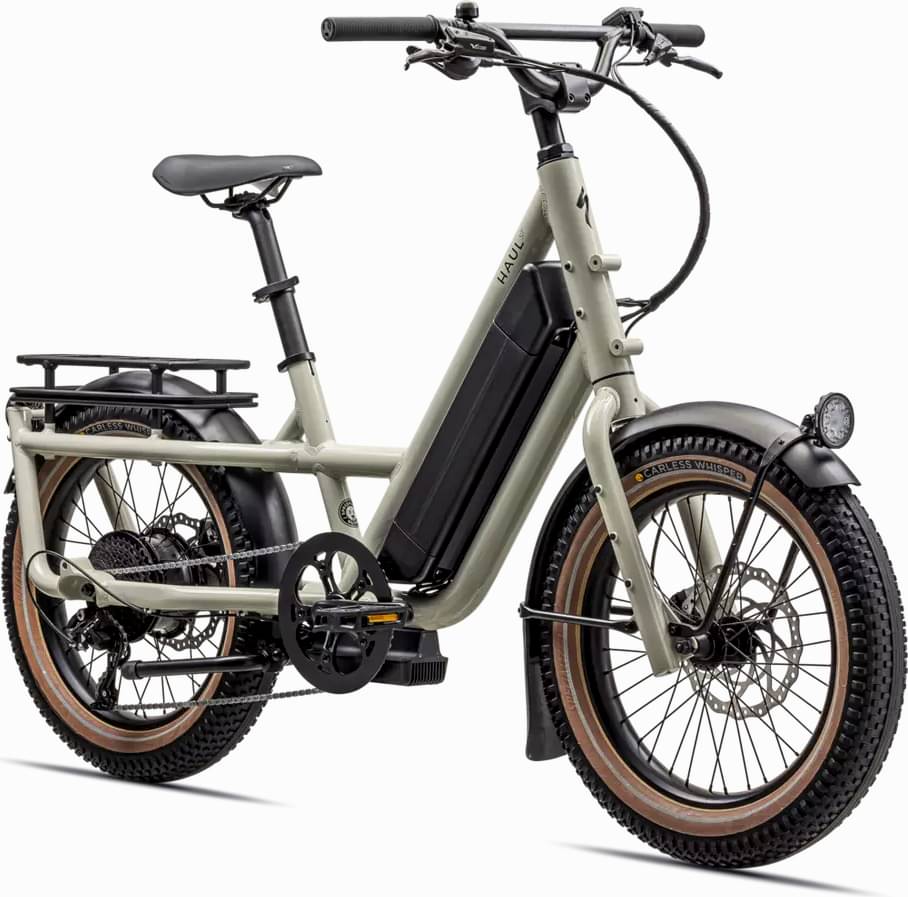

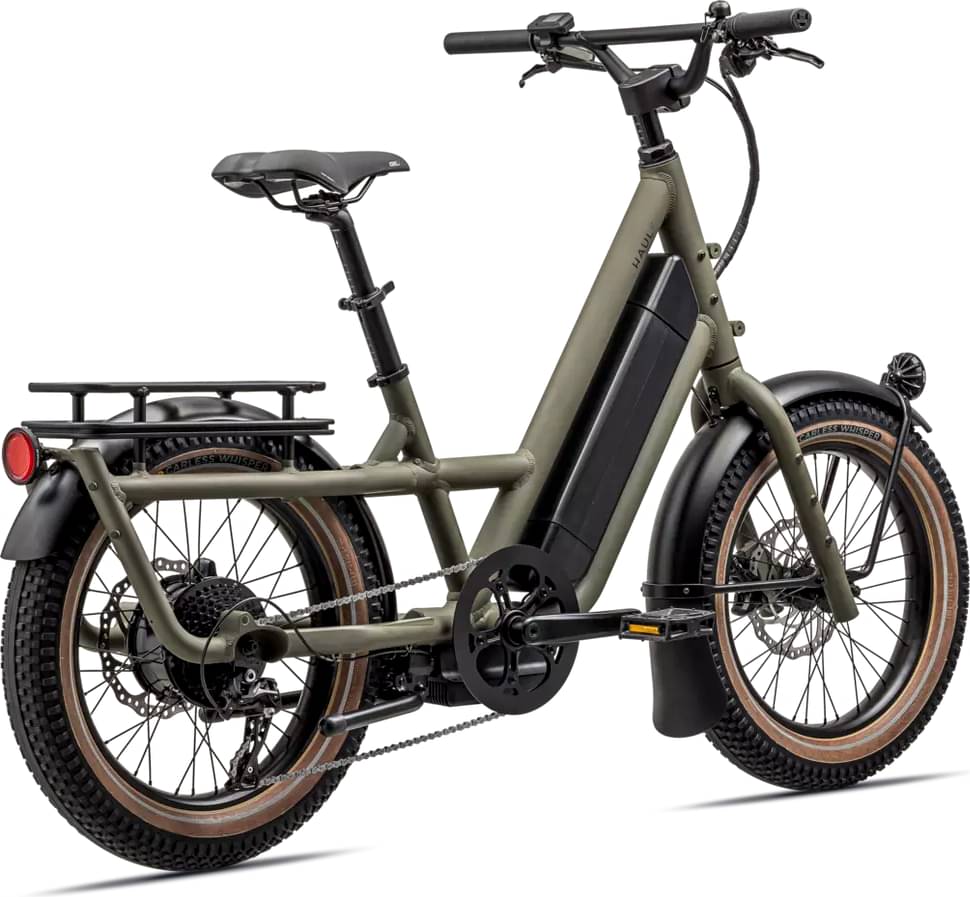

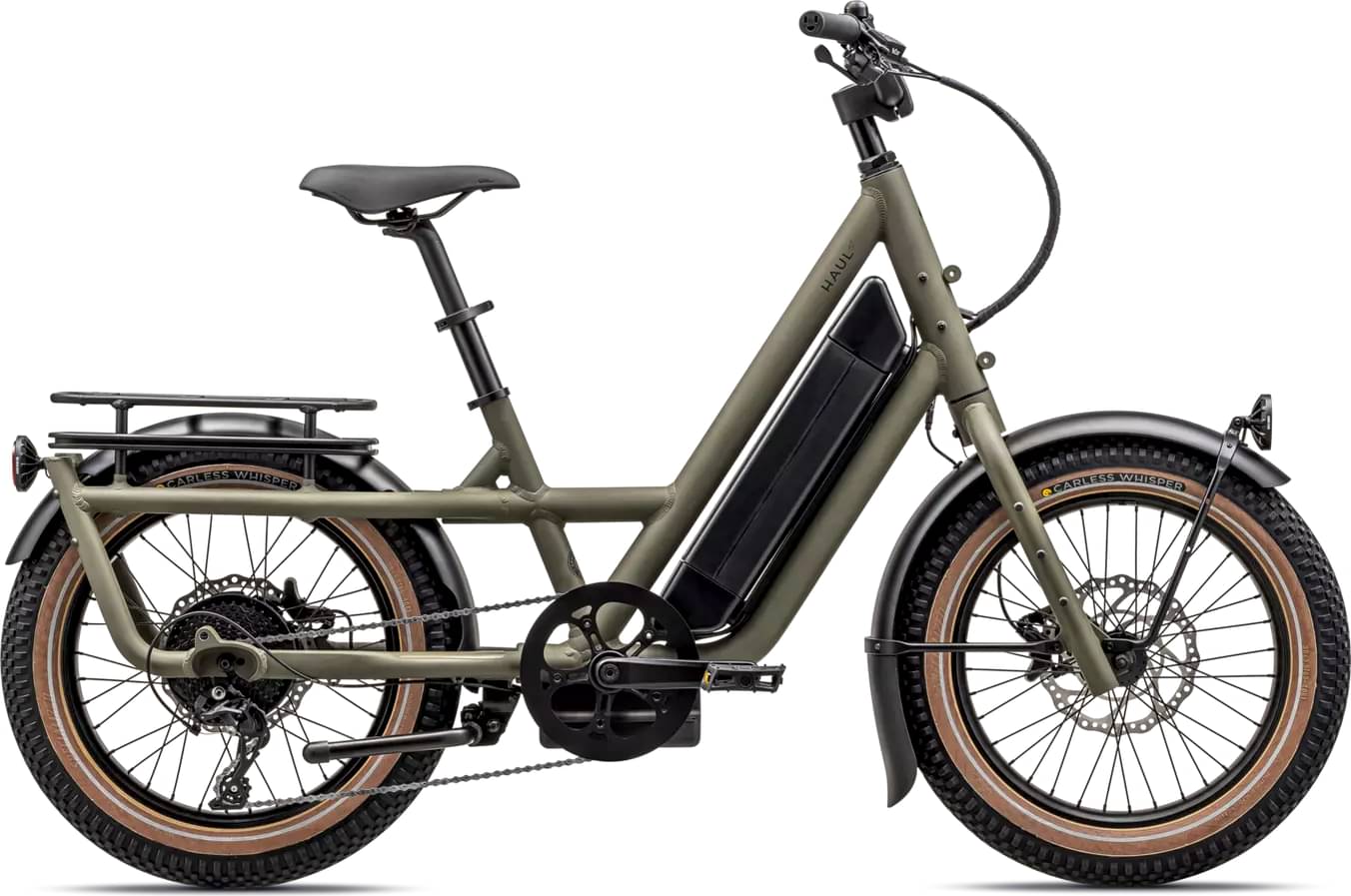

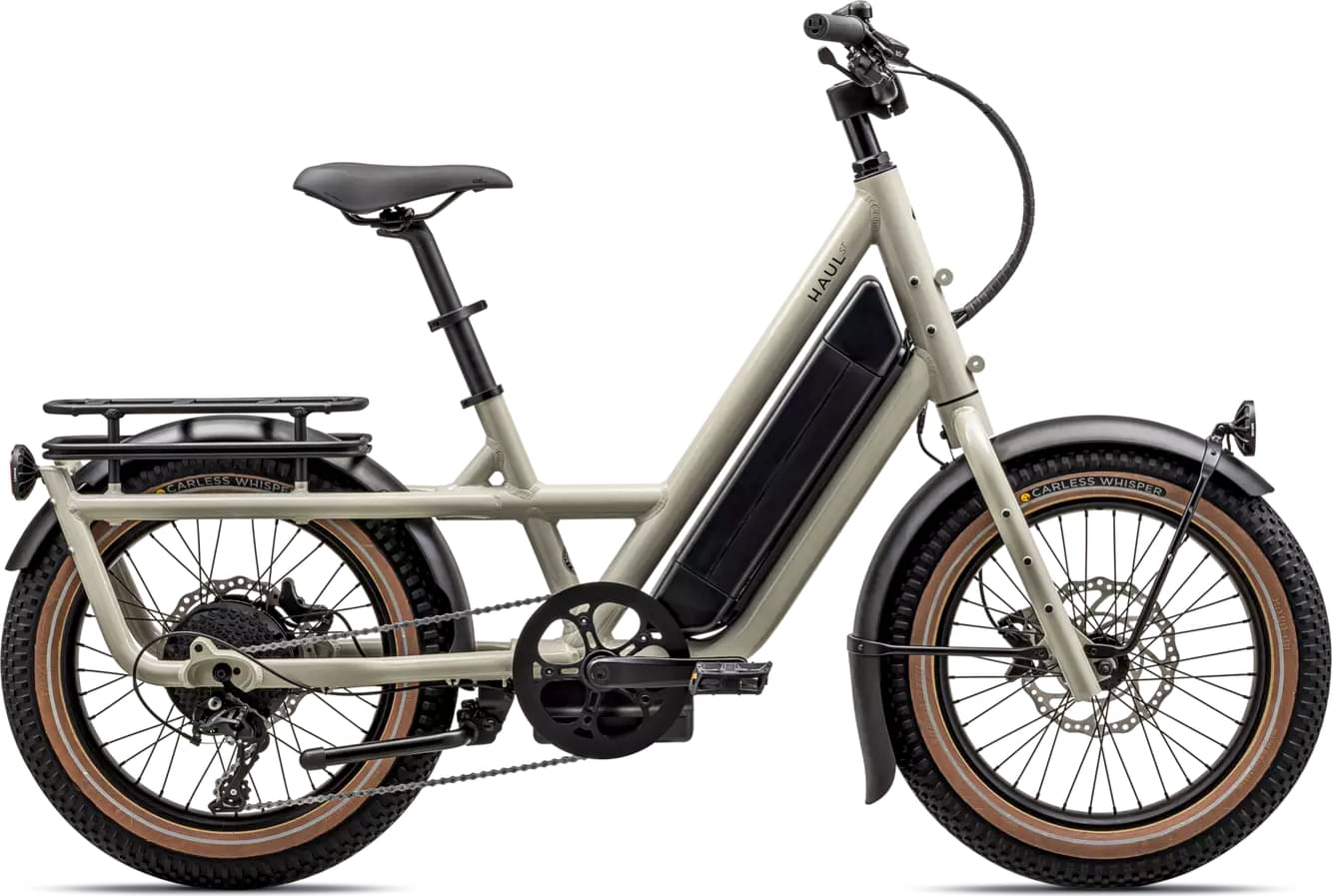

Specialized Haul ST 2023
2023 E-bike
Estimate price |
2,800$
Weight | 35 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Groupset microSHIFT, microSHIFT Advent -
Suspension Rigid -
Motor hub-drive -
Battery Globe external battery, 772Wh, UL 2271 certified, IPX7 -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

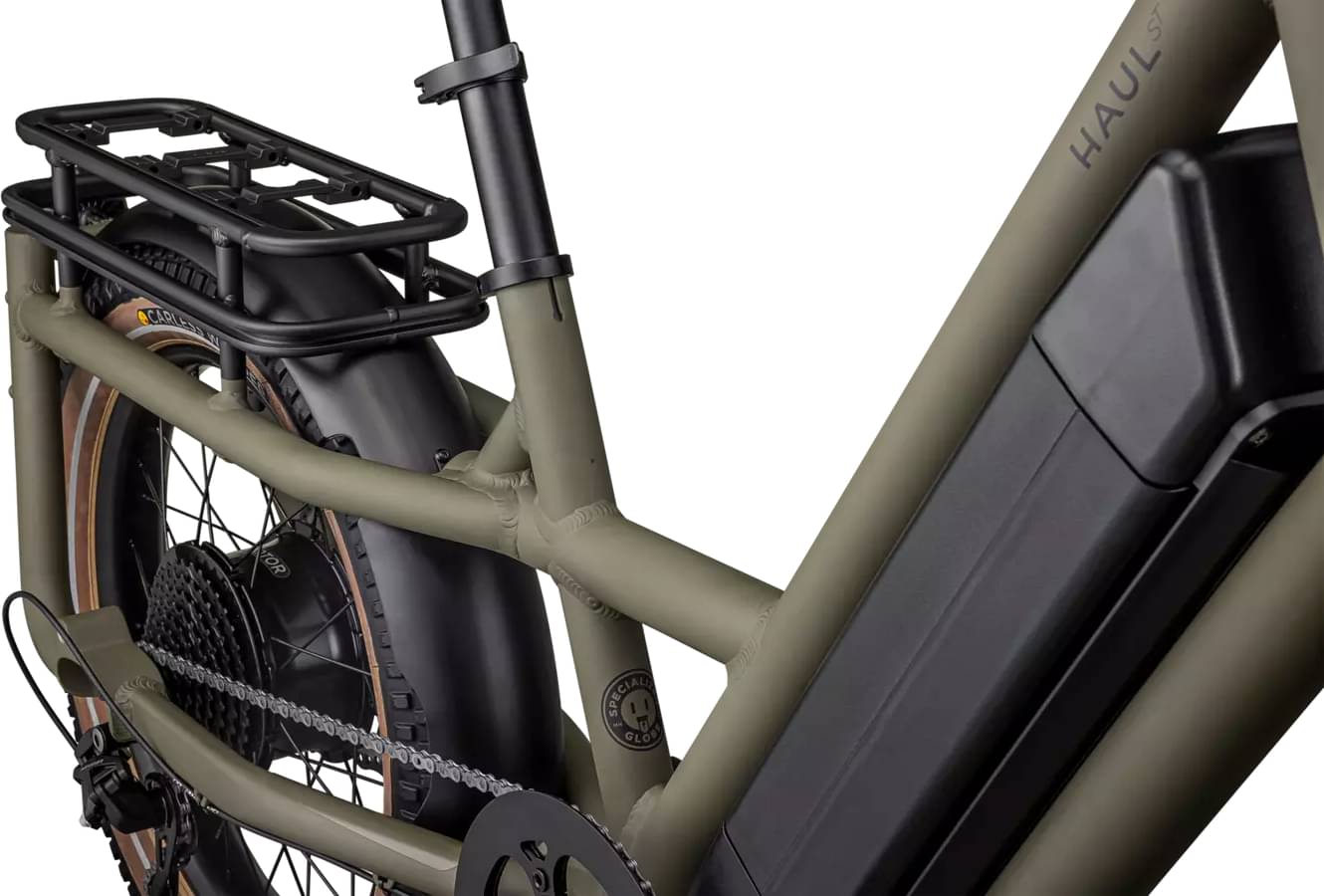

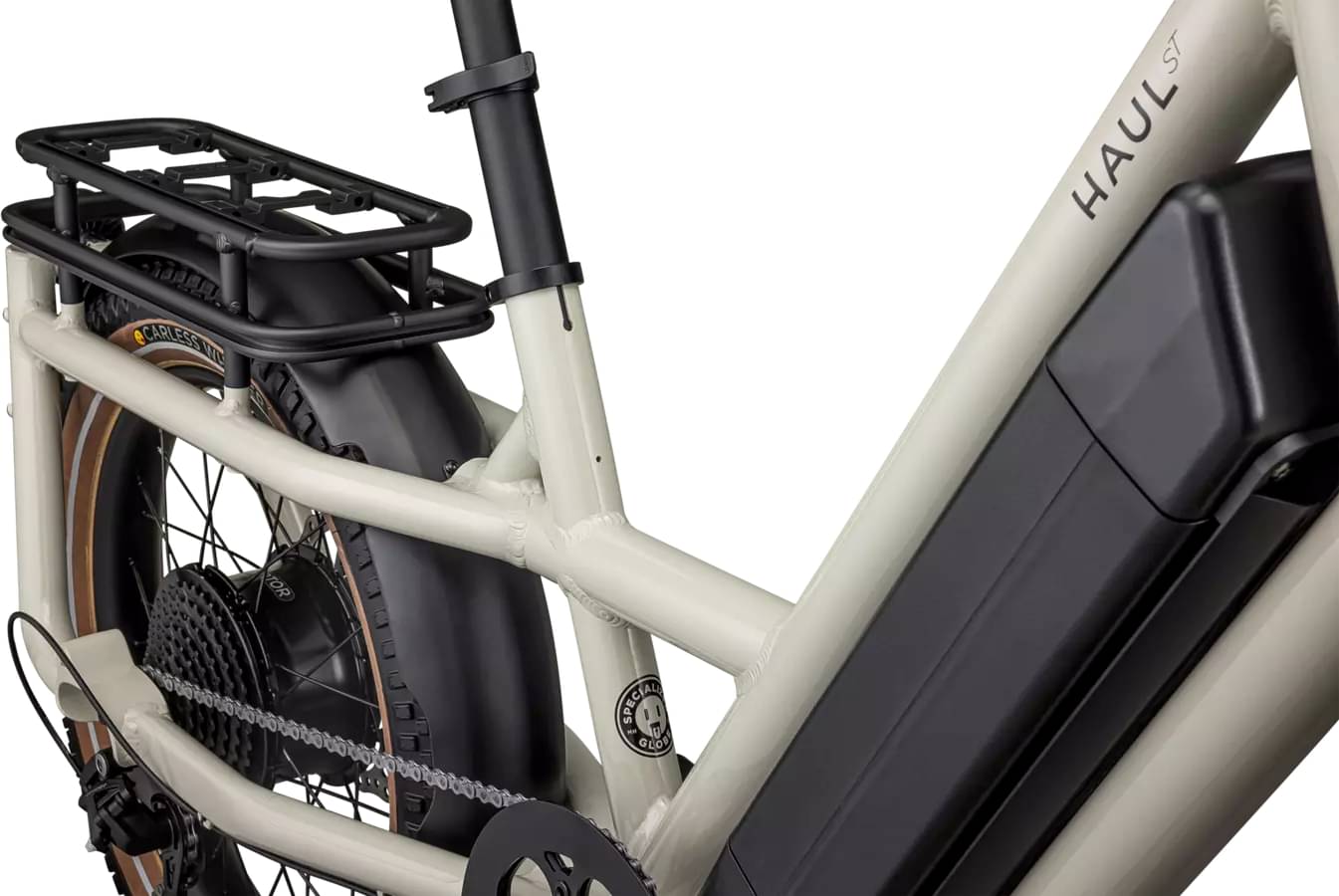

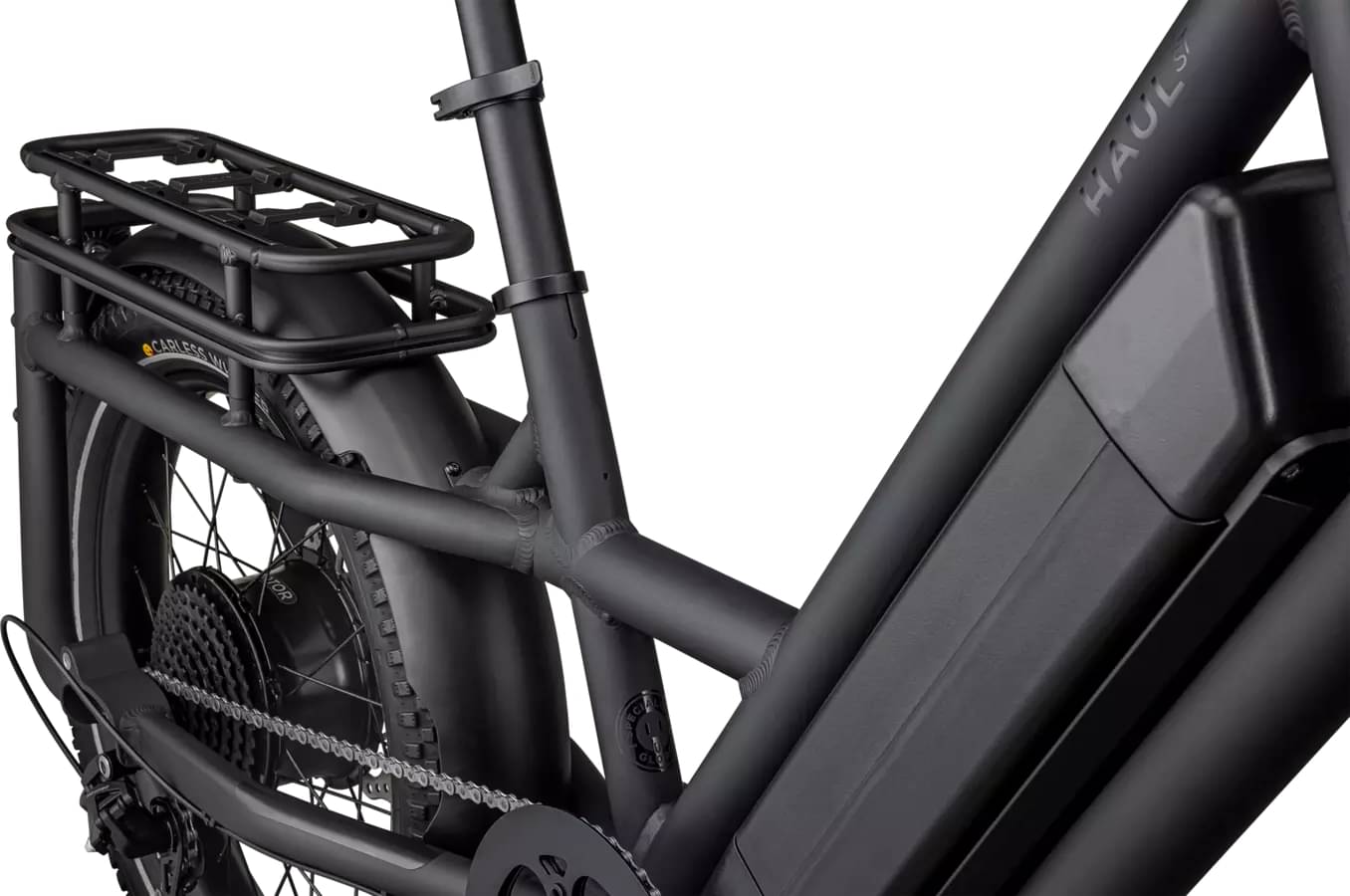

Haul ST Premium Aluminum, Post mount disc brake, fender/rack mounts
Suspension Fork
Globe Steel, Post mount disc brake, fender/rack mounts
Drivetrain
Rear Derailleur
microSHIFT, short cage, 9-speed
Shift Levers
microSHIFT Advent, 9-speed
Cassette
SunRace, 9-Speed, 11-36t
Crank
Forged alloy arm, alloy chainring guard, 160mm, 50T
Bottom Bracket
Square-tapered, 100mm BB width, 184mm spindle, w/ torque sensor
Chain
KMC e9S EPT, anti-rust coating, 9-speed w/ reusable Missing Link™
Pedals
Specialized Flat pedal
Wheels
Front Hub
Alloy, 6-bolt disc, 110mm spacing, loose ball bearings, bolt on, 36h
Rims
20'', double-wall alloy, 50X20mm, 36h
Spokes
Stainless, 13g/2.3mm
Tires
Front: Carless Whisper Reflect, 20X3.5, Rear: Carless Whisper Reflect, 20X3.5
Brakes
Brakes
Front: Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor, Rear: Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor

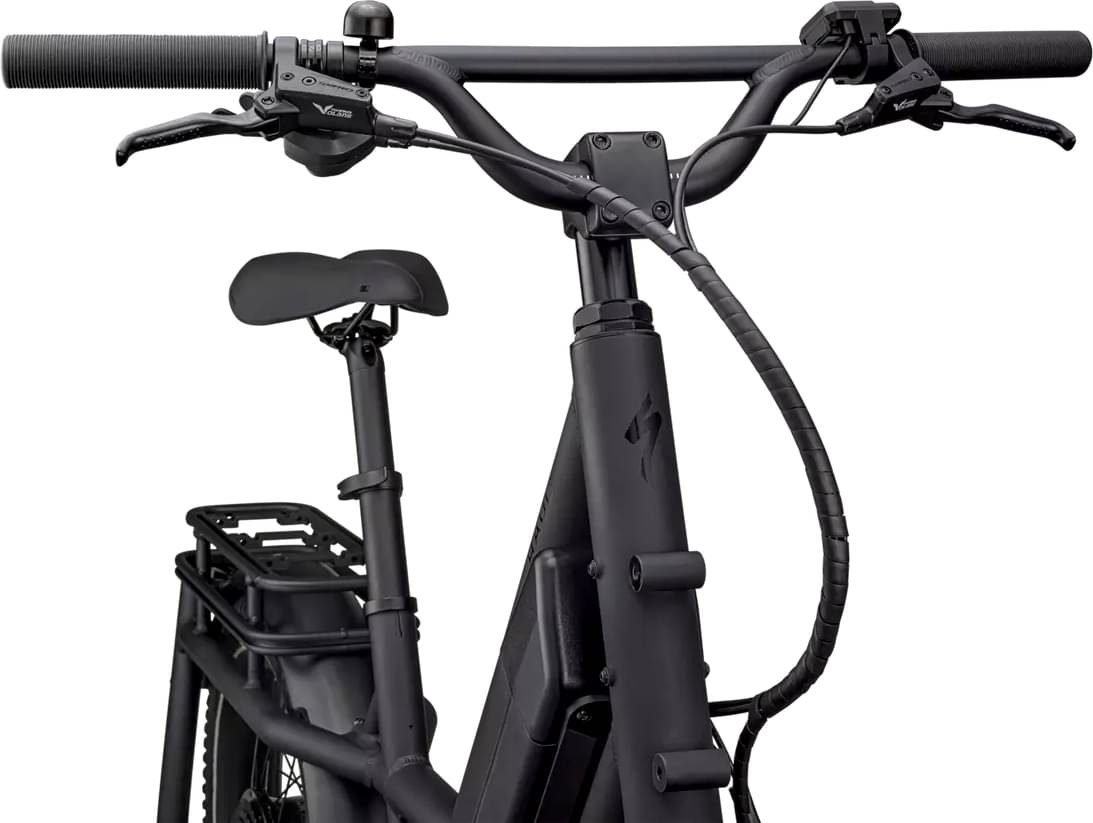

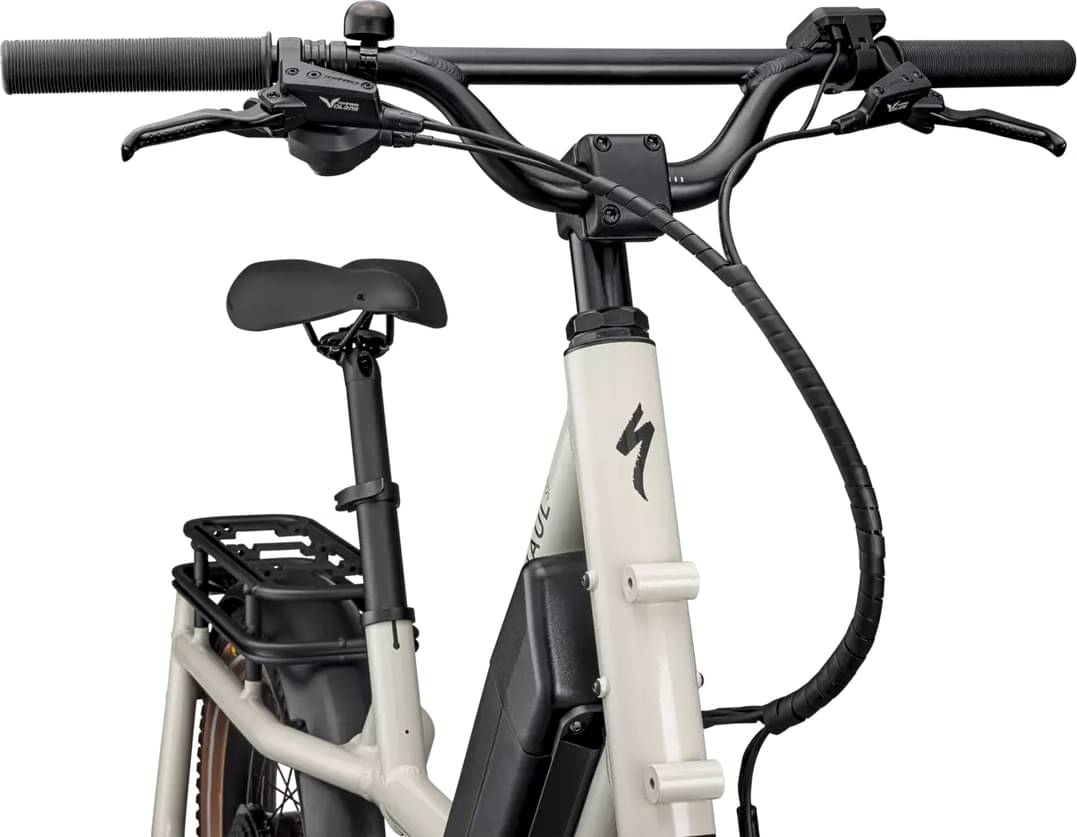

Cockpit
Stem
Globe, cargo 1.5X150mm quill stem

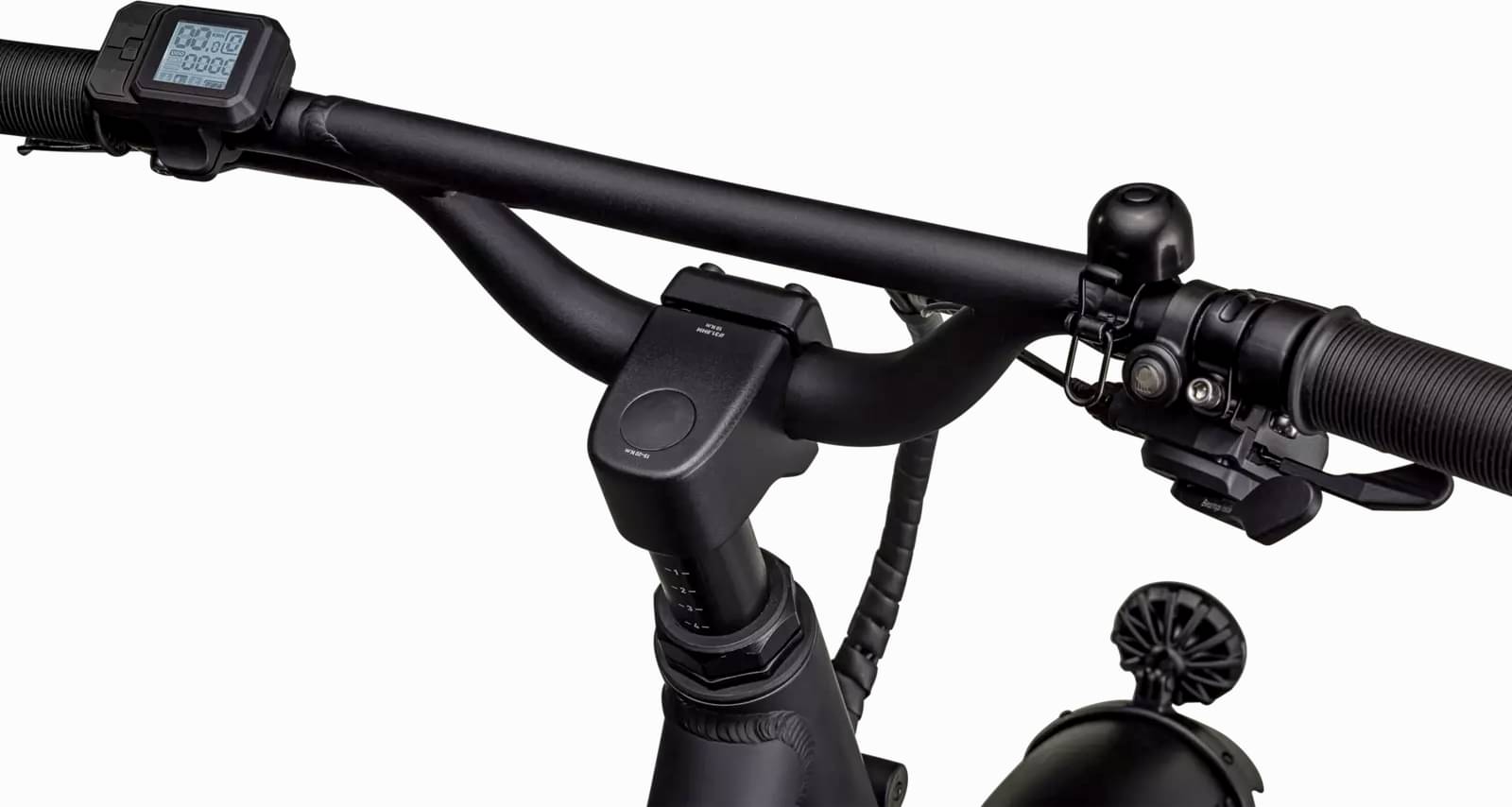

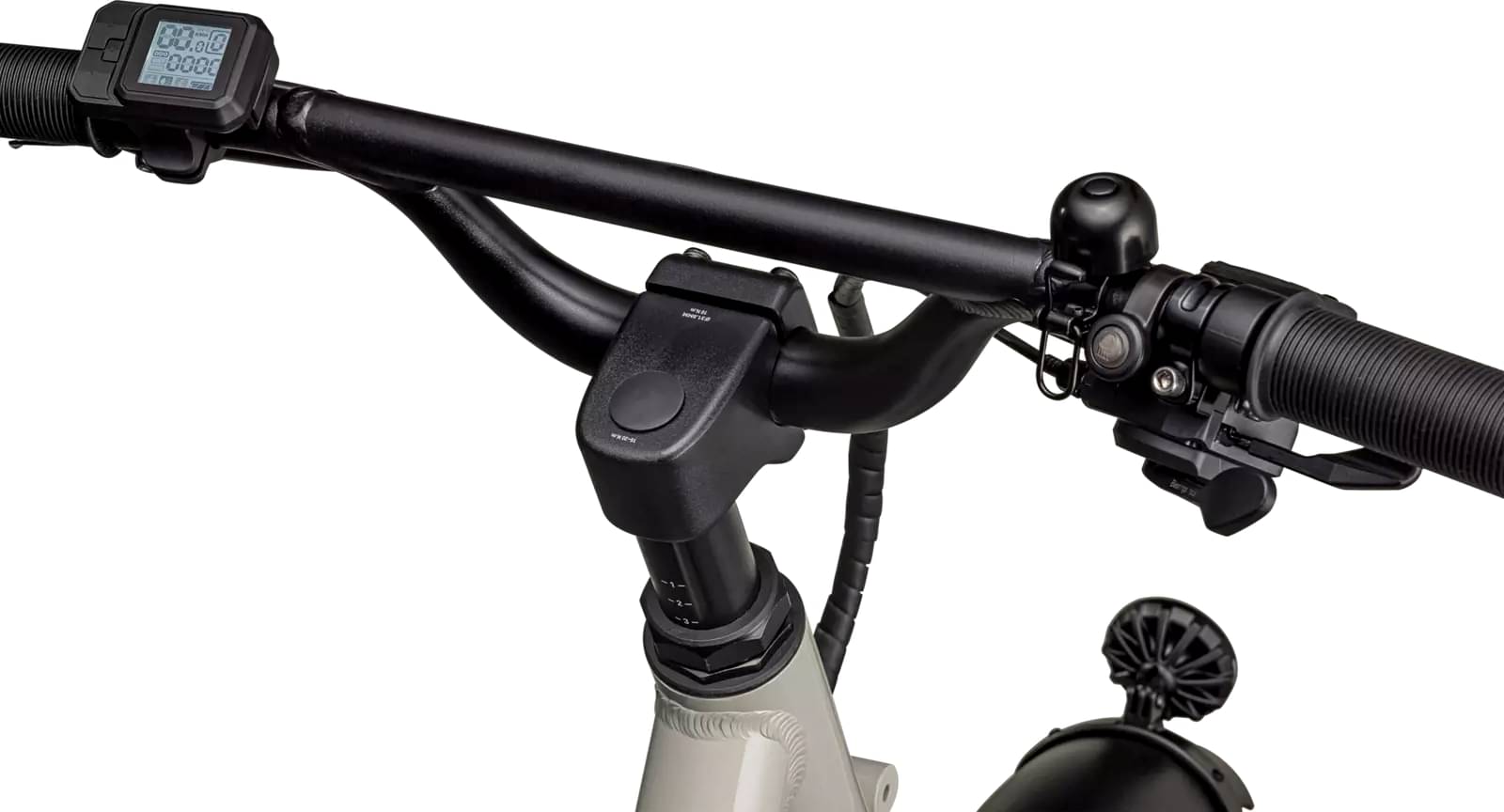

Handlebar
Globe, cargo, alloy, 12-degree backsweep, 80mm rise, 31.8mm. 700mm width
Grips
Globe closed end slip on type, 155mm
Seat
Saddle
Specialized Body Geometry Comfort Gel
Seatpost
Telescoping, alloy, 2-bolt Clamp, 20mm offset, 34.9mm, 525mm
Motor & Battery
Motor
Globe custom tuned motor, alloy, 6-bolt disc, 9 speed freehub, bolt on, 36h
Battery
Globe external battery, 772Wh, UL 2271 certified, IPX7
Charger
Globe charger, 48V System w/ Globe system charger plug, AC power cord included
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | HAUL ST |
|---|---|
| Stack Reach Ratio | 1.768 mm |
| Bottom Bracket Height | 285 mm |
| Front Center | 624 mm |
| Rake | 55 mm |
| Trail | 47 mm |
| Stack | 610 mm |
| Reach | 345 mm |
| Top Tube Length | 600 mm |
| Seat Tube Angle | 68 ° |
| Seat Tube Length | 366 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 292 mm |
| Chainstay Length | 465 mm |
| Wheelbase | 1089 mm |
| Bottom Bracket Drop | 5 mm |
| Standover Height | 511 mm |
| Wheels | 20" |
| Rider Min Height | 120 cm |
Model Overview
Haul ST completes the Specialized E Haul model. 4 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Specialized Haul ST 2023 is the most economical model, with a starting price of 2800$. Specialized Haul LT 2023 on the other hand costs 3500$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Utility e-bikes average price
According to our math, the average price for a trustworthy Utility e-bike is 3636$. However, even though the average price of an Utility e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2800$. If we compare this with the average Utility e-bike cost we notice that the price is 29.86% smaller.
Utility e-bikes average weight
Utility e-bikes weigh an average of 35.21 kg (77.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Specialized Haul ST it’s weighing 35 kg (77.16 lbs). At this weight, is slightly lighter than average. In conclusion, the average Utility e-bike weighs 0.6% more than Haul ST.
Overview of components
Fork material
Haul ST has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When leaving the production line, the Haul ST model has 20″ aluminum wheels. The 20″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Haul ST comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
