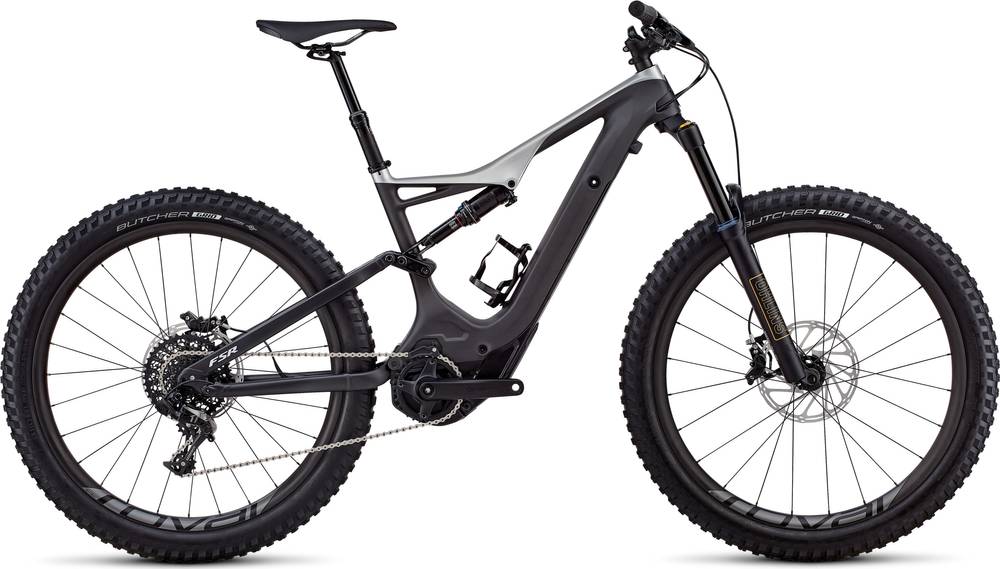

Specialized Men’s Turbo Levo FSR Expert Carbon 6Fattie/29 2018
2018 E-bike
Estimate price |
7,800$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 135mm -
Fork Öhlins
-
Groupset X01, X1 -
Suspension Full -
Motor Specialized 250W mid-drive -
Battery Specialized M1-504, integrated Trail Display, ANT+/Bluetooth® module, 504Wh, Mission Control App connectivity -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 9m carbon chassis / M5 Alloy rear triangle, 6Fattie/29 Trail Geometry, Integrated down tube battery, enclosed internal cable, Command Post IR routing, 148mm spacing, fully sealed cartridge bearings, 135mm of travel
Suspension Fork
Öhlins RXF 36, 6Fattie/29, Single-Tube design, air spring w/ adjustable 3rd chamber, adjustable low speed compression, adjustable rebound, 15x110mm thru-axle, 51mm offset, 150mm of travel
Rear Shock
RockShox Monarch RT3, Rx Trail Tune, AUTOSAG, rebound and 3-position compression adjust, 197x48mm
Drivetrain
Rear Derailleur
SRAM X01, 11-speed
Shift Levers
SRAM X1, trigger, 11-speed
Cassette
SRAM XG-1175, 11-speed, 10-42t
Crank
Custom alloy crankarms, Forged steel, 32T
Chain
KMC X11ET, 11-speed w/ Missing Link™
Pedals
Specialized Platform, Cr-Mo axle, PP-Body
Wheels
Tires
Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.8"
Brakes
Brakes
SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
Cockpit
Stem
Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise
Handlebar
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 27mm rise, 780mm, 31.8mm clamp
Grips
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
Seat
Saddle
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
Seatpost
Command Post IRcc, 12-position micro-height adjustable, alien head design, bottom mount cable routing, remote SRL lever, 30.9mm, S: 100mm, M/L/XL: 125mm of travel
Motor & Battery
Motor
Specialized 1.3, custom Rx Trail-tuned motor, 250W Nominal
Battery
Specialized M1-504, integrated Trail Display, ANT+/Bluetooth® module, 504Wh, Mission Control App connectivity
Charger
Custom charger, 42V4A w/ Rosenberger plug
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.47 mm | 1.47 mm | 1.43 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 699 mm | 727 mm | 757 mm | 792 mm |
| Rake | 51 mm | 51 mm | 50 mm | 51 mm |
| Trail | 102 mm | 102 mm | 103 mm | 102 mm |
| Stack | 594 mm | 599 mm | 626 mm | 645 mm |
| Reach | 382 mm | 407 mm | 426 mm | 452 mm |
| Top Tube Length | 550 mm | 577 mm | 607 mm | 640 mm |
| Seat Tube Angle | 73.3 ° | 73.6 ° | 73.9 ° | 74.2 ° |
| Seat Tube Length | 396 mm | 435 mm | 468 mm | 520 mm |
| Head Tube Angle | 66.1 ° | 66.1 ° | 66.1 ° | 66.1 ° |
| Head Tube Length | 100 mm | 130 mm | 150 mm | 95 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1153 mm | 1181 mm | 1211 mm | 1246 mm |
| Bottom Bracket Drop | 18 mm | 18 mm | 18 mm | 18 mm |
| Standover Height | 749 mm | 758 mm | 768 mm | 776 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Men’s Turbo Levo FSR Expert Carbon 6Fattie/29 is part of the Specialized E Turbo Levo model. Specialized released 86 e-bikes variations of this model so far. You can easily view all of the Specialized E Turbo Levo e-bikes models from 2018, here.
Model range prices
The most economical model, the Specialized Men’s Turbo Levo FSR Comp Carbon 6Fattie/29 2018 has a starting price of 6800$. Specialized Men’s S-Works Turbo Levo FSR Carbon 6Fattie/29 2018 on the other hand is the most expensive at 10000$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2018 and its price was 7800$. In conclusion, this e-bike price is 131.8% more expensive than the price of the average Trail e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This e-bike has the Öhlins fork installed. The fork’s travel is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is RockShox Monarch RT3, with a travel distance of 135mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on Men’s Turbo Levo FSR Expert Carbon 6Fattie/29 are the 27.5″ type. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Specialized Men’s Turbo Levo FSR Expert Carbon 6Fattie/29 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Specialized Men’s Turbo Levo FSR Expert Carbon 6Fattie/29 comes with a dropper post. Therefore, climbing or descending will be a breeze.
