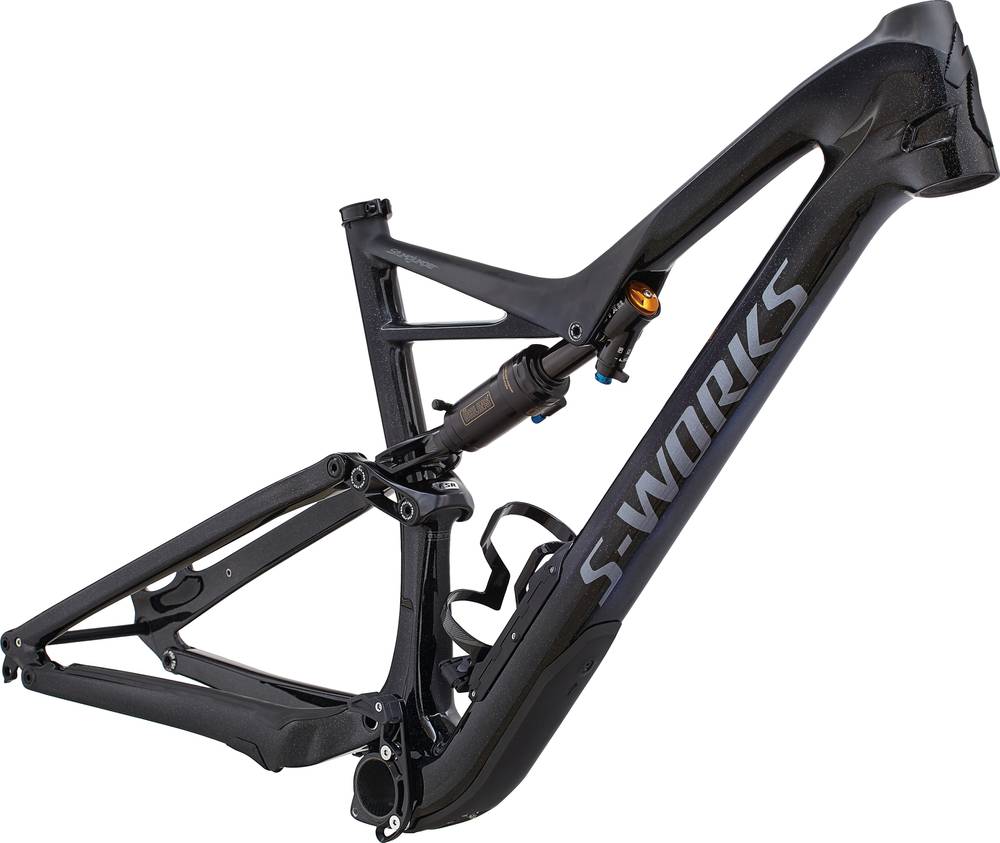

Specialized S-Works Stumpjumper Carbon 29/6Fattie Frame 2018
2018 Mountain
Estimate price |
3,500$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 29" -
Travel Rear 135mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
S-Works FACT 11m, full carbon chassis and rear end, 29/6Fattie Trail Geometry, SWAT™ Door integration, PF30 BB, fully enclosed internal cable routing, ManFu link, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm of travel
Rear Shock
Custom Öhlins STX, Single-Tube design, Rx Trail Tune, 3rd Chamber air spring technology, AUTOSAG, adjustable compression & rebound damping, 197x48mm
Drivetrain
Bottom Bracket
PF30, press-fit
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.5 mm | 1.5 mm | 1.46 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 687 mm | 714 mm | 744 mm | 777 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 96.5 mm | 96.5 mm | 96.5 mm | 96.5 mm |
| Stack | 614 mm | 614 mm | 642 mm | 660 mm |
| Reach | 382 mm | 409 mm | 427 mm | 453 mm |
| Top Tube Length | 559 mm | 586 mm | 612 mm | 644 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 396 mm | 430 mm | 468 mm | 523 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 125 mm | 145 mm | 95 mm | 95 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1118 mm | 1145 mm | 1175 mm | 1208 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 750 mm | 757 mm | 766 mm | 773 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
S-Works Stumpjumper Carbon 29/6Fattie Frame is a Specialized Stumpjumper model. Specialized released 352 frames variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Specialized Men’s S-Works Stumpjumper 29 Frame 2018 is the cheapest frame model and costs 3000$. Specialized S-Works Stumpjumper 27.5 Frame 2018 is the most expensive one and costs 3500$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail frames average price
If you want to purchase a solid Trail frame, it is important to know that the average cost is 1736$. However, even though the average price of a Trail frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Specialized S-Works Stumpjumper Carbon 29/6Fattie Frame price was 3500$. If we compare this with the average Trail frame cost we notice that the price is 101.61% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
S-Works Stumpjumper Carbon 29/6Fattie Frame components
Rear Shock
The S-Works Stumpjumper Carbon 29/6Fattie Frame has a rear shock with a travel of 135mm. The model Custom Öhlins STX is the one installed in this frame. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
Specialized S-Works Stumpjumper Carbon 29/6Fattie Frame frame has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
